Parking Assist Warning Indicator: Service and Repair

Front Parking Aid Speaker

Removal
1. Remove the floor console extension.

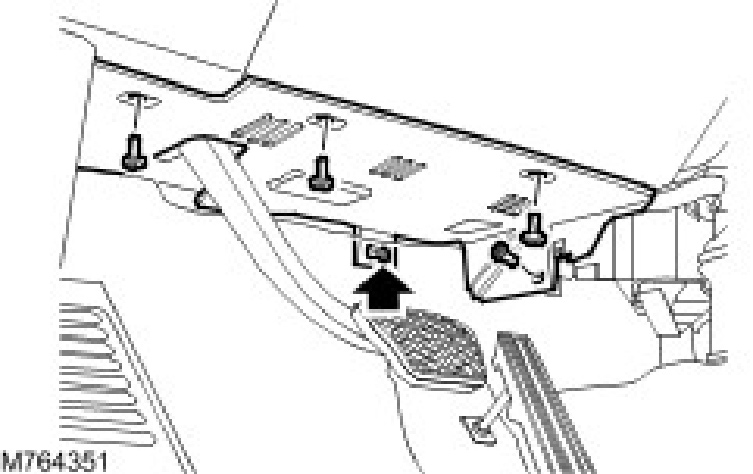

2. Release the driver side closing trim panel.
^ Remove the 4 screws.
^ Remove the clip.





3. Remove the driver side closing trim panel.
^ Disconnect the 3 electrical connectors.





4. Remove the front parking aid speaker.

Installation
1. Install the front parking aid speaker.
2. Connect the electrical connectors.
3. Install the driver side closing trim panel.
^ Install the screws.
^ Install the clip.
4. Install the floor console extension.
