Radio/Stereo: Service and Repair

Audio Unit

Service Repair No - 86.50.81

Removal

CAUTION: A new audio unit is supplied with a transit plate installed. The transit plate must be removed, before installing the audio unit

1. Remove the floor console upper panel.
2. Remove the instrument panel switch assembly.

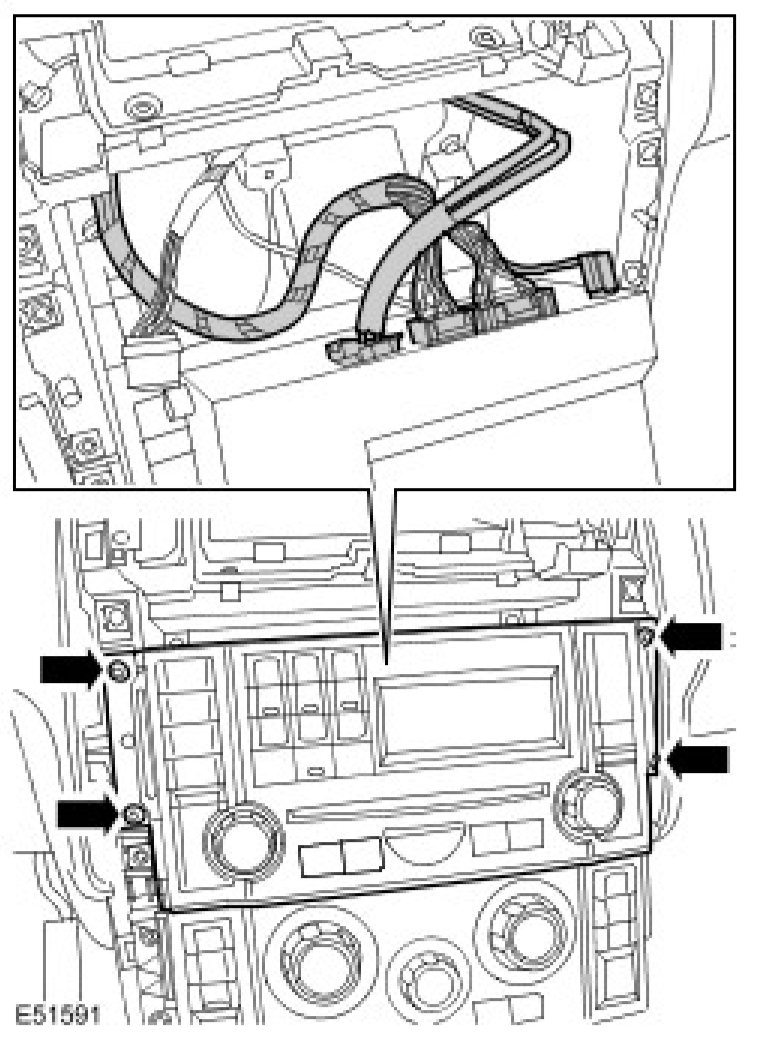

3. Remove the audio unit.
^ Remove the 4 Torx screws.
^ Disconnect the 2 electrical connectors.
^ Disconnect the fibre optic connector.
^ Disconnect the antenna cable.





Installation

CAUTION: A new audio unit is supplied with a transit plate installed. The transit plate must be removed, before installing the audio unit

1. Install the audio unit.
^ Attach the antenna cable.
^ Connect the fibre optic connector.
^ Connect the electrical connectors.
^ Tighten the Torx screws.
2. Install the instrument panel switch assembly.
3. Install the floor console upper panel.
4. Using T4, configure a new audio unit.
