Interior Mirror

Interior Mirror

Service Repair No - 76.10.51

Removal

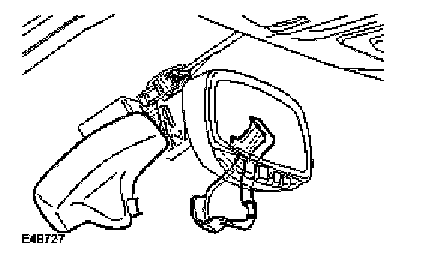

1. If installed, remove the interior mirror upper and lower covers.
^ Release the 2 clips.

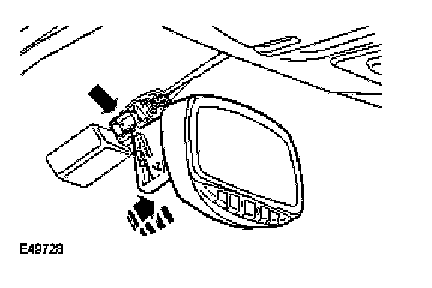

2. Vehicles with an auto-dimming interior mirror, remove the interior mirror.
^ Disconnect the electrical connector.

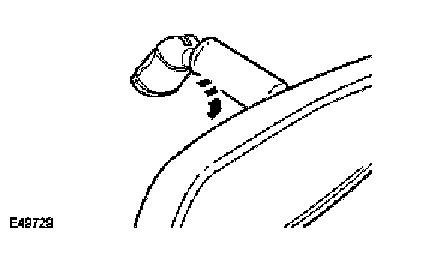

^ Rotate the mirror stem at its base to release from the windshield.

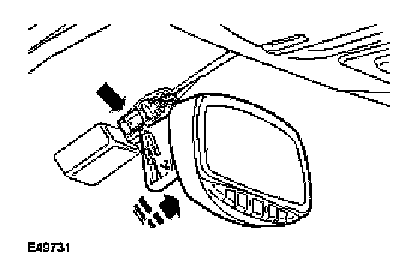

3. Vehicles without an auto-dimming interior mirror, remove the interior mirror.
^ Pull the mirror away from the windshield to release the clip.





Installation
1. Vehicles without an auto-dimming interior mirror, install the interior mirror.
^ Slide the mirror onto the boss from above to engage the clip.





2. Vehicles with an auto-dimming interior mirror, install the interior mirror.
^ Rotate the mirror stem at its base to secure to the windshield.
^ Connect the electrical connector.





3. Install the interior mirror covers.
^ Secure with the clips.
