Front Seat

Front Seat

Service Repair No - 78.10.44/99

Removal

1. Make the SRS system safe.
2. Release the front seat.
- Remove the bolt covers.
- Remove the 5 Torx bolts.

NOTE: The Torx bolts can be re-used.

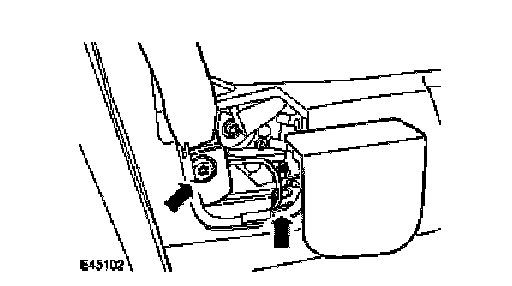

3. Release the safety belt lower anchor from the seat.
^ Remove the bolt cover.
^ Passenger side, disconnect the electrical connector.
^ Remove and discard the Torx bolt.





4. With assistance, remove the front seat.
^ Protect the rocker panel.
^ Remove the bolt.
^ Disconnect the 2 electrical connectors.
^ Release the 2 wiring harness clips.





Installation

1. With assistance, install the front seat.
^ Connect the electrical connectors.
^ Secure the wiring harness clips.
2. Attach the safety belt lower anchor to the seat.
^ Tighten the new Torx bolt to 40 Nm (30 lb.ft).
^ Passenger side, connect the electrical connector.
^ Install the bolt cover.
3. Secure the front seat.
^ Tighten the Torx bolts to 40 Nm (30 lb.ft).
^ Install the bolt covers.
4. Connect the battery ground cable.
