Rear Seat


Rear Seat

Service Repair No - 78.10.70 / 78.10.71


Removal

NOTE:
^ Left-hand shown, right-hand similar.
^ The Torx bolts can be re-used.

1. Release the rear seat.
^ Fold the LH seat cushion forward.
^ Remove the 7 Torx bolts.
^ Fold down the rear seat backrest.
^ Disconnect the electrical connector.

2. With assistance, remove the rear seat assembly.

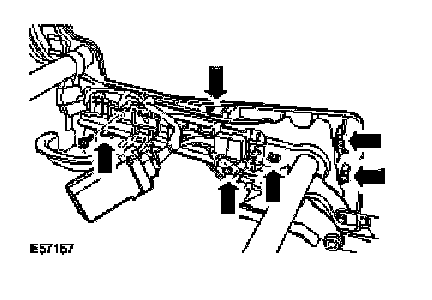

3. Remove the rear seat cushion side trim.
^ Release the seat heater control module.
^ Remove the Torx screw.
^ Release the 6 clips.

NOTE: Do not disassemble further if the component is removed for access only.

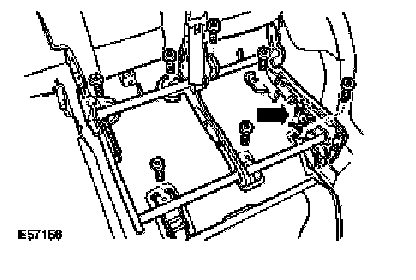

4. Remove the seat frame trim.
^ Release the 4 clips.





Installation

1. Install the seat frame trim.
^ Carefully secure the clips.
2. Install the rear seat cushion side trim.
^ Carefully secure the clips.
^ Fit and tighten the Torx screw.
^ Install the seat heater control module.
3. With assistance, install the rear seat assembly.
^ Position the seat on the dowels.
4. Secure the rear seat.
^ Return the seat backrest to the upright position.
^ Tighten the Torx bolts to 40 Nm (30 lb.ft).
^ Fold the seat cushion rearwards.
^ Connect and secure the electrical connector.
