Operation CHARM
: Car repair manuals for everyone.
Home
>>
Land Rover
>>
2008
>>
Range Rover Sport (LS) V8-4.2L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Combination Switch
>>
Switch-Steering Column-Lighting
Switch-Steering Column-Lighting

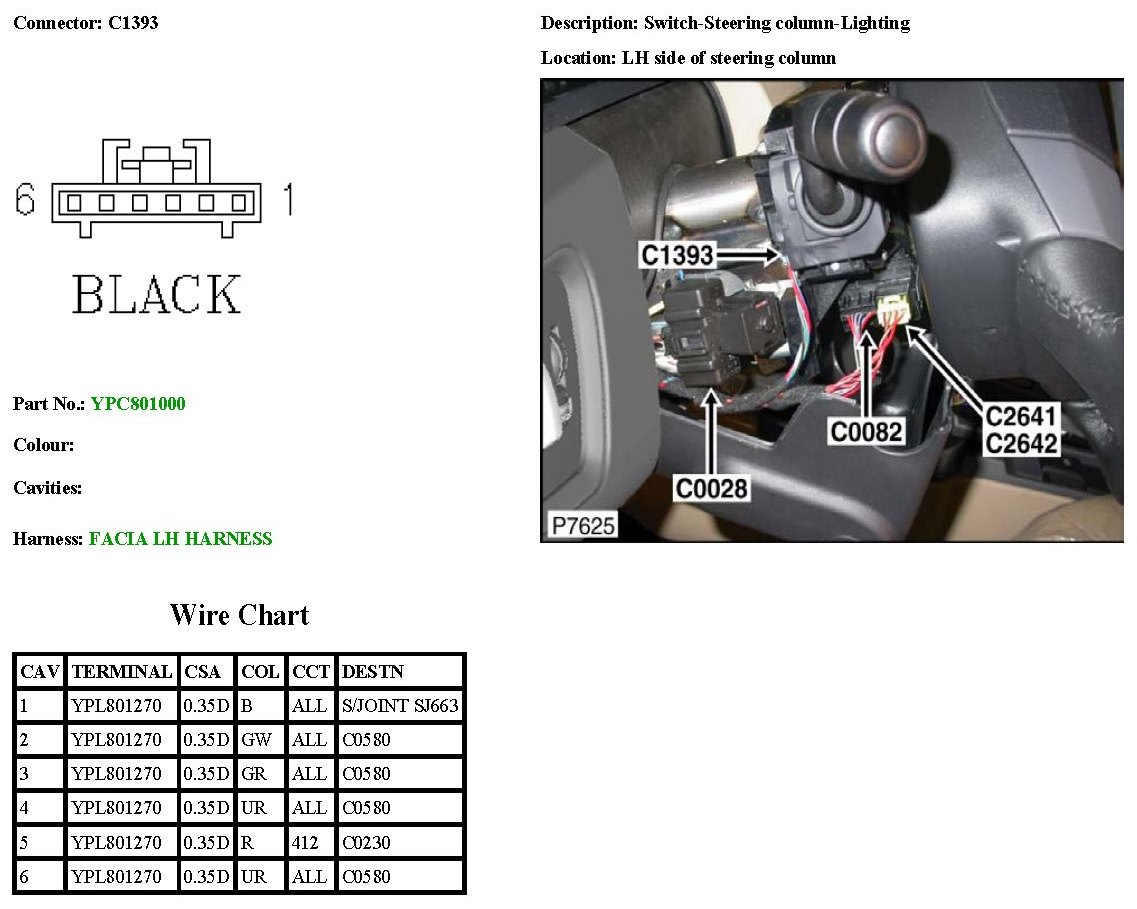

C1393:
