With High Intensity Discharge Headlamps

Headlamps - High Intensity Discharge

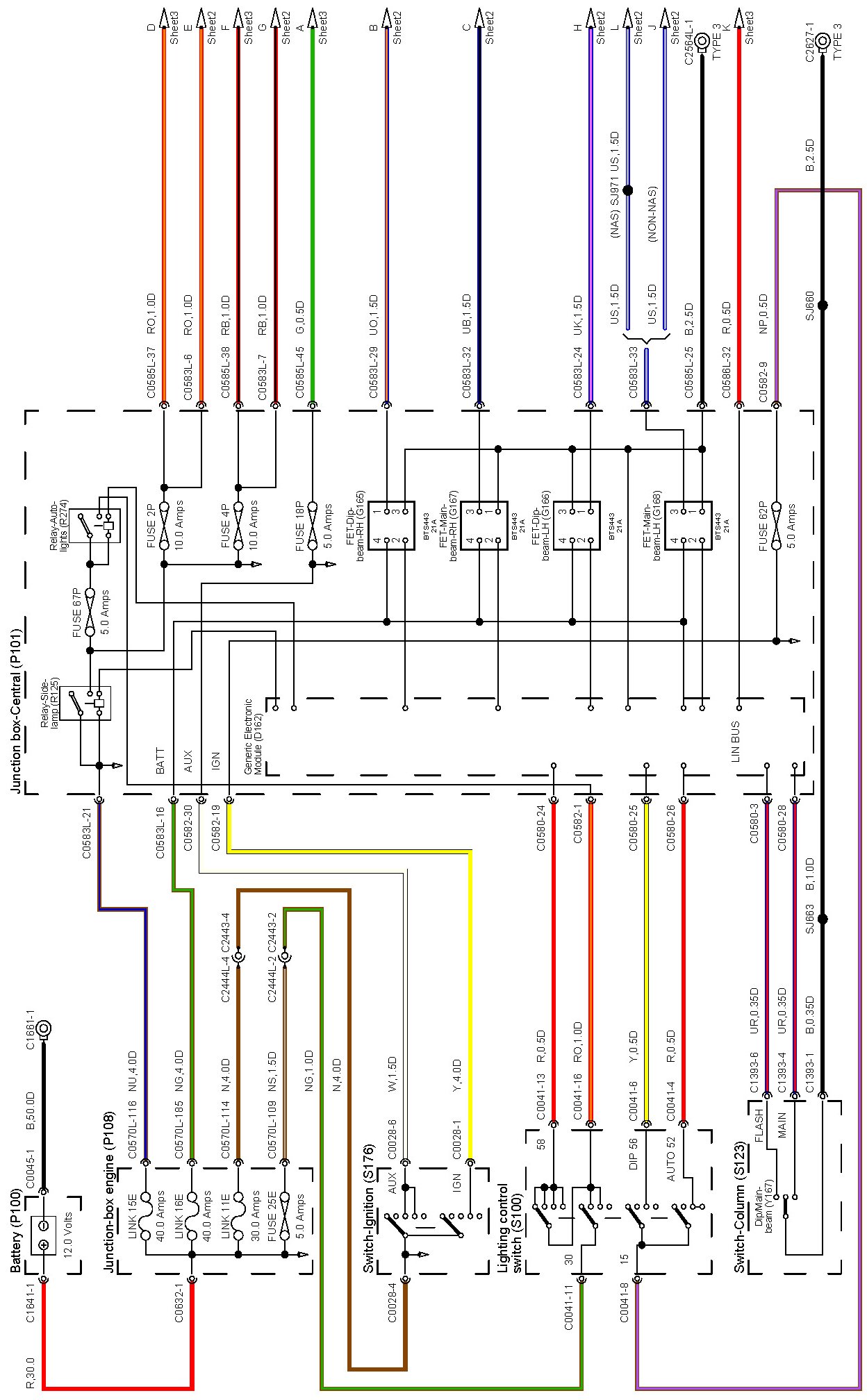

Headlamps - High Intensity Discharge (Sheet 1):

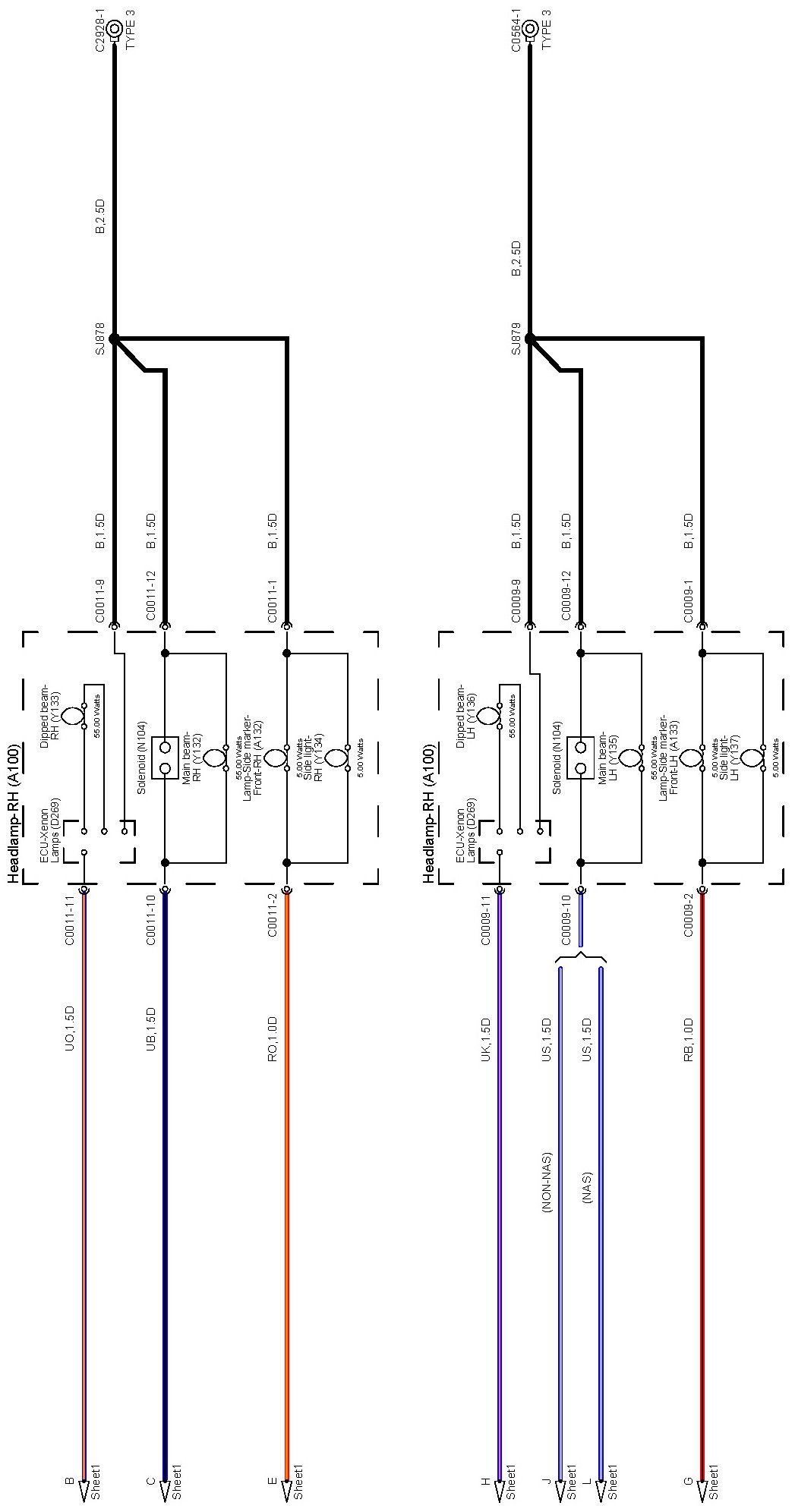

Headlamps - High Intensity Discharge (Sheet 2):

Headlamps - High Intensity Discharge (Sheet 3):

Locations: The location views for connectors and components depicted within these diagrams can bk found via the connector's base number (i.e. C0570) at Vehicle/Locations/Connectors. Locations

Connector Views: The connector pin out views for connectors depicted within these diagrams can bk found via the connector's base number (i.e. C0570) at Vehicle/Diagrams/Connector Views. Connector Views
