Bypass Valve and Actuator

Bypass Valve and Actuator

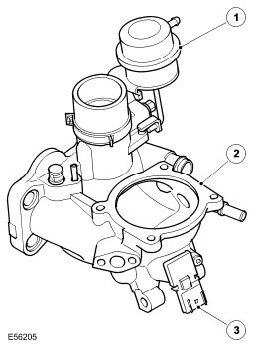

Bypass Valve Actuator





The bypass valve actuator is a diaphragm-operated actuator attached to the valve spindle of the bypass valve. A vacuum pipe connects the actuator to the induction elbow.

Intercooler Adapters





The intercooler adapters provide an interface between the intercoolers and the cylinder heads, and also locate the fuel rails and injectors. One-piece gaskets seal the joints between the intercoolers and the intercooler adapters, and between the intercooler adapters and the cylinder heads.

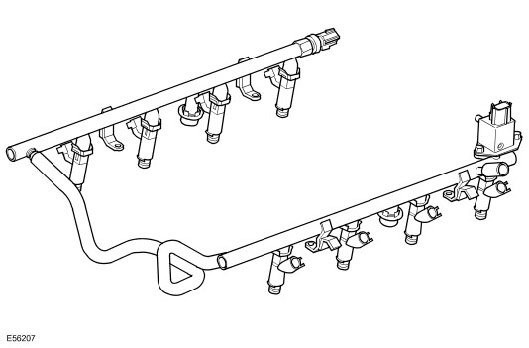

Fuel Rails





The fuel rails are installed on the intercooler adapters. A fuel crossover pipe connects the fuel rails together at the front of the engine.

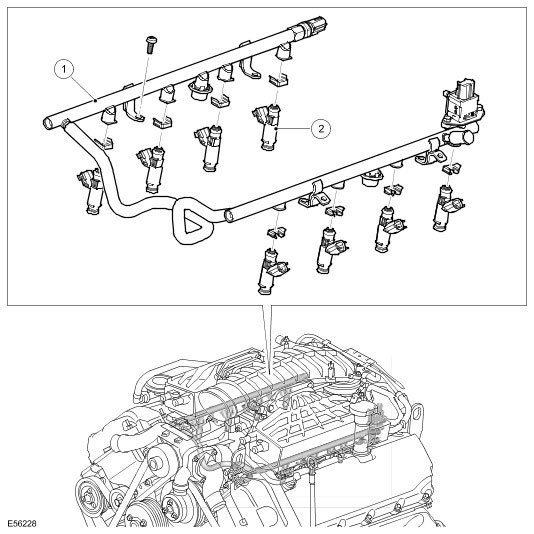

Fuel Injectors





Eight, top fed, 12-hole, fuel injectors are installed in the fuel rails and are held in position by spring clips. Two O-rings are installed between the injector mounts of the fuel rails and the related recesses in the intercooler adapters. The injectors are electromagnetic solenoid valves controlled by the ECM. The fuel jets from the injectors are directed onto the back of the intake valves.
