Instrument Panel Center Reinforcement

Instrument Panel Center Reinforcement

Service Repair No - 76.46.34

Removal

1. Remove the floor console.
2. Remove the audio unit.
3. Remove the heater function selector switch.
^ Remove the 4 Torx screws.
^ Disconnect the 4 electrical connectors.





4. Remove the transmission selector lever mount bracket.
^ Disconnect the electrical connector.
^ Remove the 8 bolts.

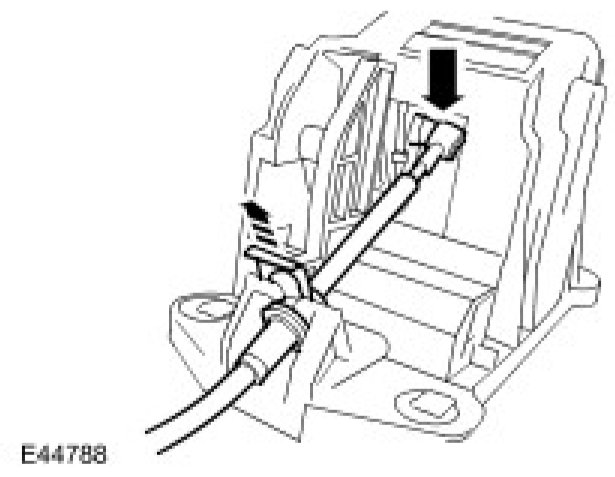

5. Remove the transmission selector lever.
^ Remove the clip.
^ Release the cable.





6. Remove the instrument panel center reinforcement trim panel.
^ Release the 3 clips.
^ Repeat the above procedure for the other side.

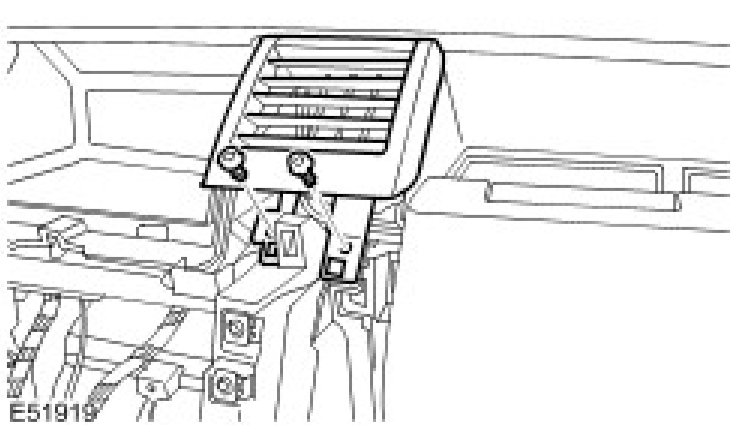

7. Remove the center face level vent.
^ Remove the 2 Torx screws.
^ Repeat the above procedure for the other side.





8. Release the instrument panel center reinforcement.
^ Remove the 14 Torx screws.
9. Remove the instrument panel center reinforcement.
^ Release the 2 clips.
^ Release the 2 wiring harness clips.





NOTE: Do not disassemble further if the component is removed for access only.

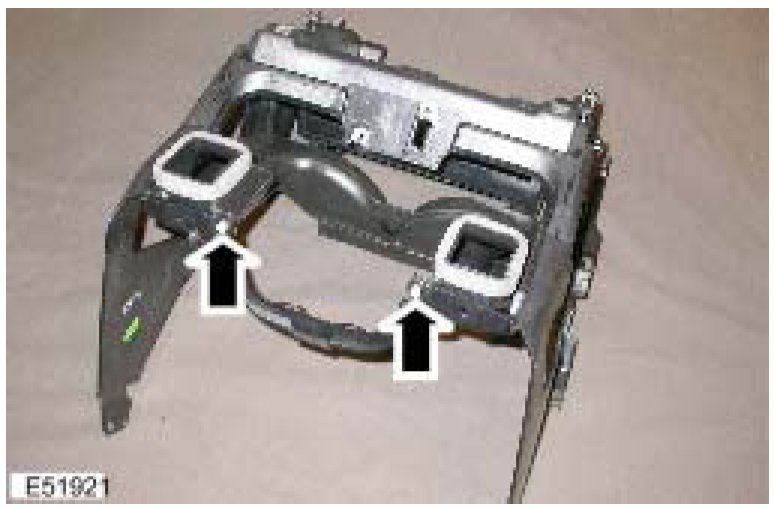

10. Remove the heater duct.
^ Remove the 2 clips.





Installation
1. Attach the heater duct.
^ Install the clips.
2. Install the instrument panel center reinforcement.
^ Install the Torx screws. Secure the clips.
^ Secure the wiring harnesses.
3. Install the center face level vents.
^ Tighten the Torx screws.
4. Install the instrument panel center reinforcement trim panels.
^ Secure the clips.
5. Install the transmission selector lever.
^ Attach the cable.
^ Install the clip.
6. Install the transmission selector lever mount bracket.
^ Tighten the bolts to 10 Nm (7 lb.ft).
^ Connect the electrical connector.
7. Install the function selector switch.
^ Connect the electrical connectors.
^ Tighten the Torx screws.
8. Install the audio unit.
9. Install the floor console.
