Instrument Panel Passenger Side Reinforcement

Instrument Panel Passenger Side Reinforcement

Service Repair No - 76.46.32

Removal

1. Remove the instrument panel center reinforcement.
2. Remove the glove compartment.
3. Remove the passenger side closing trim panel.
^ Release the clip.
^ Remove the 2 screws.
^ Disconnect the electrical connector.





4. Remove the passenger side footwell duct.
^ Remove the clip.





5. Remove the stowage compartment side trim panel.
^ Release the 4 clips.

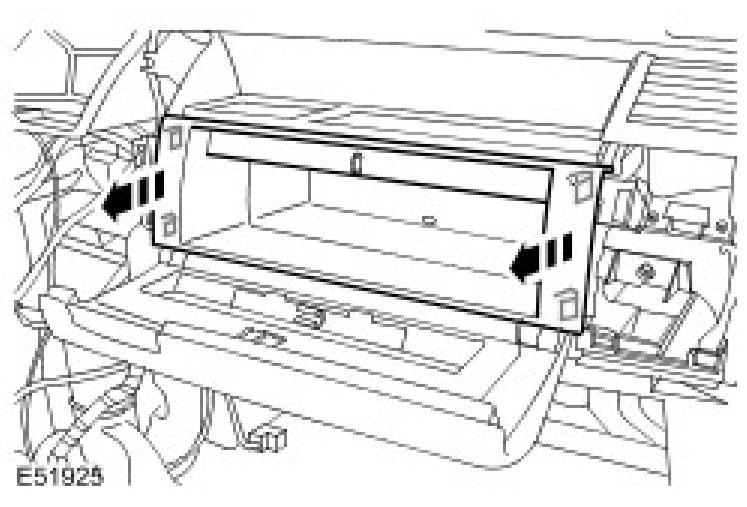

6. Remove the stowage compartment tray.
^ Open the stowage compartment lid.
^ Release the 4 clips.

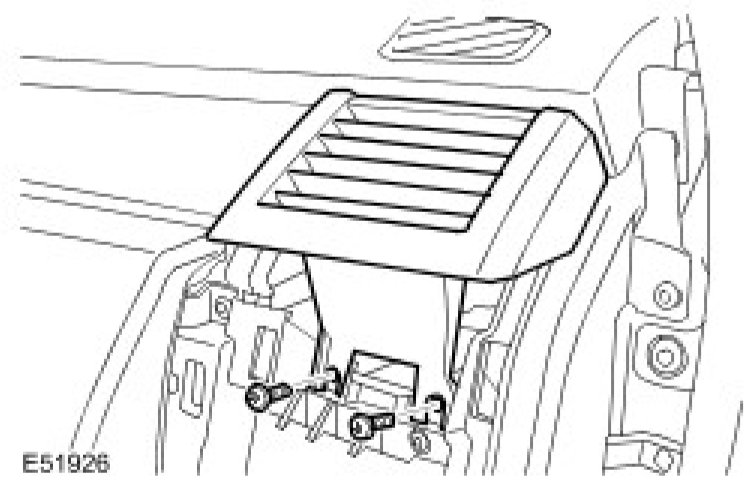

7. Remove the passenger side face level vent.
^ Remove the 2 Torx screws.





8. Remove the instrument panel passenger side reinforcement.
^ Remove the 11 Torx screws.
^ Disconnect the electrical connector.





NOTE: Do not disassemble further if the component is removed for access only.

9. Remove the glove compartment lamp.





10. Remove the glove compartment damper.
^ Remove the Torx screw.





NOTE: Note the position of the hinge pin and spring prior to removal.

11. Remove the stowage compartment lid.
^ Remove the 2 hinge pins.
^ Release the 2 hinge springs.
^ Remove the Torx screw and remove the damper.

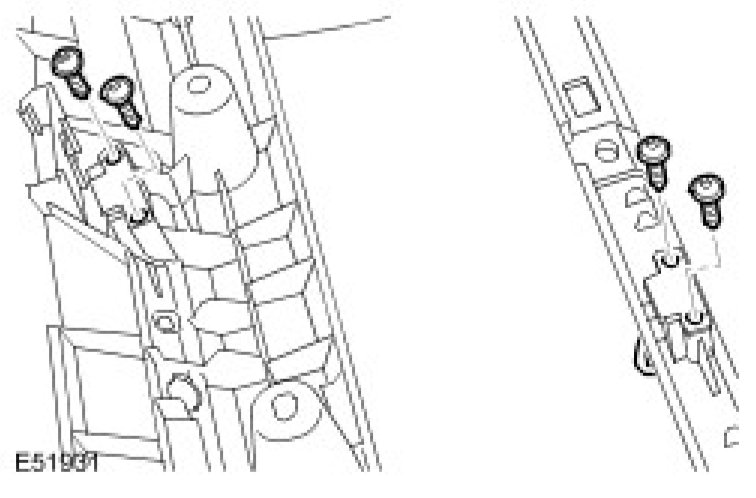

12. Remove the glove and stowage compartment strikers.
^ Remove the 4 Torx screws.





Installation
1. Install the glove compartment damper.
^ Tighten the Torx screw.
2. Install the stowage compartment lid.
^ Install the damper and tighten the Torx screw.
^ Attach the hinge springs.
^ Install the hinge springs.
3. Install the glove and stowage compartment strikers.
^ Tighten the screws.
4. Install the glove compartment lamp.
5. Install the instrument panel passenger side reinforcement.
^ Connect the electrical connector.
^ Tighten the Torx screws.
6. Install the face level vent.
^ Tighten the Torx screws.
7. Install the stowage compartment tray.
^ Secure the clips.
^ Close the stowage compartment lid.
8. Install the stowage compartment side trim panel.
^ Secure the clips.
9. Install the passenger side footwell duct.
^ Install the clip.
10. Install the passenger side closing trim panel.
^ Install the interior lamp.
^ Connect the electrical connector.
^ Secure the clip.
11. Install the glove compartment.
12. Install the instrument panel center reinforcement.
