Part 2
Exterior Lighting
Cornering Lamp
NOTE: The cornering lamps are not fitted to NAS vehicles
The cornering lamps are an optional feature designed to illuminate the direction of travel when cornering at low speeds. The design of the lens projects a spread of light from the vehicle at approximately 45 degrees to the vehicle axis.
The cornering lamp is incorporated into the outer part of the headlamp assembly and shares the same housing and reflector as the side lamp.
The cornering lamp uses a 35W Halogen H8 bulb which is permanently located in an integral holder which is connected on the headlamp housing. The holder is located in an aperture in the headlamp housing and rotated to lock. The bulb is accessible via a removable cover on the base of the headlamp housing.
The cornering lamps are controlled by the left hand steering column multifunction switch with the lighting control switch in the headlamp position and the ignition switch in position II.
The cornering lamps are supplied power via the ignition switch to ensure that they do not function with the headlamp delay feature. The cornering lamps are deactivated if the vehicle speed exceeds 25 mph (40 km/h).
Only one cornering lamp will illuminate at any one time. If the left hand turn signal indicators are selected on, the left hand cornering lamp will be illuminated and visa versa, providing the vehicle speed and lighting control switch positions are correct.
Adaptive front lighting system (AFS)
Xenon Headlamp Assembly with AFS
The AFS is a system to improve driver visibility under differing driving conditions. AFS provides a larger visible area which is illuminated when cornering by adjusting the position of the beam distribution on the road. Horizontal adjustment is made automatically to the most suitable orientation for the driving conditions using steering angle and information from other vehicle sensors.
AFS is only available with xenon headlamps and also includes the dynamic headlamp leveling system described in the 'Headlamp Leveling' section of this document. The bi-xenon module within the headlamp is controlled by actuator motors which rotate the projector module on its vertical and horizontal axes to adjust the beam output to suit the cornering conditions and vehicle inclination. Only the bi-xenon lamp projector module swivels, the halogen high beam lamp unit remains static.
The AFS is controlled by an AFS control module which is located at the bottom of the 'A' pillar, behind the CJB. The AFS control module is connected to and controls an AFS power module located on the base of each headlamp. Signals from the AFS control module are processed by the AFS power module which powers stepper motors to adjust the vertical and horizontal alignment of the xenon projector module. The AFS power module also controls and regulates the operation of the static bending lamp (if fitted) which is requested by the AFS control module but controlled by the CJB.
AFS Concept
AFS Control Module
The AFS control module is a dual functionality unit which also incorporates software to control the dynamic headlamp leveling. The AFS control module is connected to the high speed CAN bus and receives inputs from other vehicle systems on the status of the following parameters:
^ Steering angle
^ Vehicle speed
^ Headlamp status
^ Engine running
^ Reverse gear selected
^ Automatic lighting on.
The AFS will only operate when the AFS control module receives an engine running signal on the CAN bus. When the engine running signal is received the AFS control module performs an initialisation routine.
The AFS will also function when the lighting control switch is in the AUTO position and the AFS control module receives a lights on signal from the rain/light sensor and an engine running signal.
The AFS control module then monitors the inputs from the other vehicle systems to control the AFS functionality according to cornering angles and vehicle speed.
The AFS control module is connected to each AFS power module on a private LIN bus. The power modules read operating values supplied from the AFS control module and control the output drivers for the stepper motor actuators inside the headlamp assembly.
AFS Control Module Connector C2193 Pin Details
AFS Operation
The AFS controls the swiveling angle of each projector module using speed and steering angle signals. The angles of each projector module differ to give the correct spread of light, e.g. when turning left, the left hand projector module will have a greater swiveling angle than the right hand projector module.

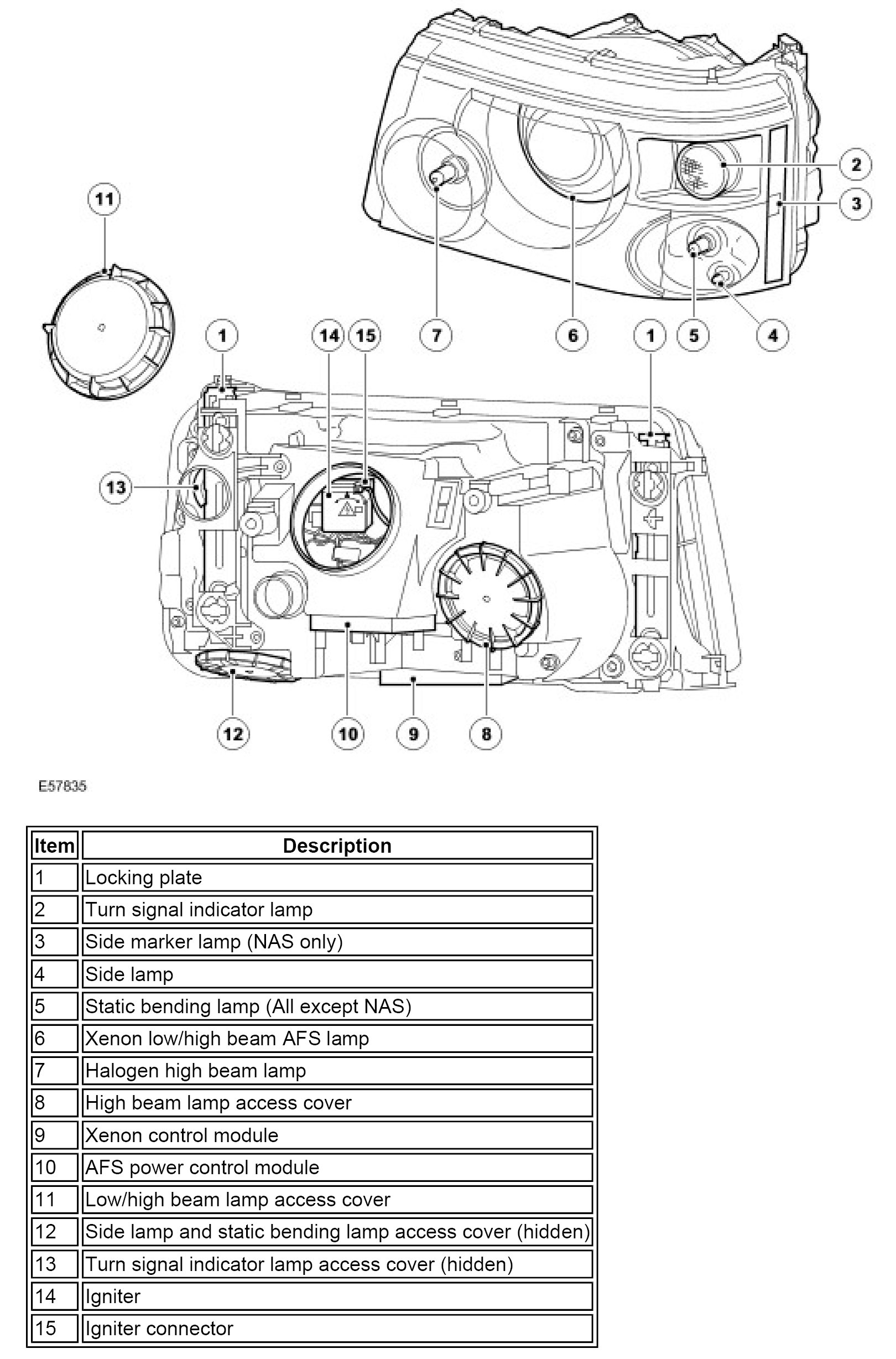

Xenon Headlamp Assembly with AFS Construction
The AFS xenon headlamp construction is similar to the non-AFS xenon headlamp assembly. The AFS assembly contains an additional carrier frame which provides the location for the AFS actuators. The remaining lamps are as described previously for the xenon headlamp assembly. The functionality of the static bending lamp on the AFS headlamp is different from the functionality of the cornering lamp on the xenon headlamp.
The carrier frame is attached to the AFS vertical actuator. The projector module has a central pivot point which allows the module to move horizontally in response to operation of the AFS horizontal actuator.
The AFS actuators are bi-polar (2 phase) dc stepper motors which are driven by a power output from the AFS power module. Each stepper motor receives its position information from the AFS control module via the applicable AFS power module. When the actuators are powered to their requested positions, a holding current is applied to maintain the actuator position.
The actuators do not supply a positional feedback signal to the AFS control module. Each stepper motor requires referencing each time the AFS system becomes active. When the AFS system is active, each vertical actuator is driven in the low beam position and each horizontal actuator is driven to an inboard position until a mechanical stop in the actuator is reached. Once the stop is reached a step counter in the AFS control module is set to zero and the actuator is then powered to the operating position as determined by the AFS control module software.
The AFS control module receives front and rear suspension height data to provide dynamic headlamp leveling adjustment via the vertical actuator motor. The AFS control module also receives vehicle speed signals from the ABS module to adjust the projector module vertically to increase the beam range as the vehicle speed increases.
Initialisation Procedure
When the AFS control module receives an ignition on signal, the control module performs the initialisation procedure which ensures that the headlamps are correctly aligned on both their vertical and horizontal axes. The headlamp leveling initialisation takes less than 3 seconds to complete.
The headlamp leveling motors are powered from their current position, which can be either the upper or lower limit or somewhere in between, to their lower position and then back to the 0 degrees position.
The AFS swivel initialisation starts less than 1 second after the headlamp leveling initialisation is activated to ensure that the headlamps are at or below the 0 degree position in the vertical axis, thus preventing glare to oncoming vehicles. The AFS swivel initialisation is completed in less than 2.5 seconds. The LH and RH AFS actuator motors are powered from the 0 degree position to their fully inboard position, then to their fully outboard position and then back to the 0 degree position.
Failure Mode
In the event of a failure of the AFS system, a warning indicator in the instrument cluster is illuminated to warn the driver. The AFS warning indicator illuminates when the ignition switch is in position (II) and will flash continuously until the fault is rectified. The AFS warning indicator will also be illuminated if a failure of the steering angle sensor or the vehicle speed signal is detected.
Illumination of the AFS warning indicator does not necessarily mean that there is a fault with the AFS system. The fault may be caused by a failure of another system preventing the AFS system operating correctly.
The AFS control module performs a diagnostic routine every time AFS is requested. If any fault is found, the AFS control module will suspend the operation of the AFS function.
If the AFS leveling system has failed with the xenon projector module in a position other than the correct straight ahead position, the AFS control module will attempt to drive the projector module to a position a small amount lower than the standard position. If the swivel function has failed, the AFS control module will lower the projector module using the leveling actuator motors to a position much lower than standard to prevent excess glare to oncoming vehicles.
The AFS control module software can detect an internal failure of the control module control circuits. The control module will power the projector modules to the zero position and prevent further operation.
Faults can be investigated by interrogating the AFS control module using T4 to check for fault codes.
Static Bending Lamps
NOTE: The static bending lamps are not fitted to NAS vehicles
The static bending lamps, which are a standard feature on AFS headlamps, are designed to illuminate the direction of travel when cornering at low speeds. The static bending lamp functionality, which controlled by the CJB, is unique to vehicles with AFS headlamps and operates using inputs from the steering angle sensor.
The static bending lamp is incorporated into the outer part of the headlamp assembly and shares the same housing and reflector as the side lamp. The design of the lens projects a spread of light from the vehicle at approximately 45 degrees to the vehicle axis.
The static bending lamp uses a 35W Halogen H8 bulb which locates in a holder which is connected via wires to the main connector on the headlamp housing. The holder is located in an aperture in the headlamp housing and rotated to lock. The bulb is accessible via a removable cover at the rear of the headlamp housing.
AFS Control
The static bending lamps operate with a steering angle sensor CAN signal which is received by the AFS control module and the CJB. The AFS control module sends a static bending lamp on request to the CJB which activates the static bending lamp bulb.
When the operation parameters of the lamp are reached, the CJB fades the static bending lamp bulb on using a PWM voltage over a period of approximately 2 seconds. When the lamp is switched off, the CJB fades the bulb off by decreasing the PWM voltage in a linear manner depending on steering angle and vehicle speed.
