Home >> Land Rover >> 2008 >> Range Rover Sport (LS) V8-4.2L SC >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Wiring Diagram Index

Wiring Diagram Index

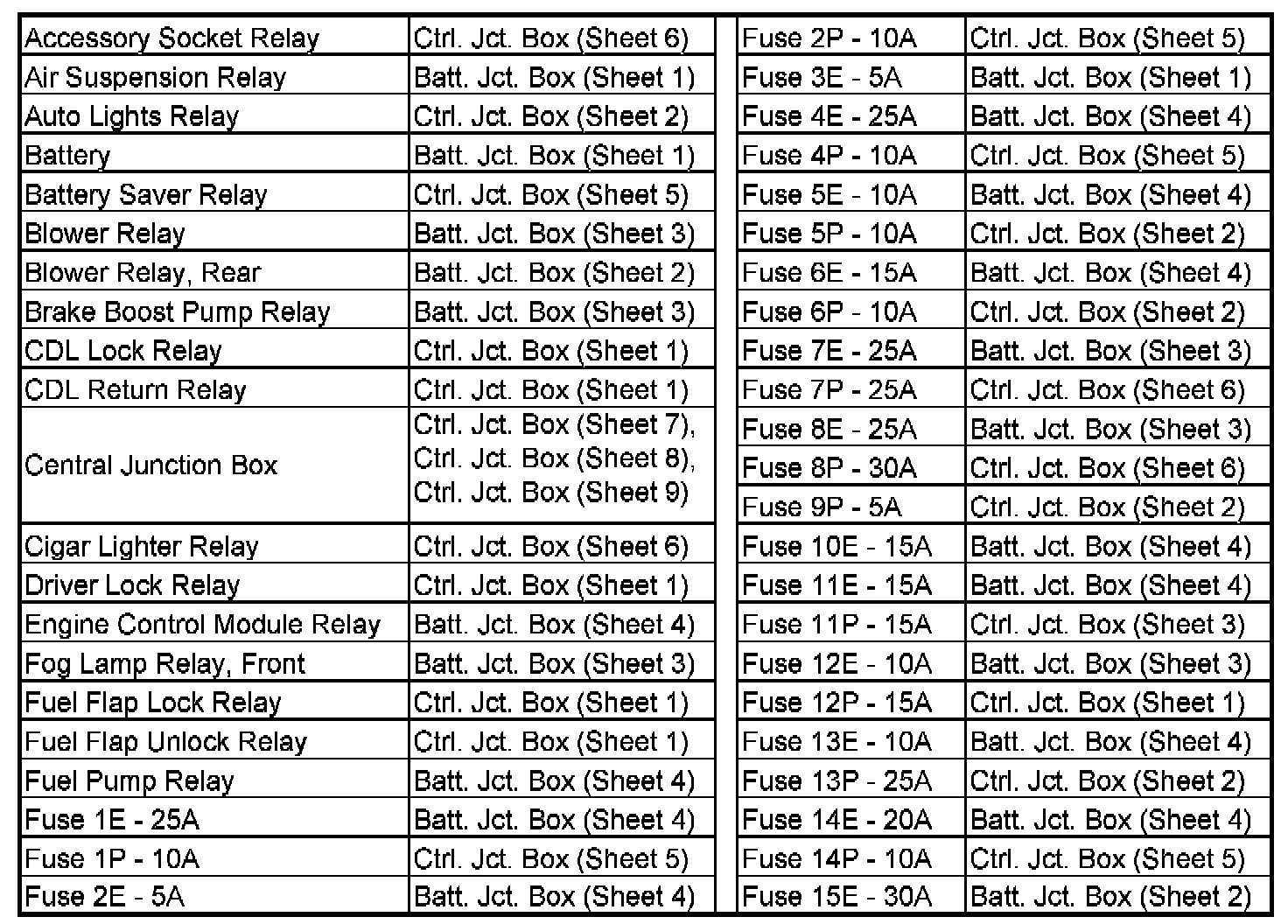

Ac-Fu:

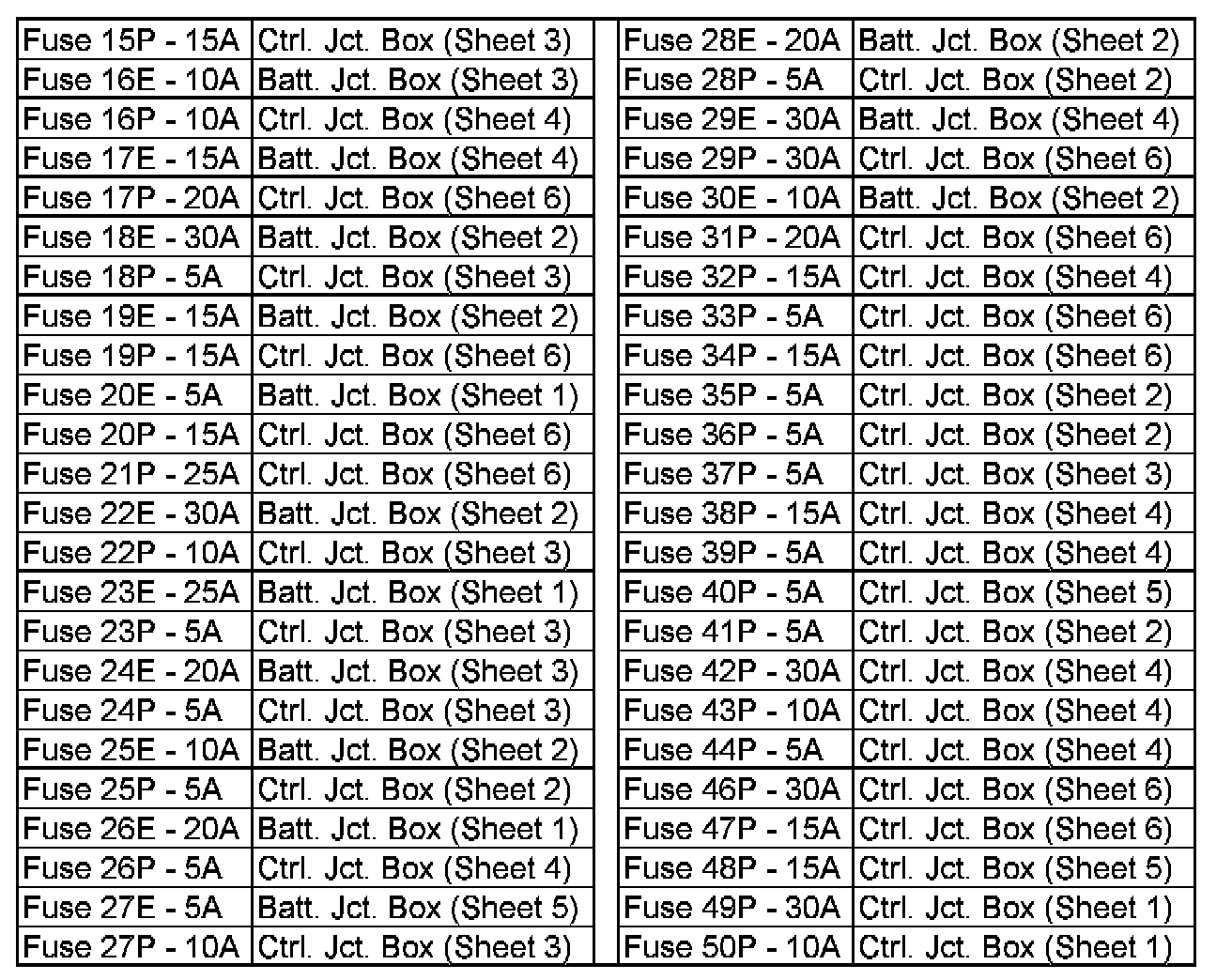

Fuse 15P-Fuse 50P:

Fuse 51P-Fusible Link 13E:

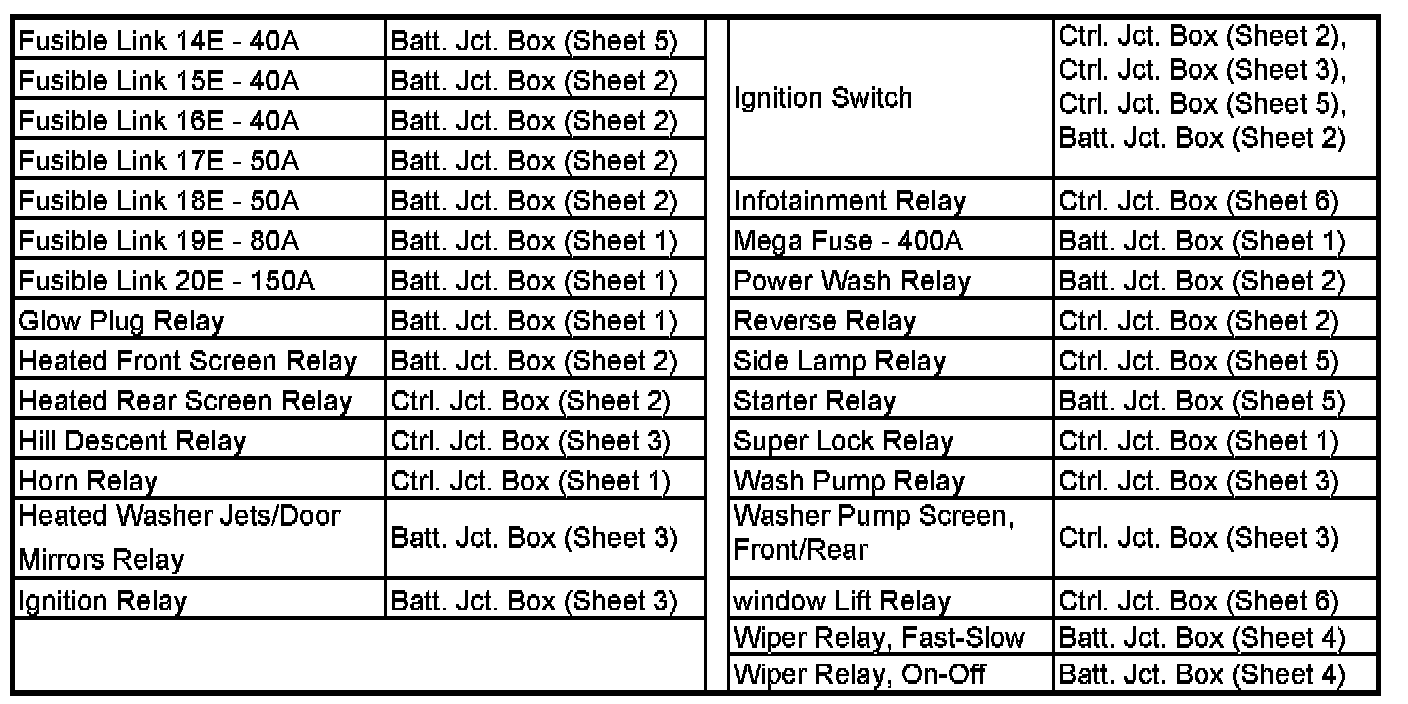

Fusible Link 14E-Wiper Relay:
