Operation CHARM
: Car repair manuals for everyone.
Home
>>
Land Rover
>>
2008
>>
Range Rover Sport (LS) V8-4.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Emergency Contact Module
Emergency Contact Module
C0647L (Part 1):
C0647L (Part 2):

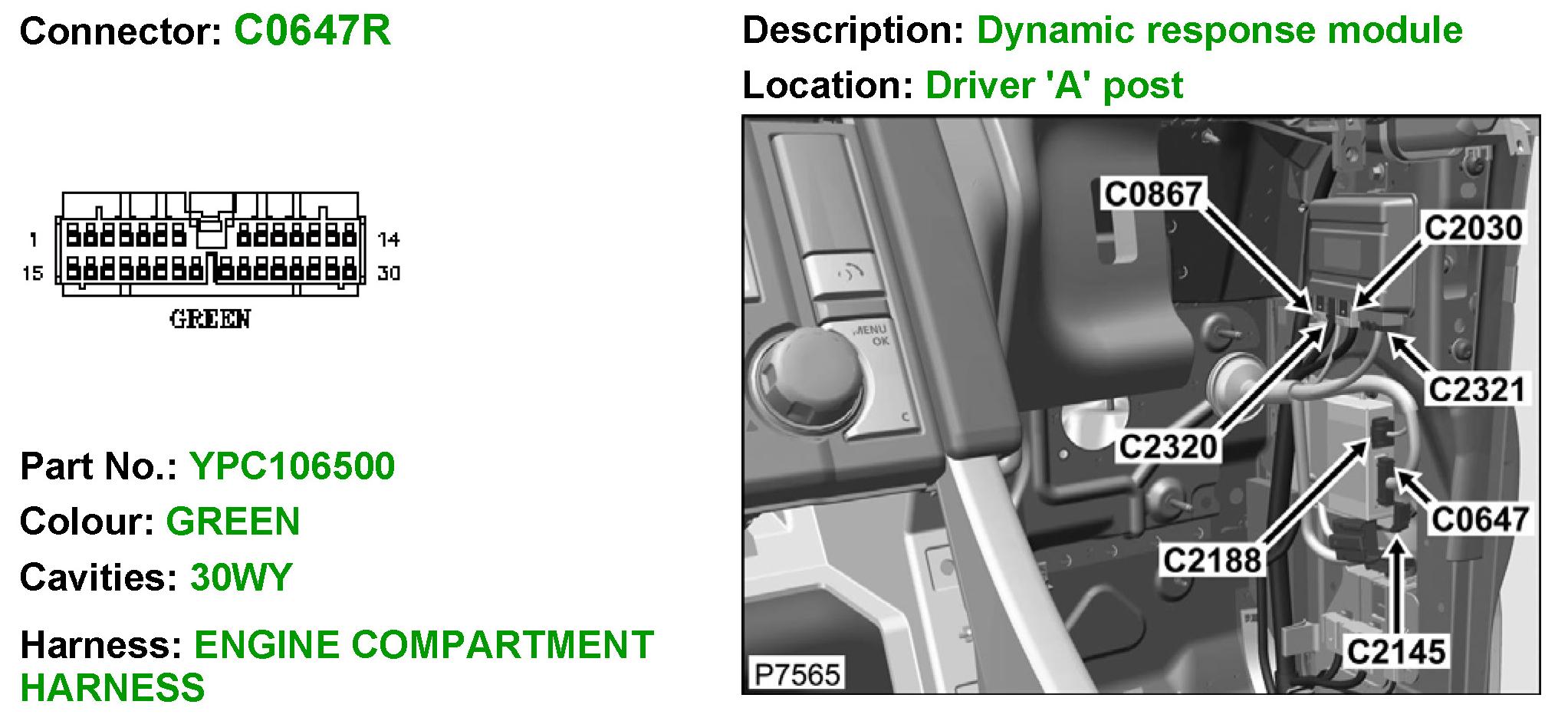

C0647R (Part 1):
C0647R (Part 2):

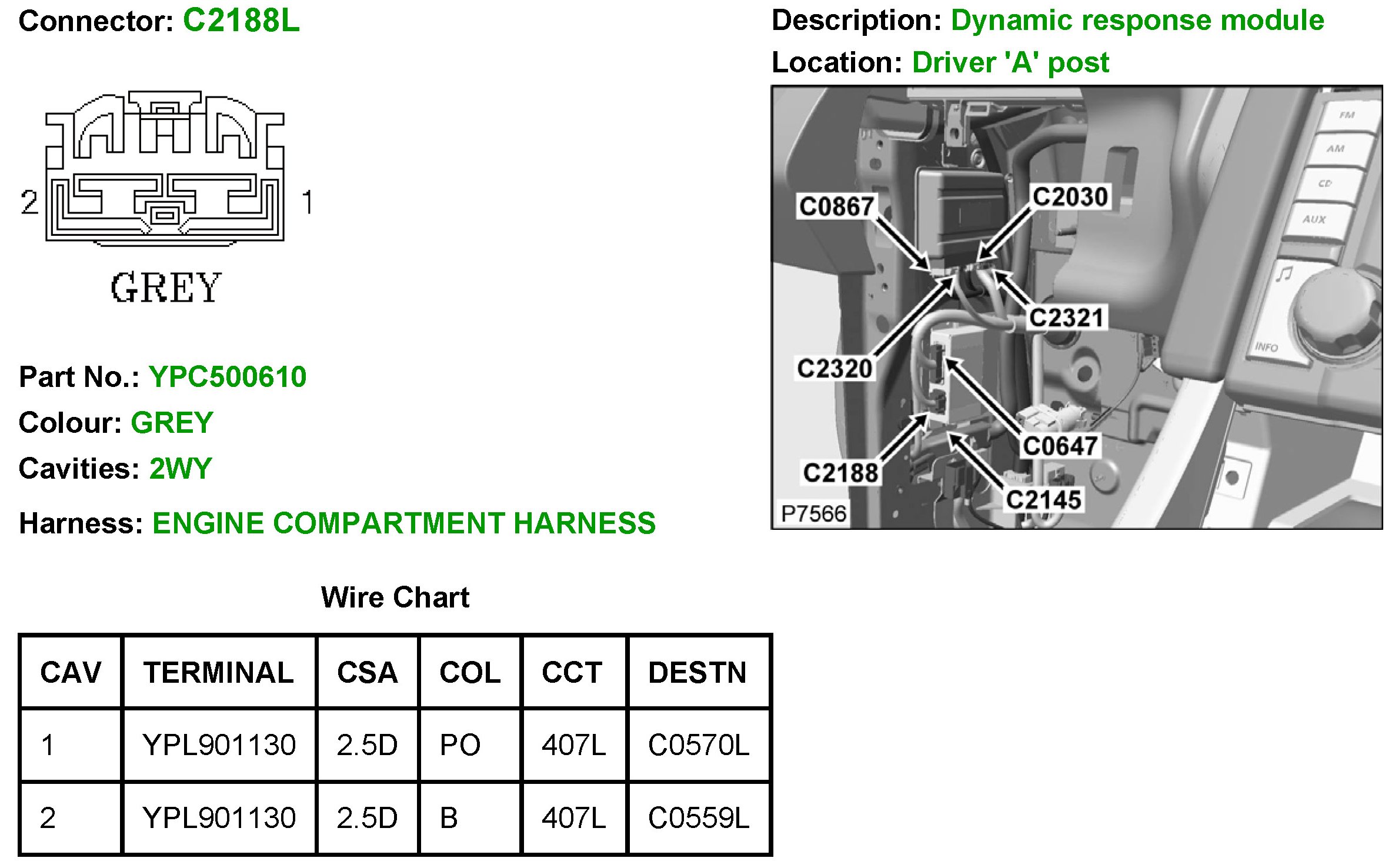

C2188L:

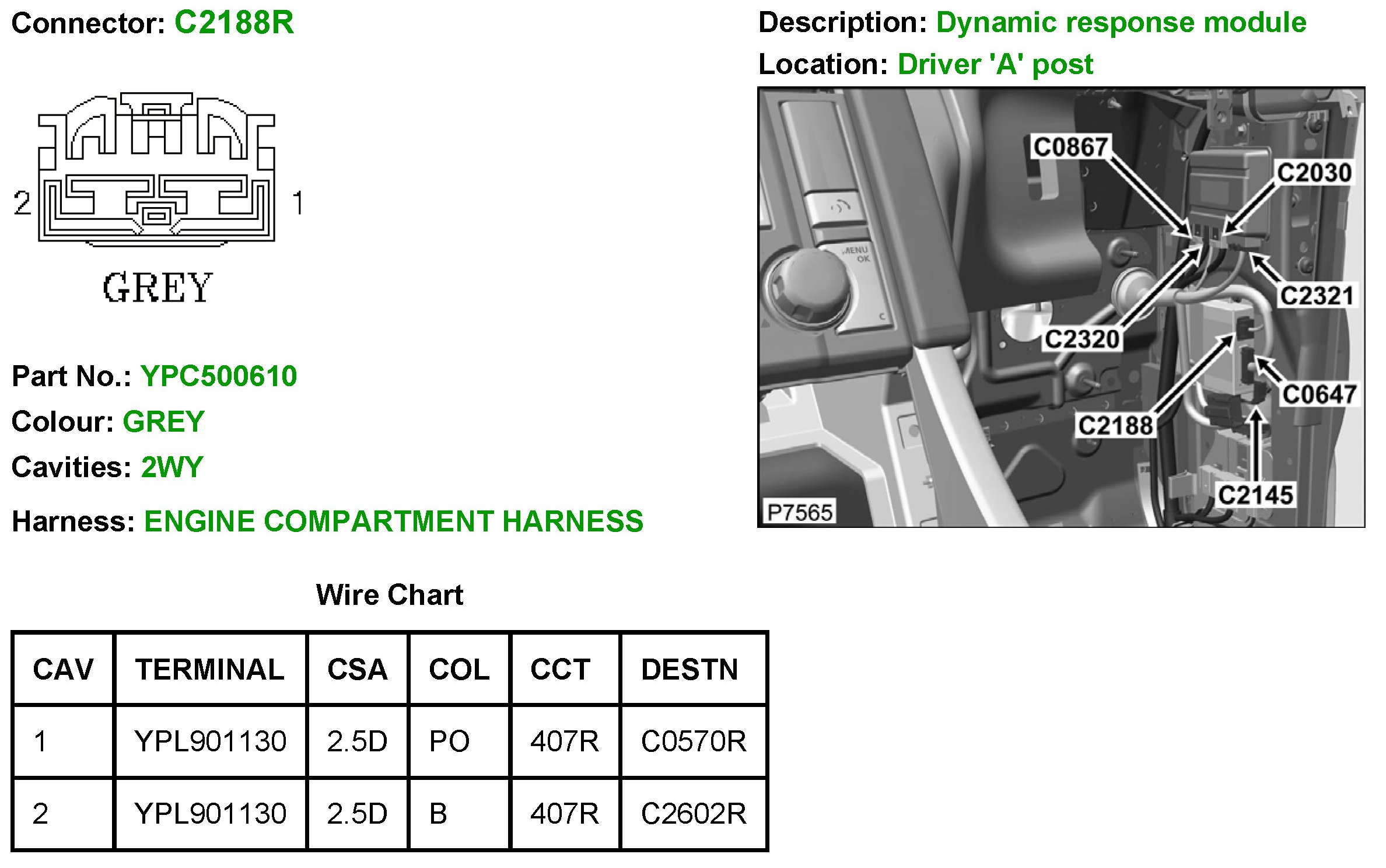

C2188R:
