Home >> Land Rover >> 2008 >> Range Rover Sport (LS) V8-4.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Navigation Module

Navigation Module

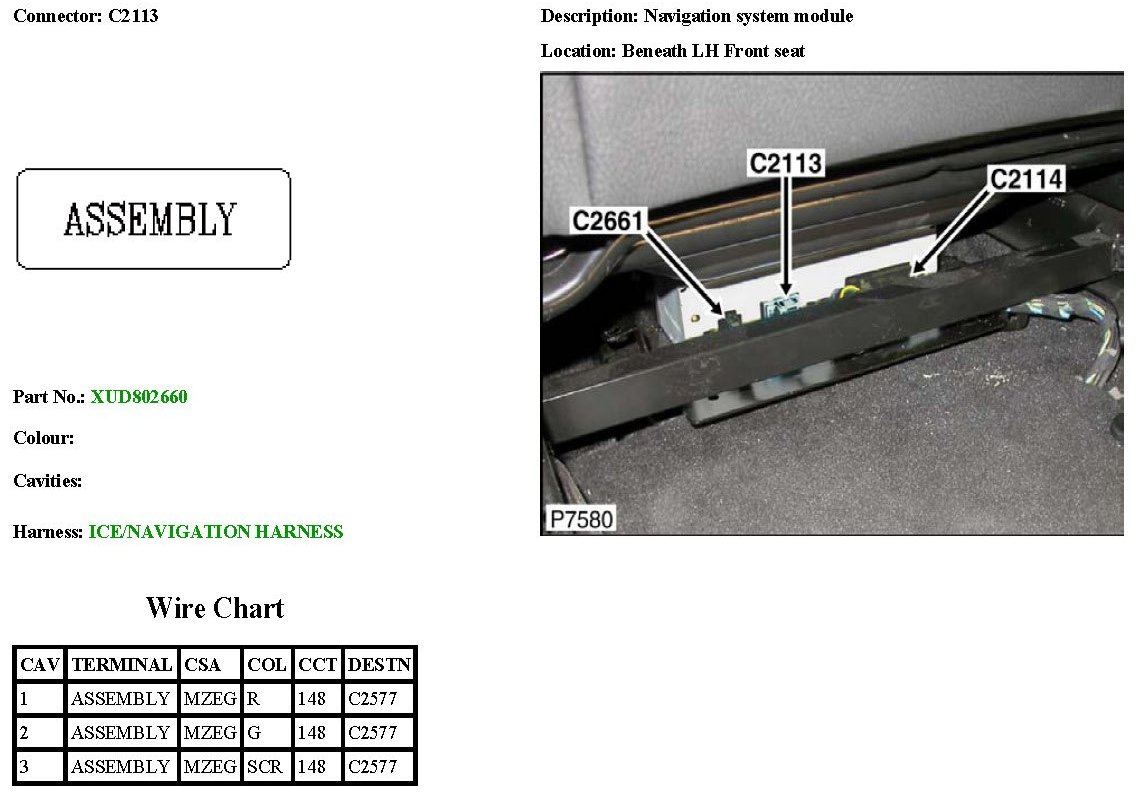

C2113:



C2113:

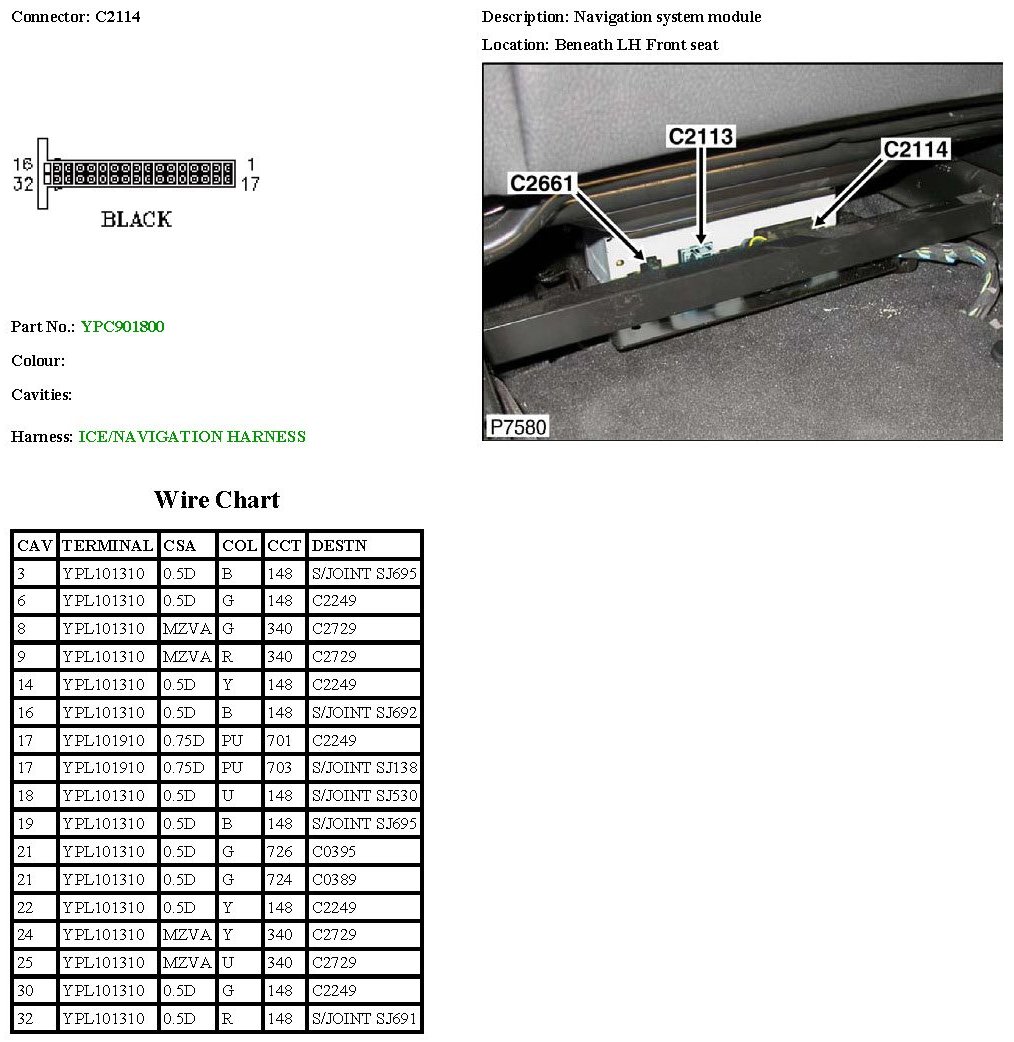

C2114:



C2114:

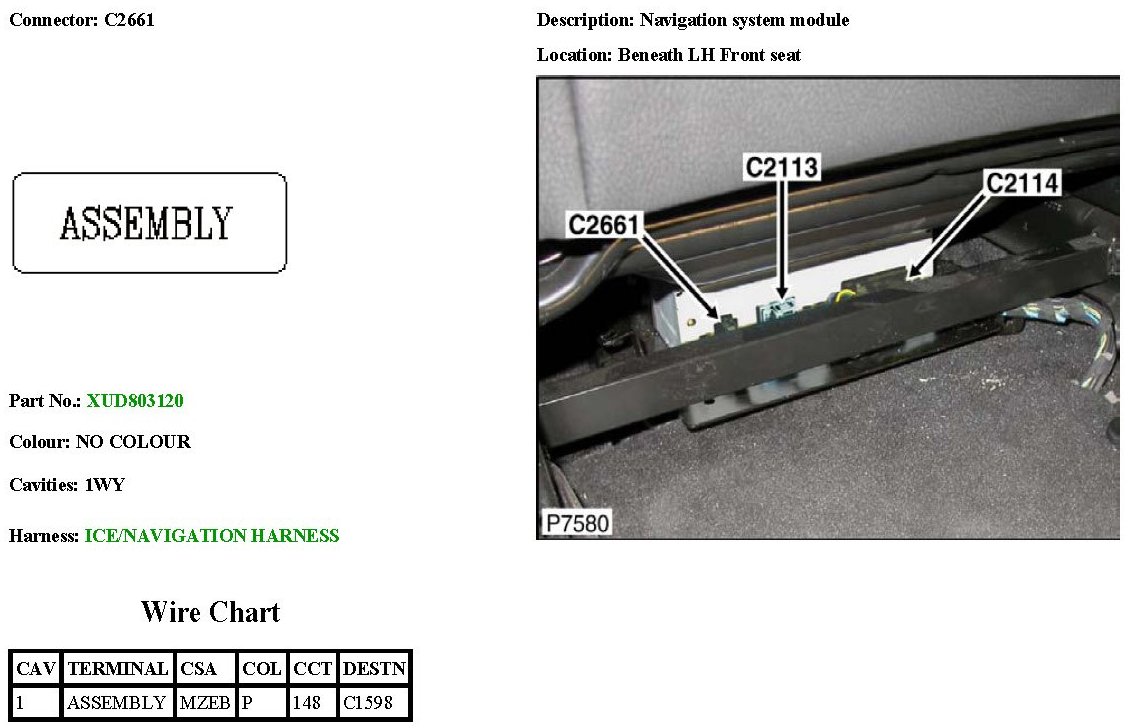

C2661:



C2661:
