Ambient Temperature Sensor / Switch HVAC: Service and Repair

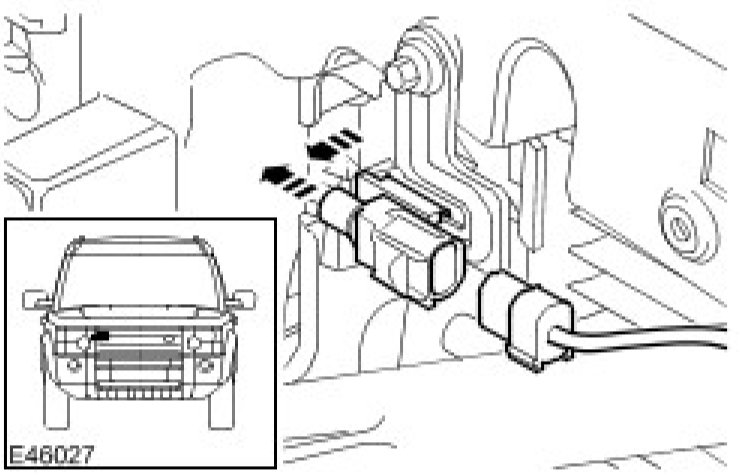

Ambient Air Temperature Sensor

Service Repair No - 80.40.31

Removal
1. Remove the radiator grille.
2. Remove the ambient air temperature sensor.
^ Disconnect the electrical connector.
^ Release the clip.





Installation

1. To install, reverse the removal procedure.
