Center Mounted Brake Lamp: Service and Repair

High Mounted Stoplamp

Service Repair No - 86.41.32

Removal

CAUTION: Always protect paintwork and glass when removing exterior components.

1. Disconnect the battery ground cable.
2. Remove the rear spoiler.

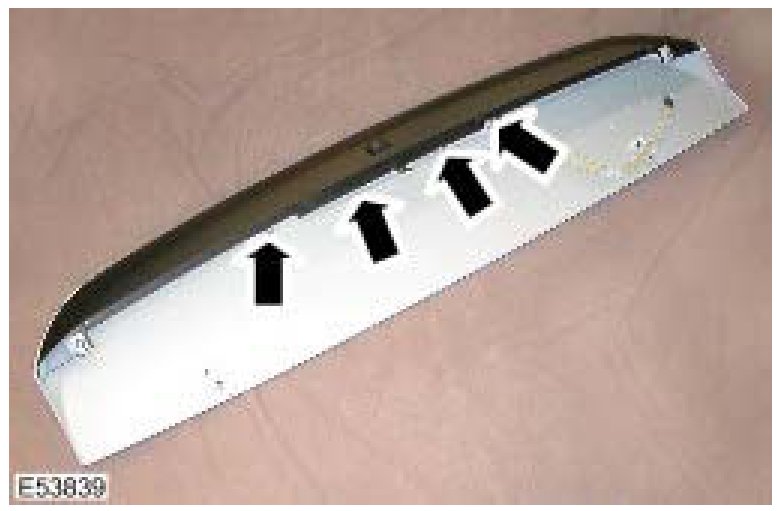

3. Remove the high mounted stoplamp.
^ Remove the 4 Torx screws.





Installation

1. Install the high mounted stoplamp.
^ Install the Torx screws.
2. Install the spoiler.
3. Connect the battery ground cable.
