Drivetrain - Revised Front/Rear Differential Service

No.: LTB00130

Issue: 1

Date: 27 MAR

SECTION: 205

Revised Workshop Procedure - Remove / Install Front and Rear Differentials

AFFECTED VEHICLE RANGE:
Range Rover Sport (LS) VIN: 6A900129 - Onwards
Model Year: 2006 - Onwards

CONDITION SUMMARY:

Situation:

A revised workshop procedure has been developed for the removal and installation of the front and rear differentials. For the front differential, it is no longer necessary to remove the front driveshaft completely; releasing the driveshafts by removing the lower arm pivot bolts and swinging the wheel knuckle assembly (including wheels) will allow adequate clearance. For the rear differential, the steps for removing and installing the new driveshaft oil seals are eliminated as the differential is being replaced.

Action:

When removing / installing either a front or rear differential, refer to the Repair Procedure outlined below.

PARTS:

No parts required

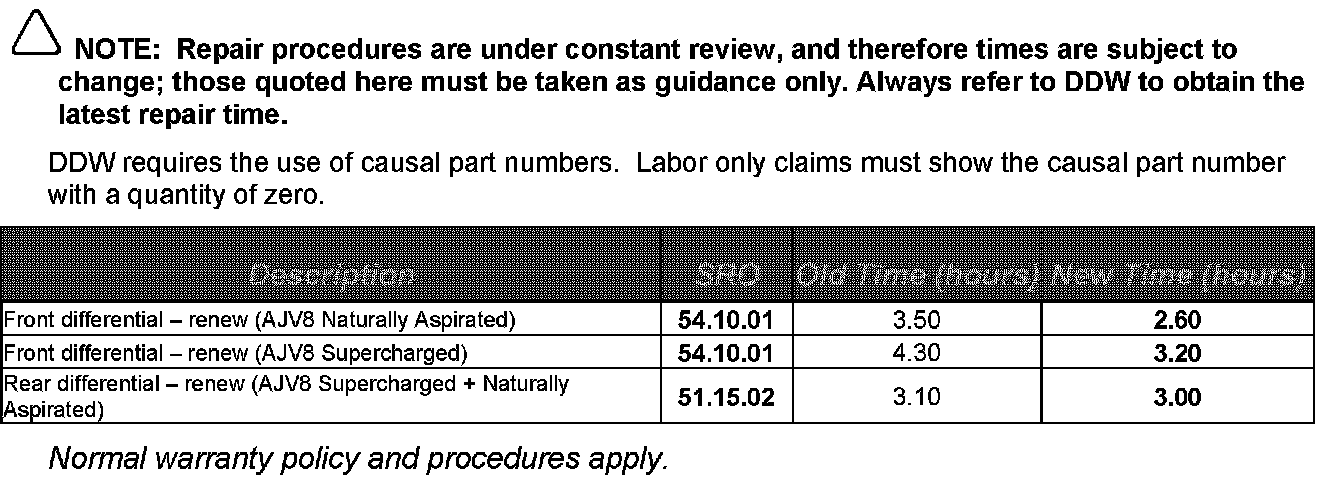

WARRANTY

REPAIR PROCEDURE

NOTE:
Global Technical Reference (GTR) lookup sequence is as follows: GTR Home > NAS > LS - Range Rover Sport > Service Information > Model Year > Workshop Manuals > 2: Chassis > 205: Driveline

1. Refer to Workshop Manual (GTR) Section 205-02 Front Drive Axle / Differential or 205-03 Rear Drive Axle / Differential for the revised removal / installation procedure.
