Interior - Cargo Cover Becomes Detached

No: LTB00244

Issue: 1

Date: 17 NOV 2009

SECTION: 501

Loadspace Roller Blind Locating Peg Repair Kit Availability

AFFECTED VEHICLE RANGE:
Range Rover Sport (LS) VIN: 6A900129 - Onwards
Model Year: 2006 - Onwards

CONDITION SUMMARY:

Situation:

A loadspace roller blind locating peg repair kit is now available as a serviceable part. The locating pegs may become detached, thus making the loadspace blind unable to latch in the fully extended position.

Action:

In the event of a customer concern of the above, refer to the Repair Procedure outlined below to replace the loadspace roller blind locating pegs.

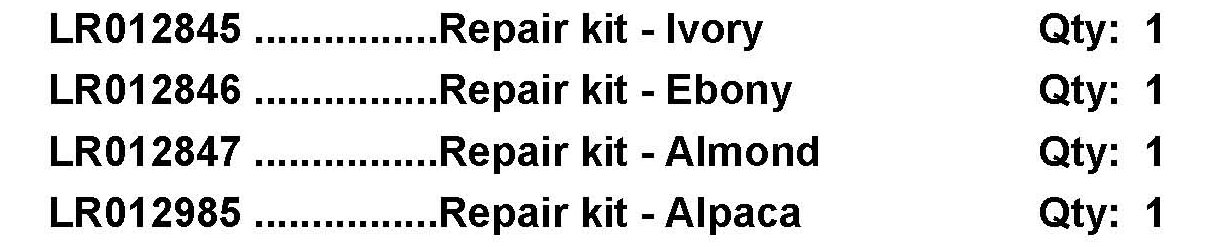

PARTS

TOOLS:

Refer to Workshop Manual (GTR) for any required special tools

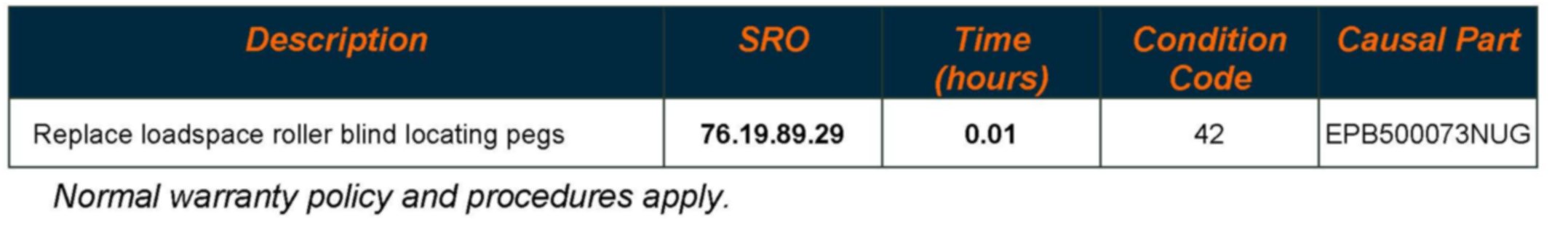

WARRANTY:

NOTE:
Repair procedures are under constant review, and therefore times are subject to change; those quoted here must be taken as guidance only. Always refer to DDW to obtain the latest repair time.

DDW requires the use of causal part numbers. Labor only claims must show the causal part number with a quantity of zero.

REPAIR PROCEDURE

REPLACE LOADSPACE ROLLER BLIND LOCATING PEGS





1. Remove the loadspace roller blind.

2. Remove the two screws and the two locating pegs.

3. Install two new locating pegs and screws.

4. Install the loadspace roller blind.

5. Verify loadspace roller blind operation.
