Interior - Chrome Scuff Plate Comes Loose

No: LTB00171

Issue: 1

Date: 20 MAY 2009

SECTION: 501

Chrome Scuff Plate Adrift - Repair Procedure

AFFECTED VEHICLE RANGE:
Range Rover Sport (LS) VIN: 8A119896 - Onwards
Model Year: 2008 - Onwards

CONDITION SUMMARY:

Situation:

The chrome scuff plate may come adrift from the interior scuff plate. This may be caused by poor adhesion of the chrome scuff plate to the interior scuff plate trim.

Action:

In the event of a customer concern of the above, refer to the Repair Procedure outlined below to remove / install the chrome scuff plate.

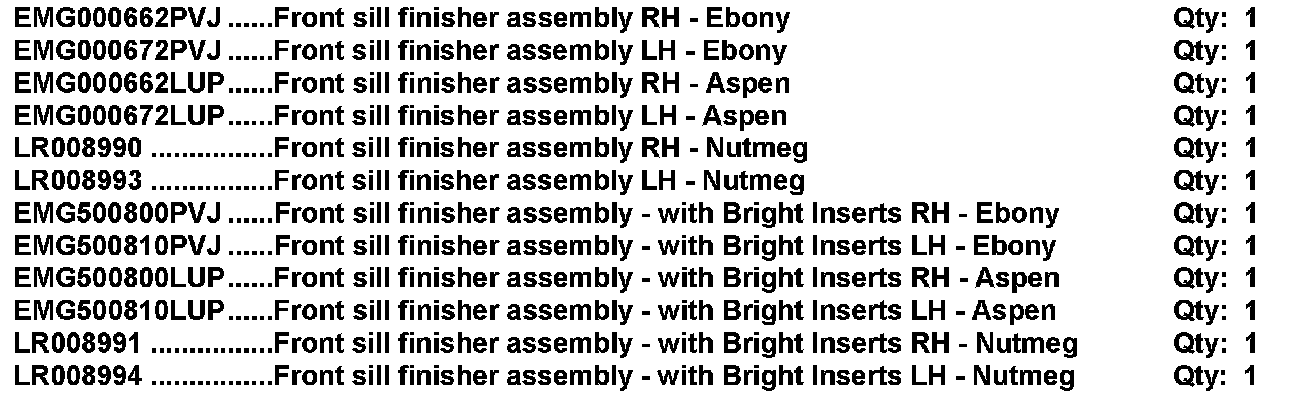

PARTS

TOOLS:

Refer to Workshop Manual (GTR) for any special tools required





WARRANTY:

NOTE:
Repair procedures are under constant review, and therefore times are subject to change; those quoted here must be taken as guidance only. Always refer to DDW to obtain the latest repair time.

DDW requires the use of causal part numbers. Labor only claims must show the causal part number with a quantity of zero.

REPAIR PROCEDURE:

REMOVE / INSTALL THE CHROME SCUFF TREAD PLATE

NOTE:
Global Technical Reference (GTR) lookup sequence is as follows: GTR Home > NAS > LS-Range Rover Sport > Service Information > Model Year > Workshop Manual > 5: Body and Paint > 501-05: Interior Trim and Ornamentation > Scuff Plate Trim Panel (76.46.54)

1. Refer to Workshop Manual (GTR) Section 501-05 Interior Trim and Ornamentation (76.49.54) to remove / install the chrome scuff plate.
