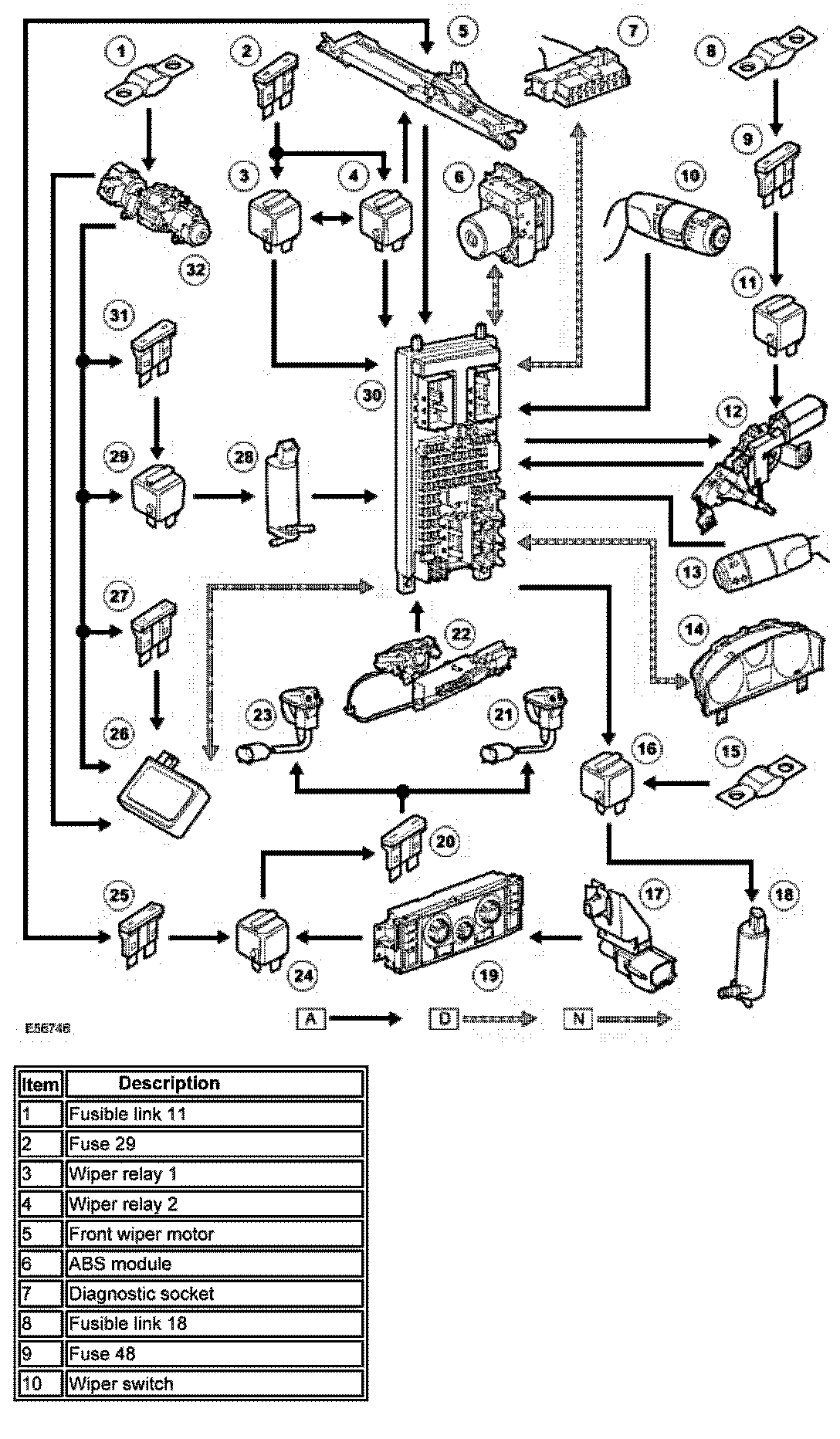

Control Diagram
Control Diagram
Control Diagram
NOTE:
A = Hardwired; D = Can bus (High); N = Can bus (Medium)
