Cabin Air Filter / Purifier: Service and Repair

Pollen Filter

Service Repair No - 80.15.42

Removal

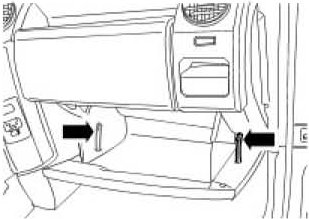

1. Open the glove compartment to the service condition.
Release the glove compartment latch stops.




2. Remove the pollen filter housing cover.




3. Remove the pollen filter.

Installation

To install, reverse the removal procedure.
Clean the component mating faces.
