Repair and Diagnosis: Application and ID

Identification Codes

VIN Number

The VIN number will be found in three locations:
1. Stamped on the front of the RH front suspension turret.
2. At the bottom of the windshield glass on the LH side of the vehicle and visible from the outside.
3. UK, Europe and ROW - Not NAS/Canada -On the VIN plate attached to the LH inner wing, forward of the suspension turret.
4. NAS/Canada - On the Tire Data/Specification label attached to the front of the LH B-pillar.

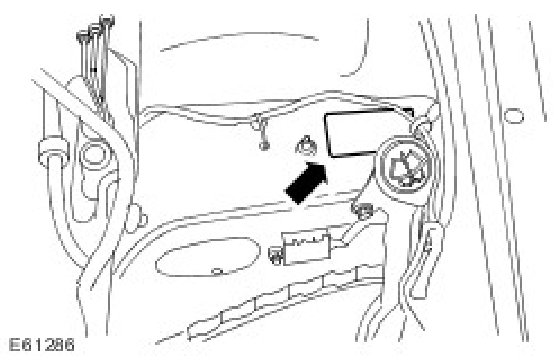

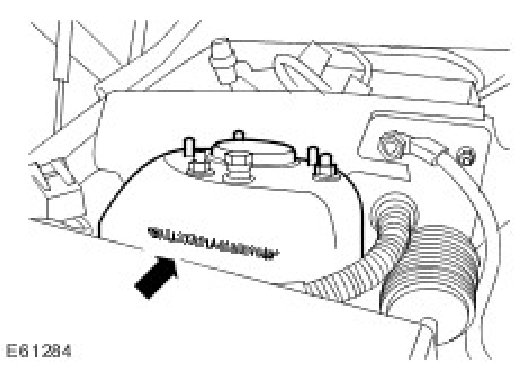

RH Front Suspension Turret VIN







Windscreen VIN







LH Inner Wing VIN

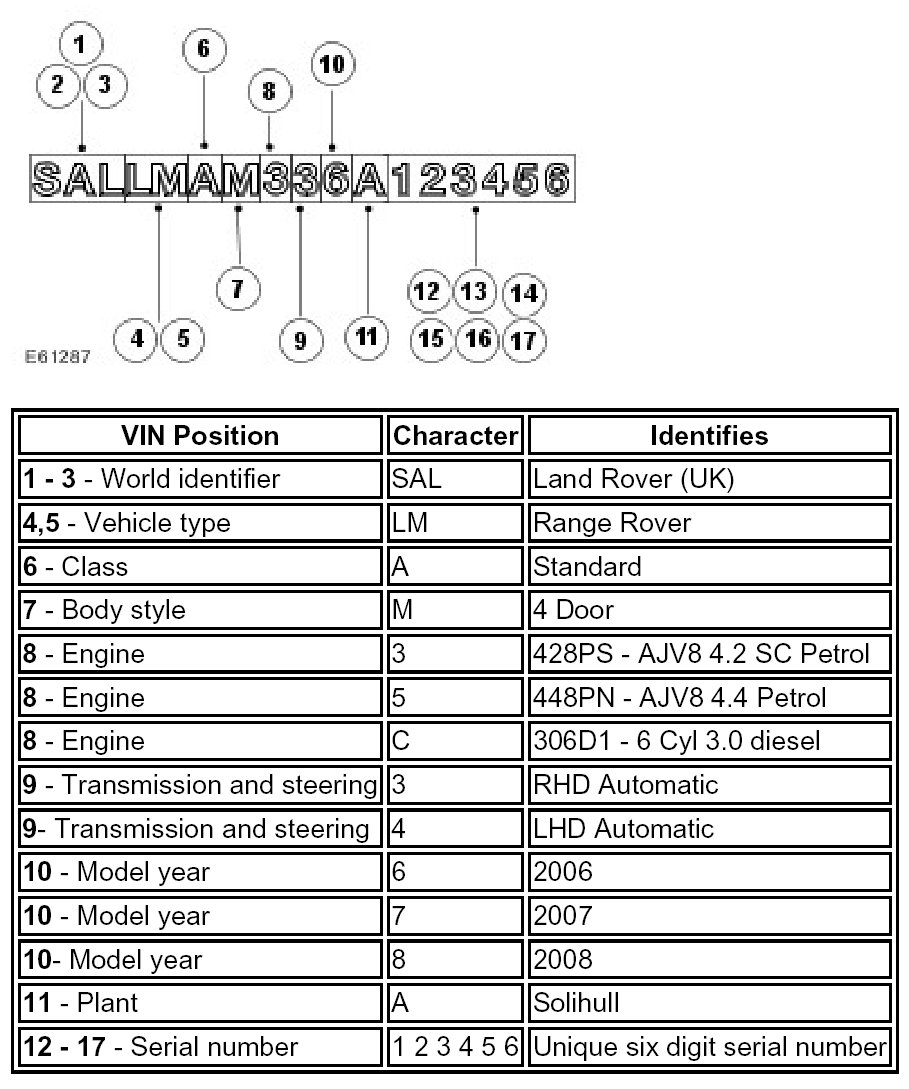

VIN number - UK, EU and ROW







VIN number - NAS and Canada

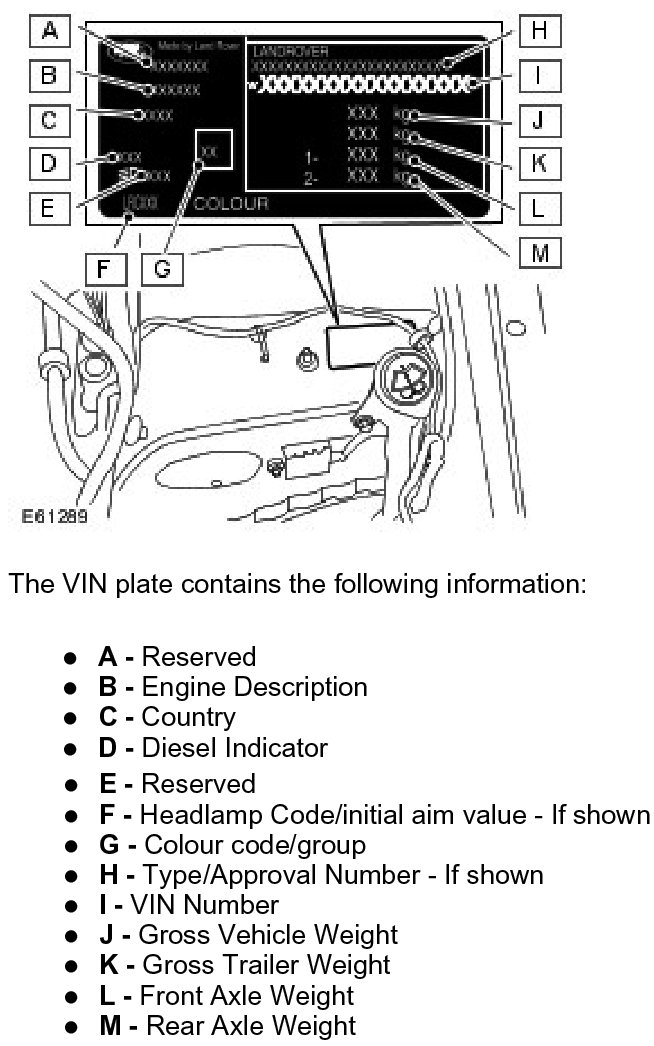

LH Inner Wing, Forward of Suspension Turret, VIN Plate - Not NAS/Canada

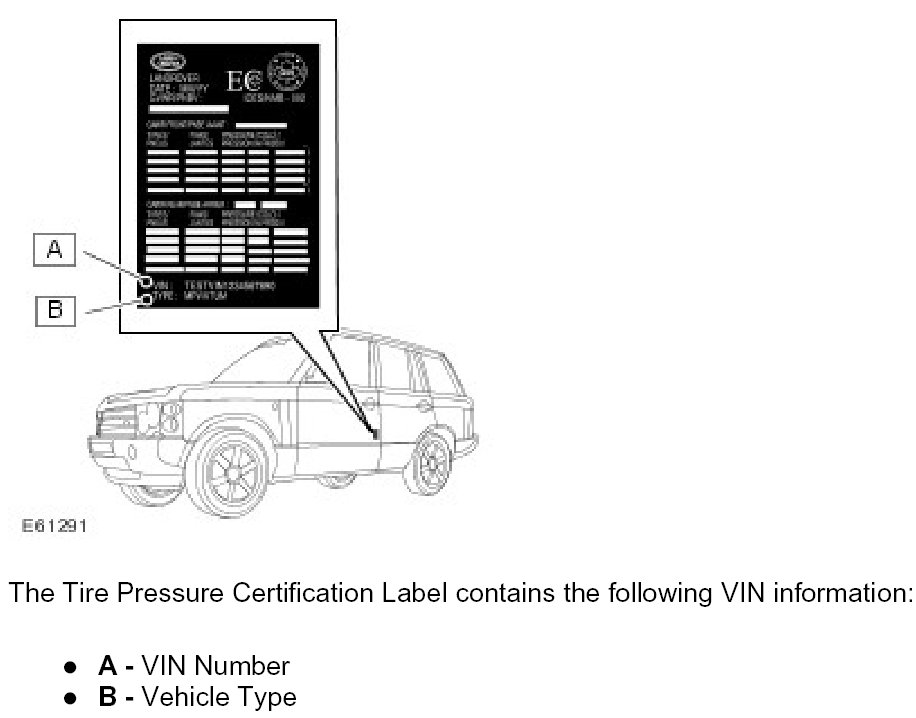

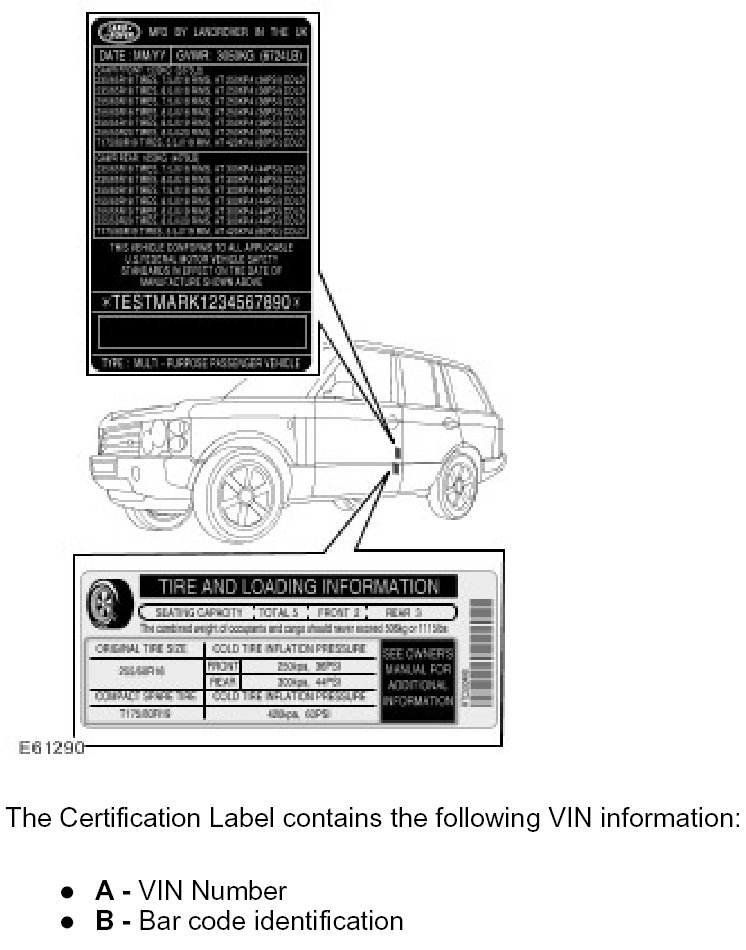

VIN/Certification/Tire Data Label - NAS only







VIN/Tire Pressure Specification Label - Canada only







Unit/Assembly Serial Number Locations

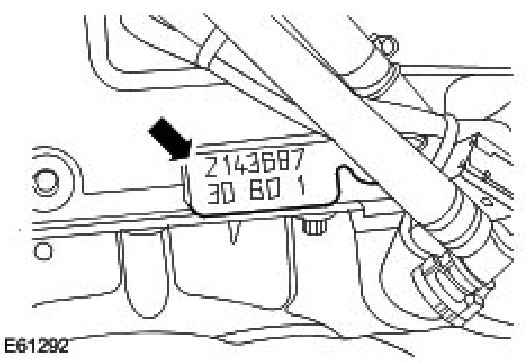

3.0 Litre TD6 Diesel Engine Serial Number







The 3.0 Litre TD6 Diesel Engine Serial Number is stamped on the LH side of the cylinder block.

The 4.0 Litre V6 Petrol Engine Serial Number is stamped on the LH side of the cylinder block.

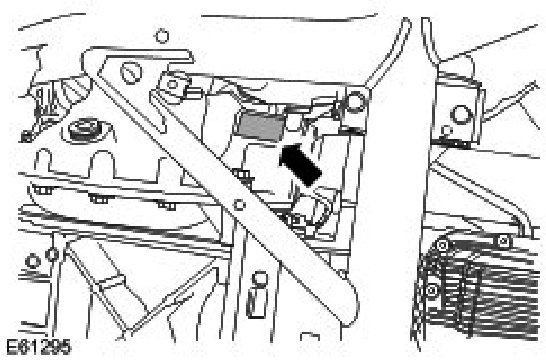

4.2 Litre SC and 4.4 Litre V8 Petrol Engine Serial Number







The 4.2 Litre SC and 4.4 Litre V8 Petrol Engine Serial Number is etched into the LH side of the engine block.

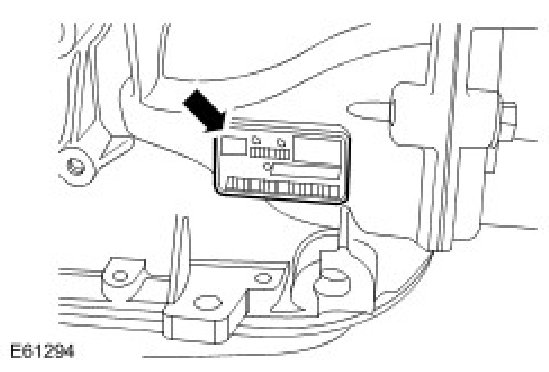

TD6 Automatic Transmission Serial Number







The transmission serial number is on a plate attached to the LH side of the transmission casing.

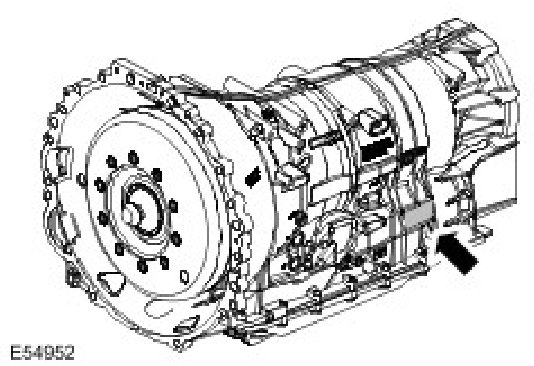

4.2 SC and 4.4 Litre Automatic Transmission Serial Number







The automatic transmission serial number is stamped on the rear LH side of the transmission casing.

Front Differential Serial Number







The Front Differential Serial Number is stamped on the underside of the differential casing and is located above the removable cross member.

Rear Differential Serial Number







The Rear Differential Serial Number is stamped on the underside of the differential casing adjacent to the front mounting.

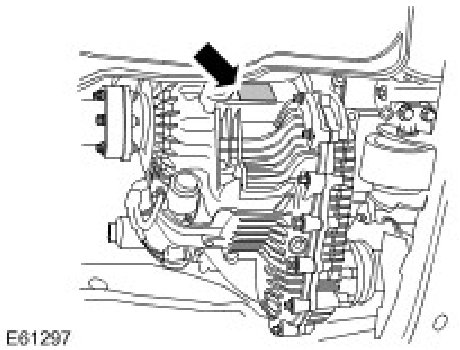

Transfer Case Serial Number







The Transfer Case serial number is stamped on the RH side of the transfer case and may also be on a bar coded self adhesive label attached to the case.
