Navigation System: Locations



Navigation System

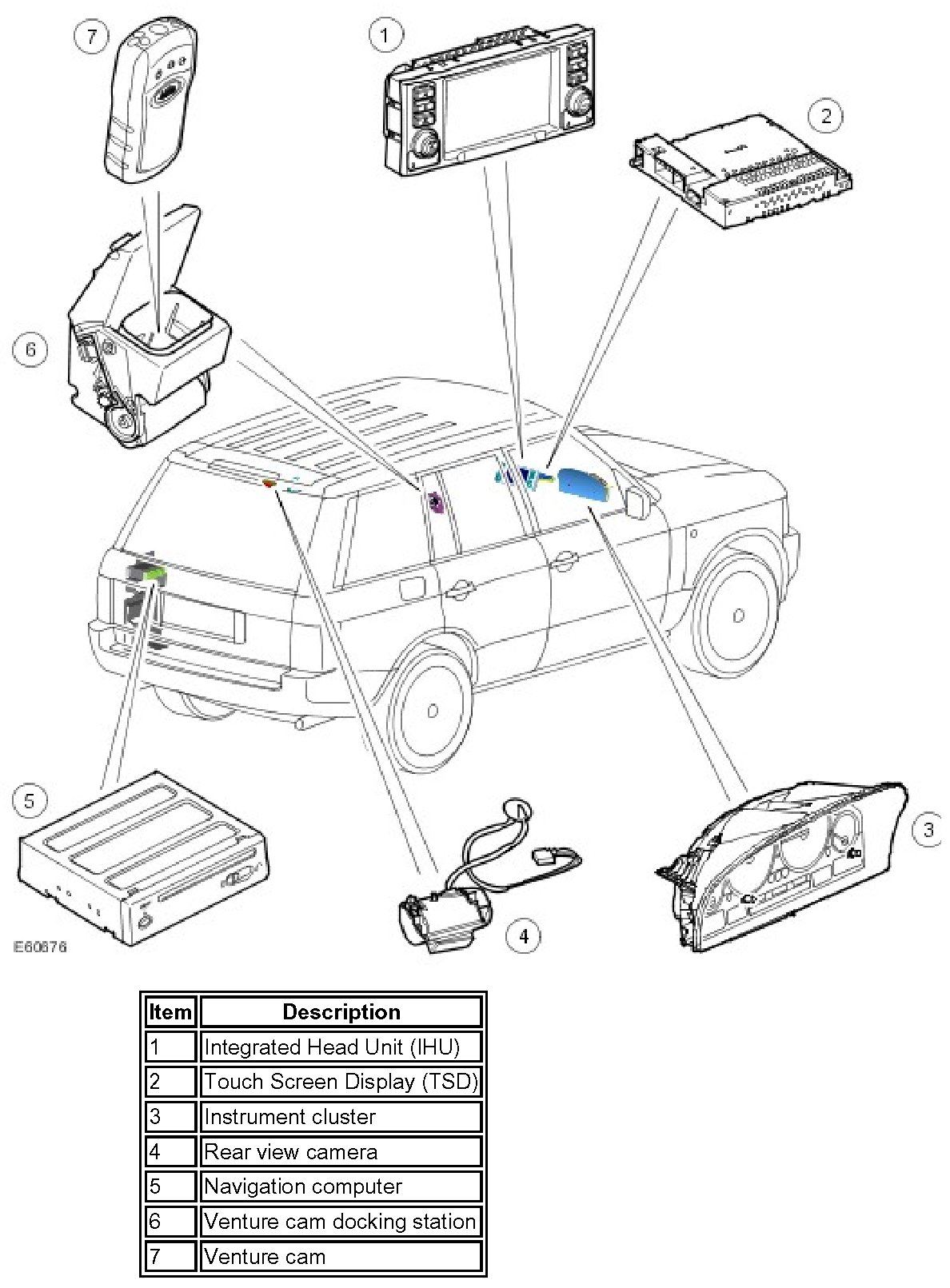

NAVIGATION SYSTEM COMPONENT LOCATION (EXCEPT JAPAN)







NAVIGATION SYSTEM COMPONENT LOCATION (JAPAN ONLY)







4X4i Component Location
