Front Brakes

Front Disc Brake

COMPONENT LOCATIONS

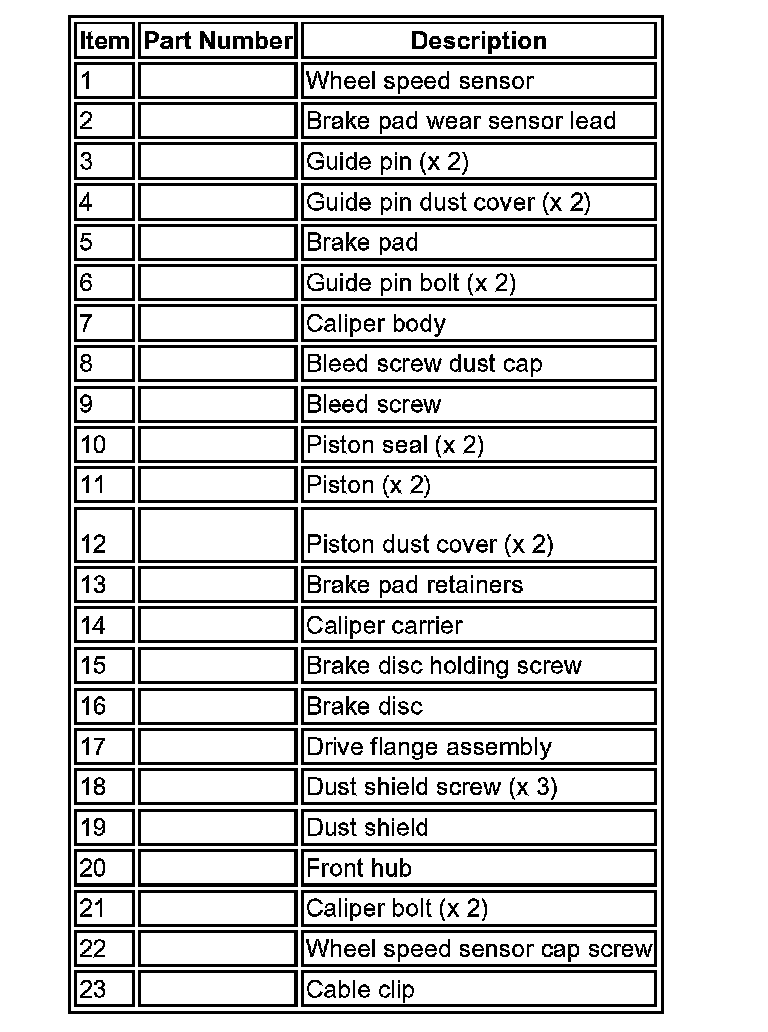

COMPONENT LOCATIONS - 4.4L (PART 1):

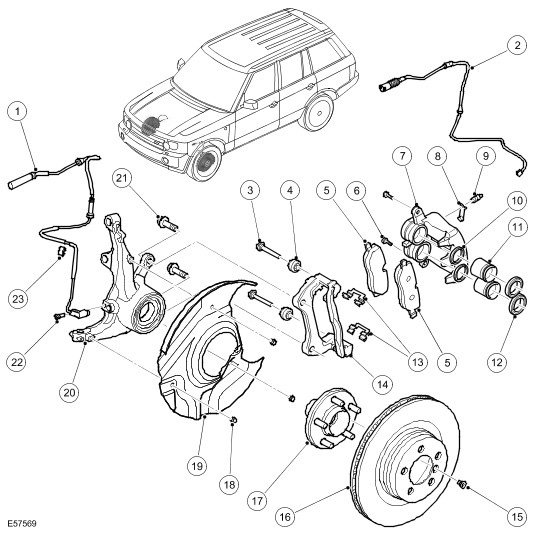

COMPONENT LOCATIONS - 4.4L (PART 2):

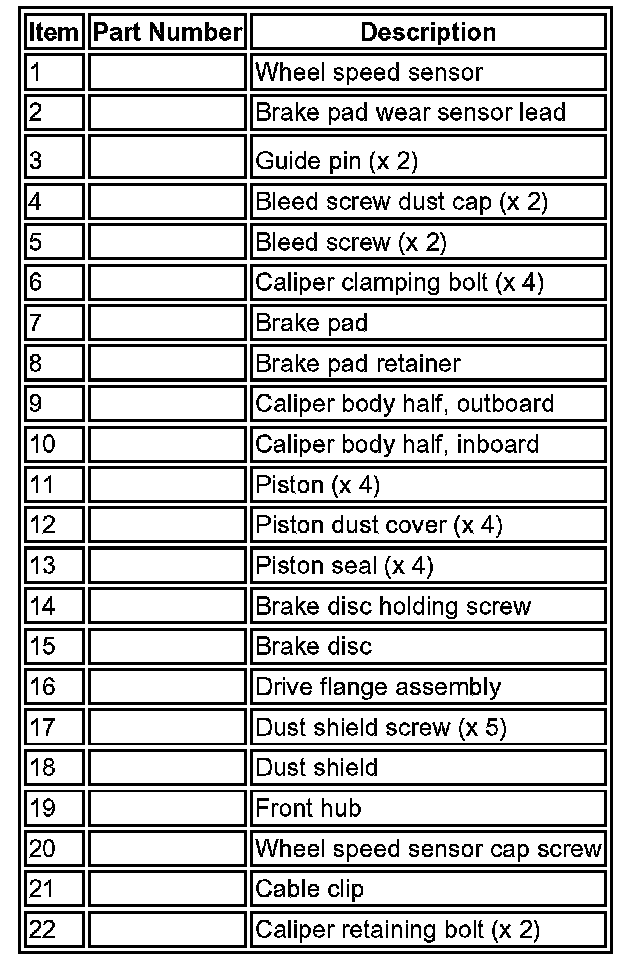

COMPONENT LOCATIONS - 4.2L (PART 1):

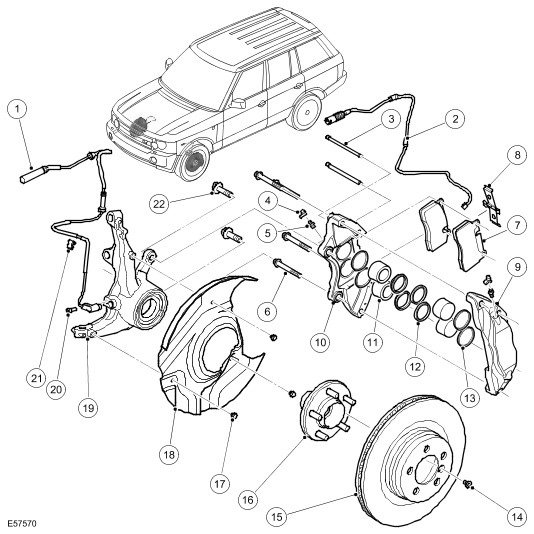

COMPONENT LOCATIONS - 4.2L (PART 2):
