Rear Brakes
Rear Disc Brake
COMPONENT LOCATIONS

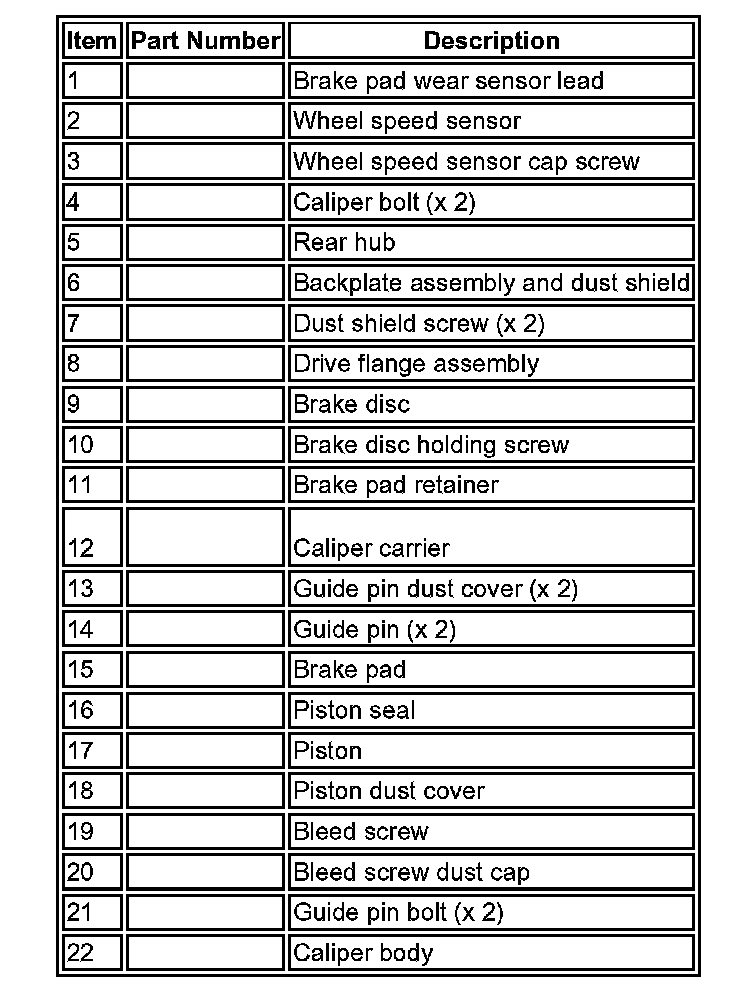

COMPONENT LOCATIONS (PART 1):

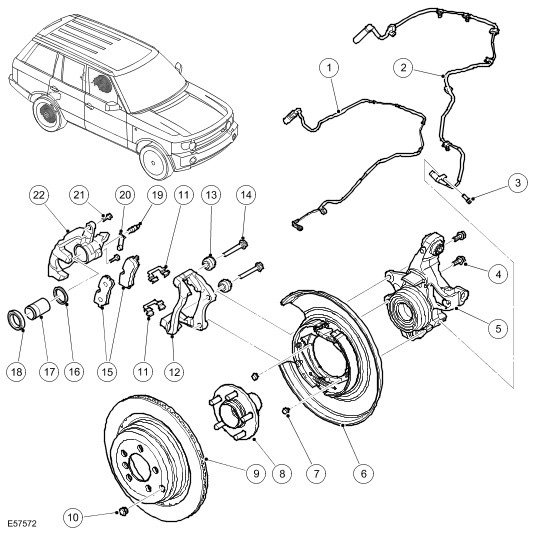

COMPONENT LOCATIONS (PART 2):
