Heater Core Temperature Sensor / Switch
Heater Core Temperature Sensor / Switch

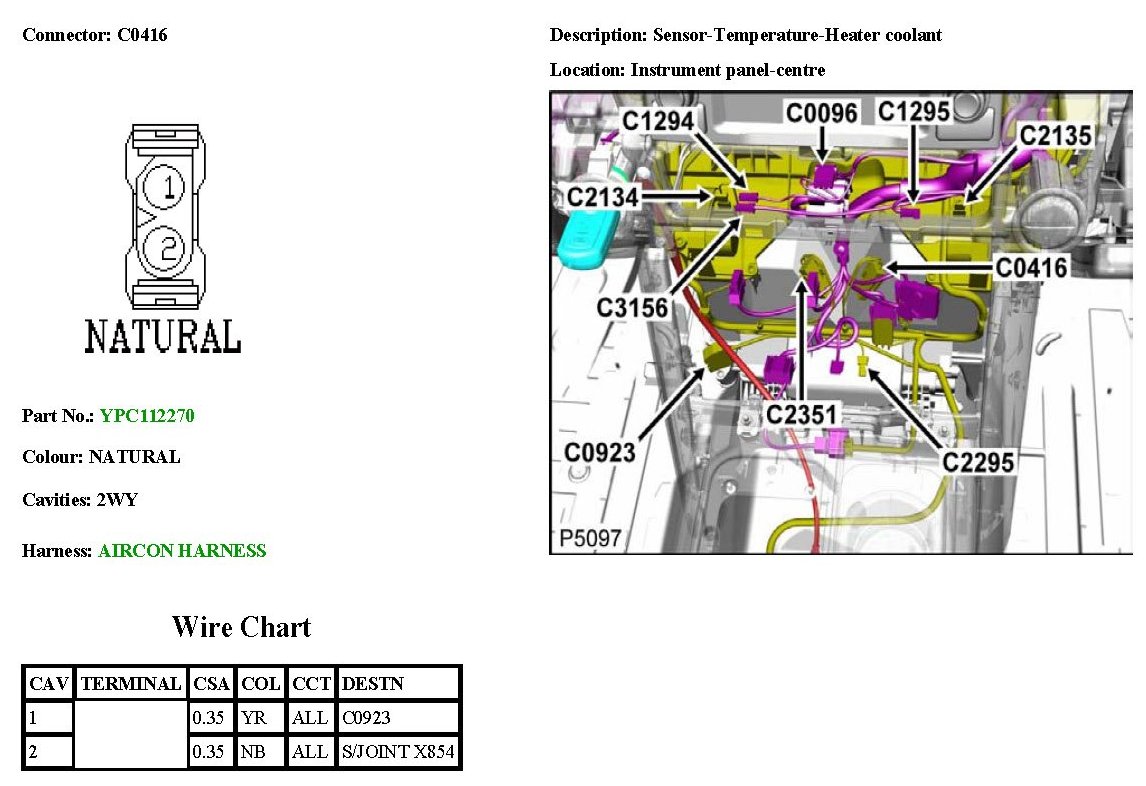

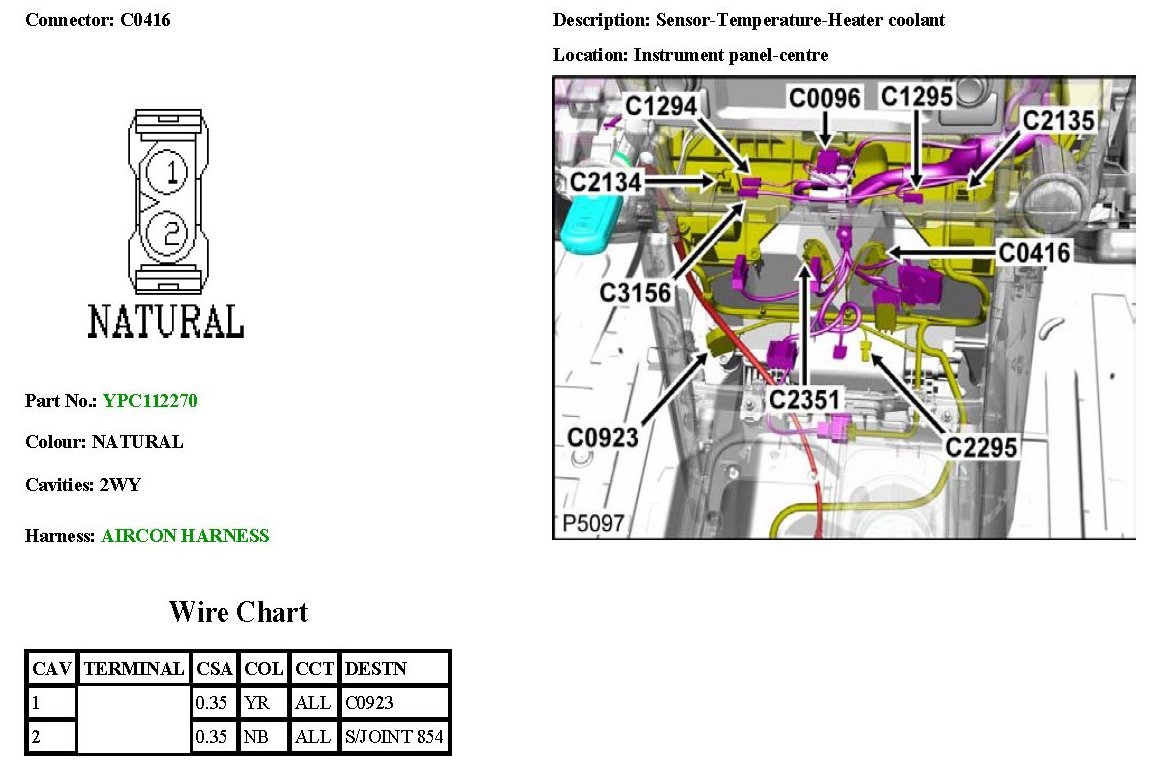

C0416:
C0416:

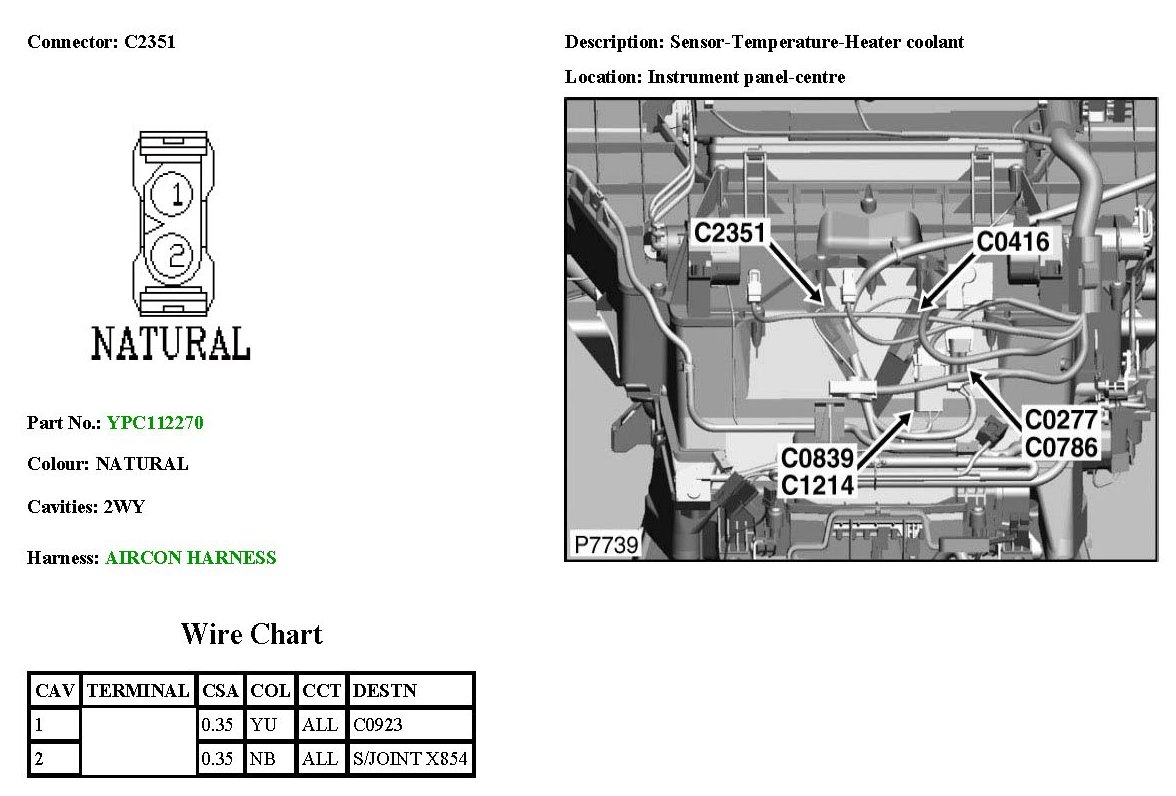

C2351:
C2351:
