Navigation System

MOST

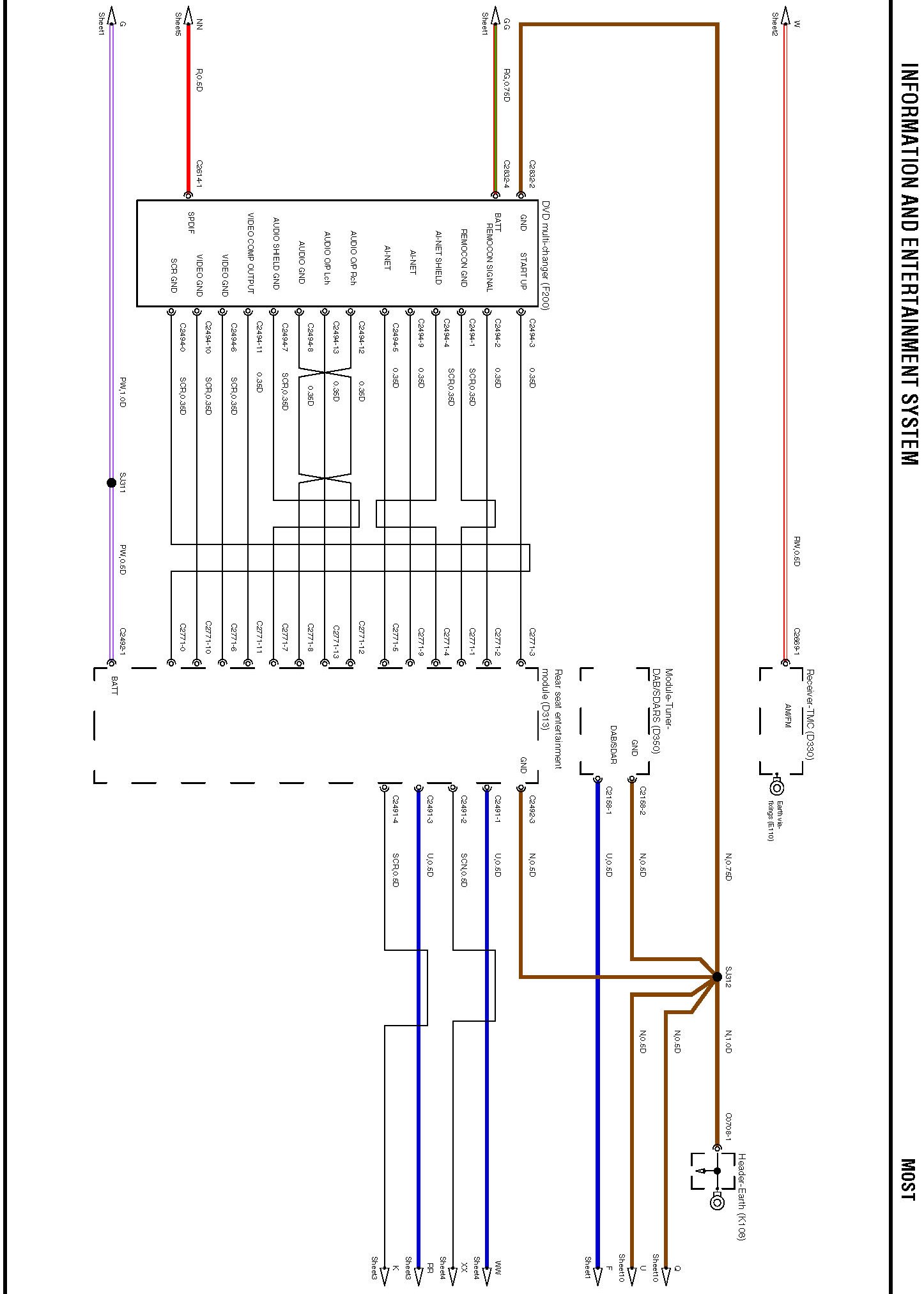

MOST (Sheet 1):

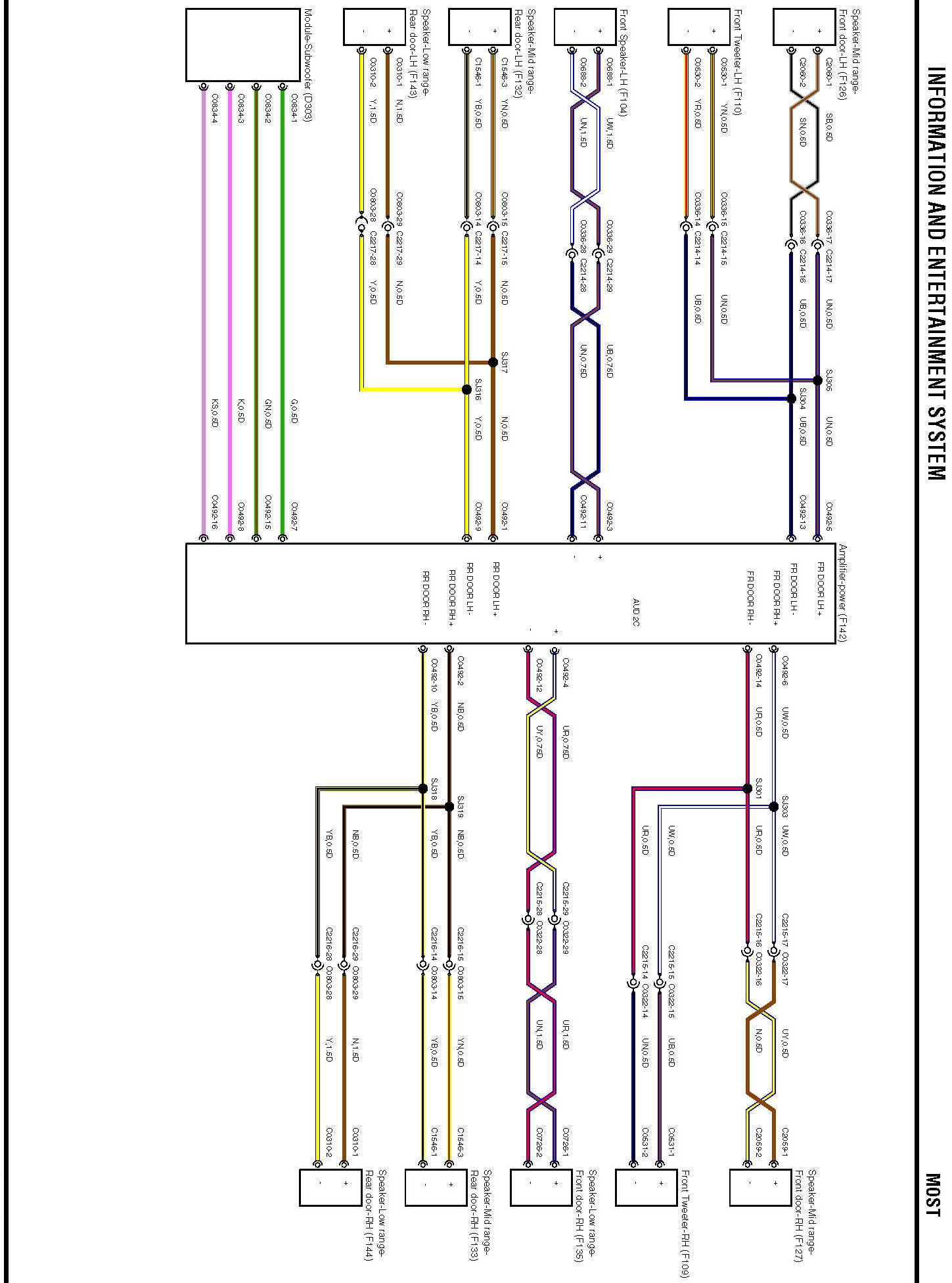

MOST (Sheet 2):

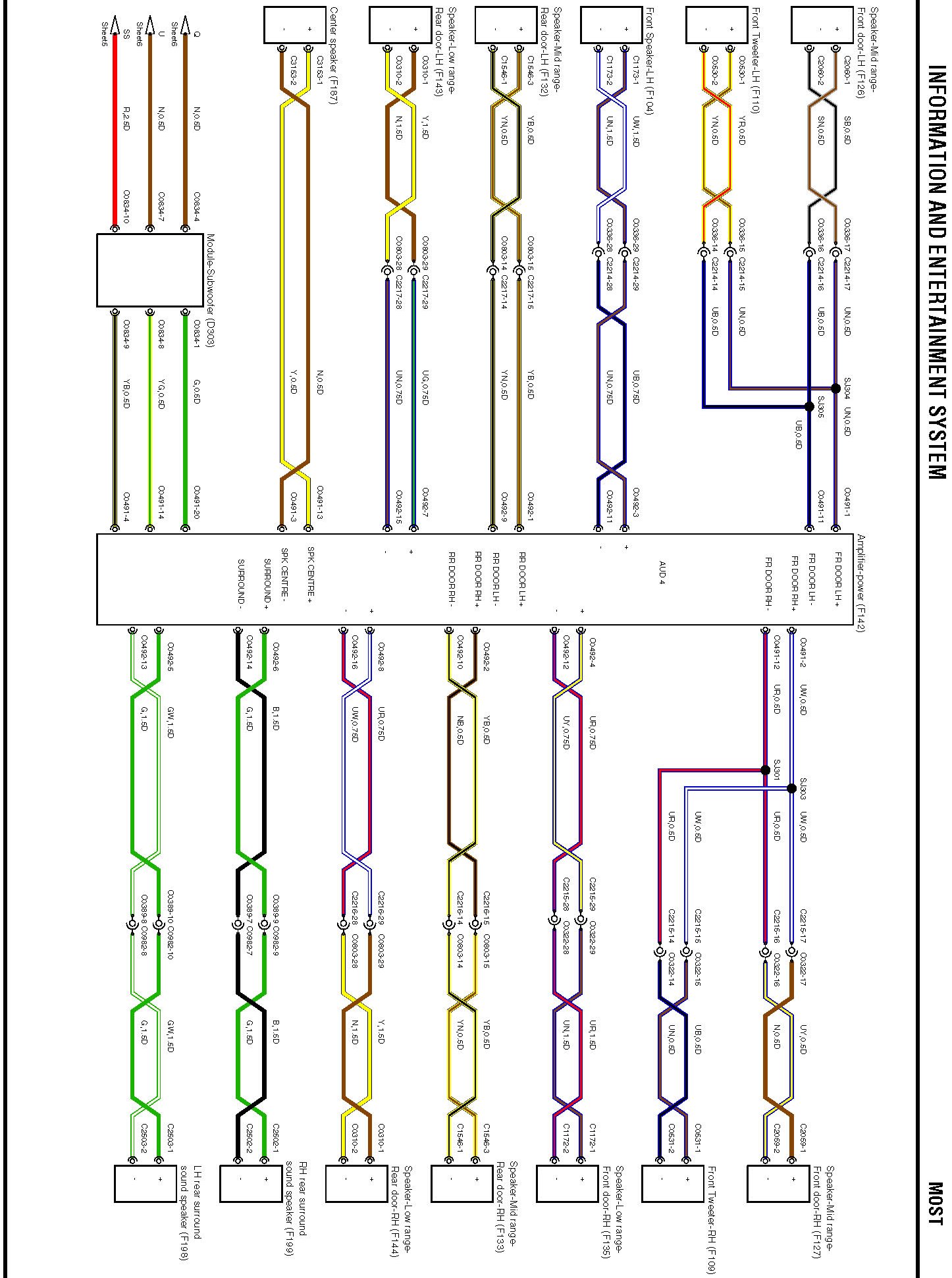

MOST (Sheet 3):

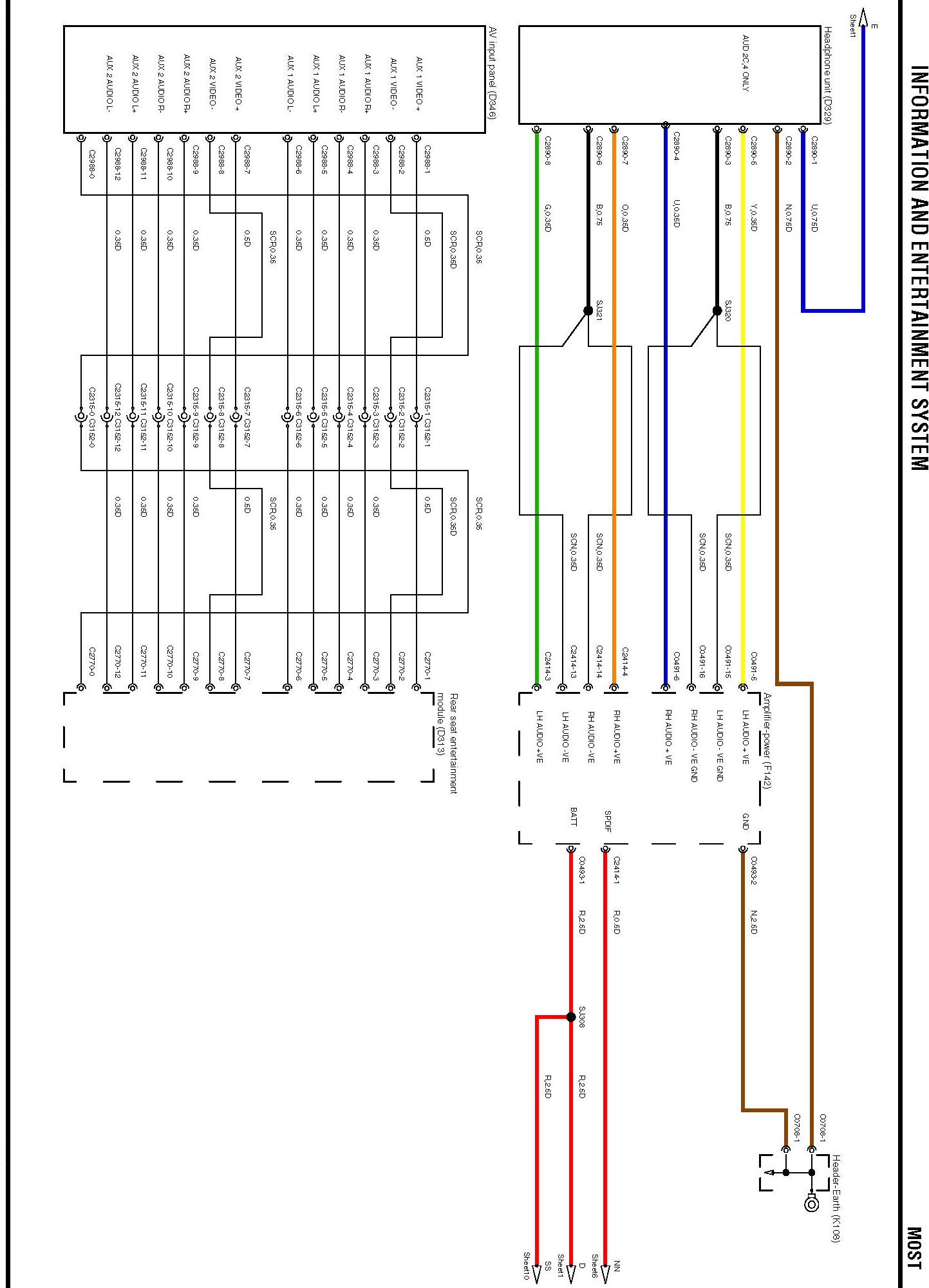

MOST (Sheet 4):

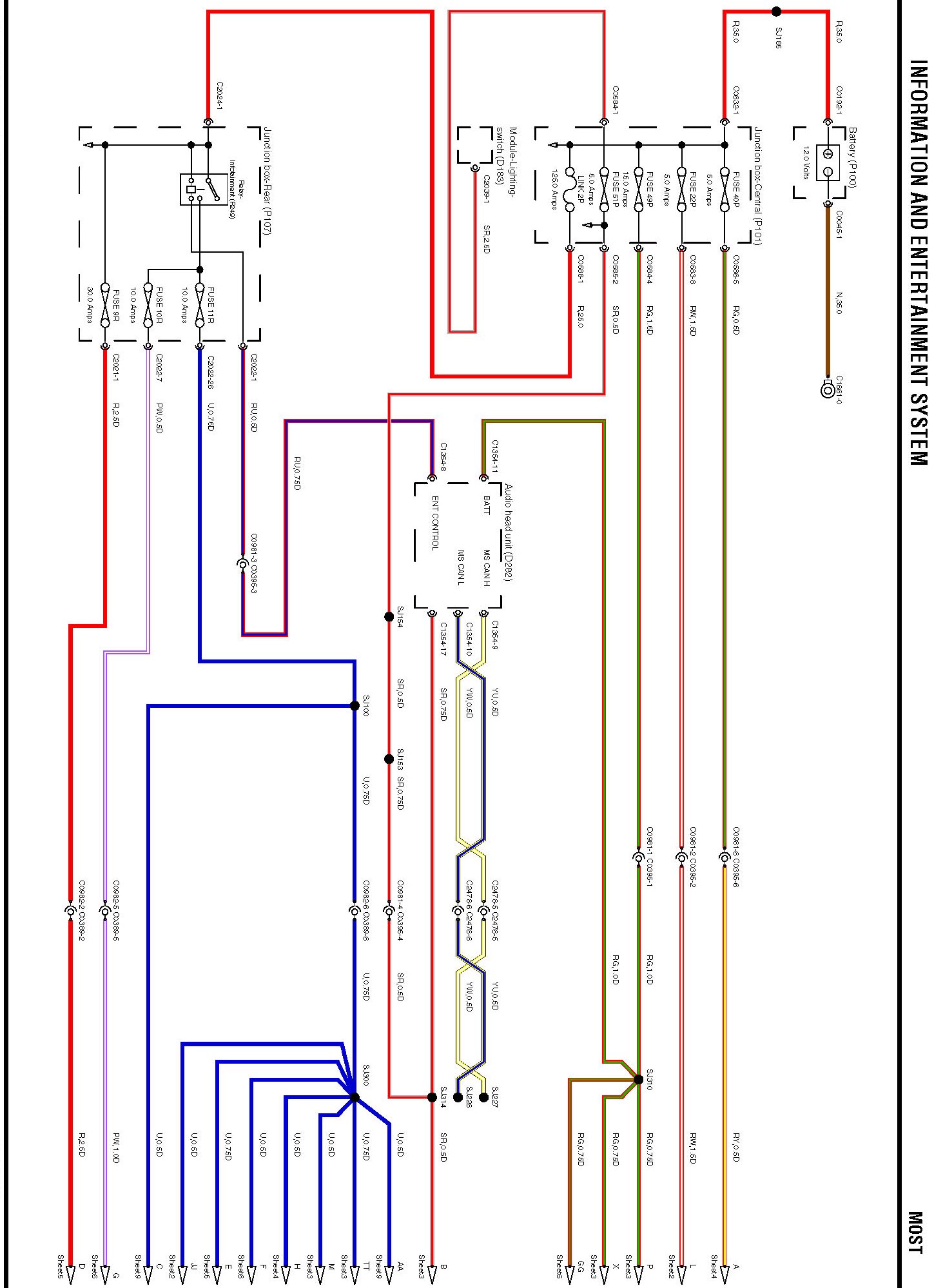

MOST (Sheet 5):

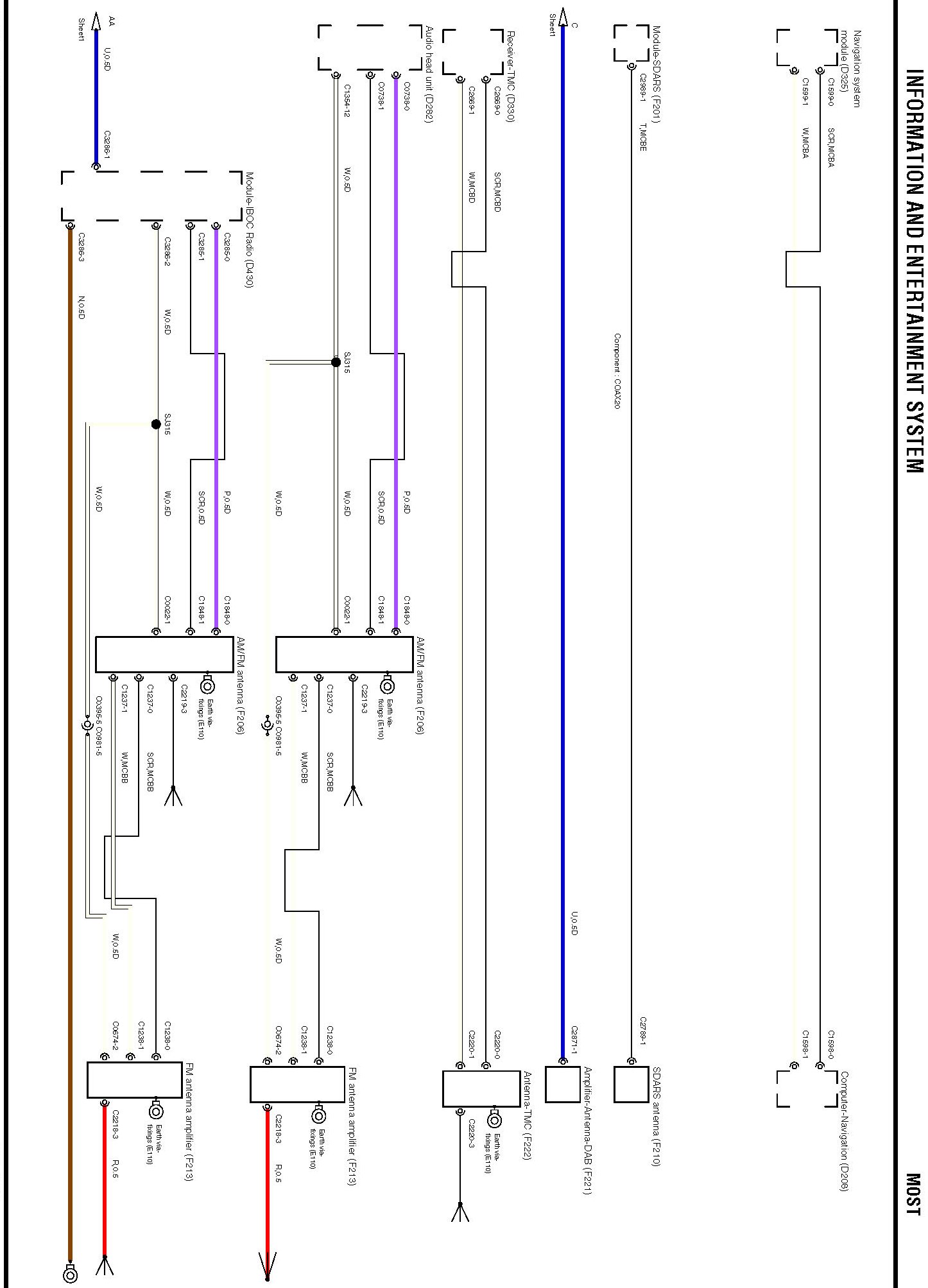

MOST (Sheet 6):

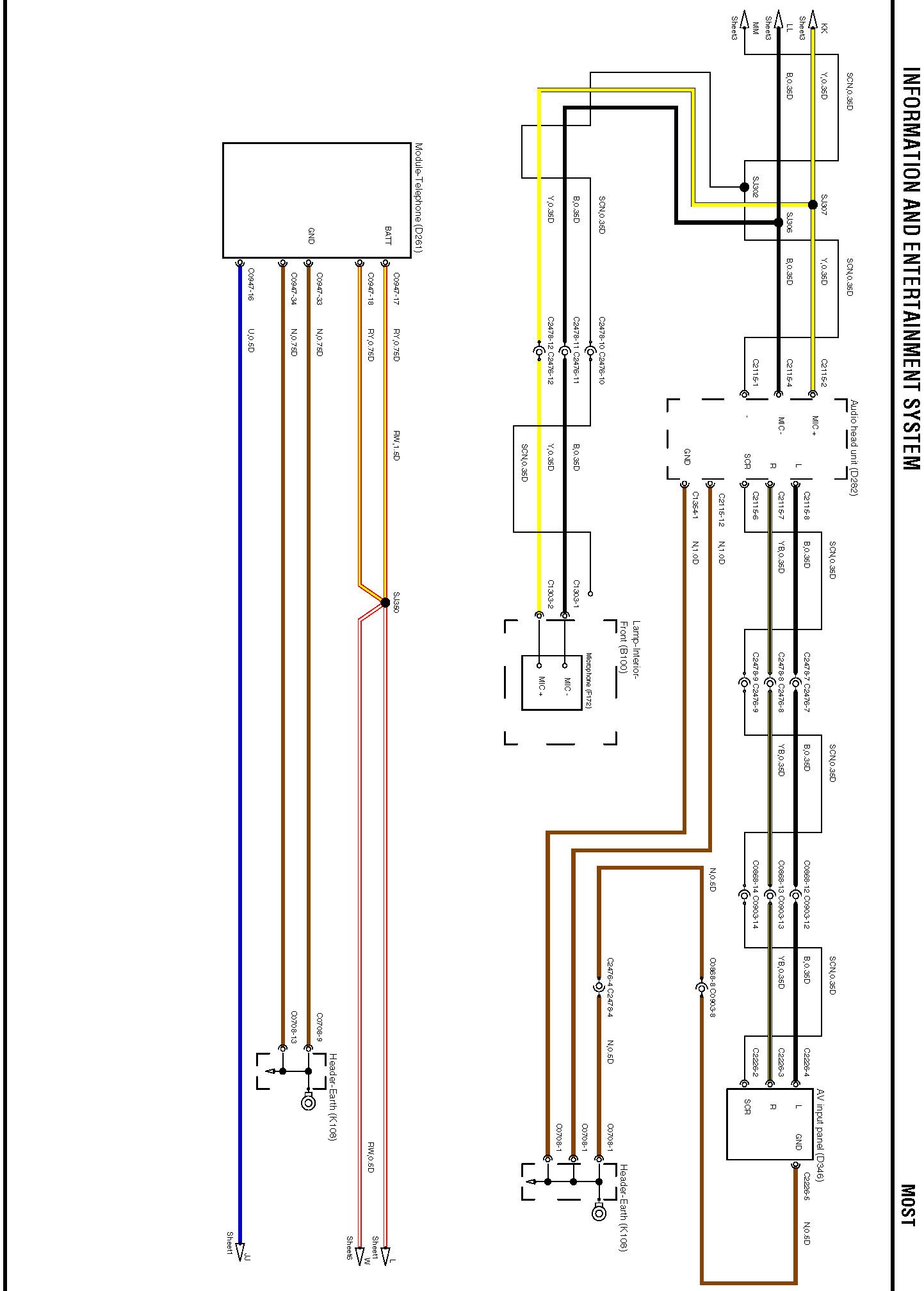

MOST (Sheet 7):

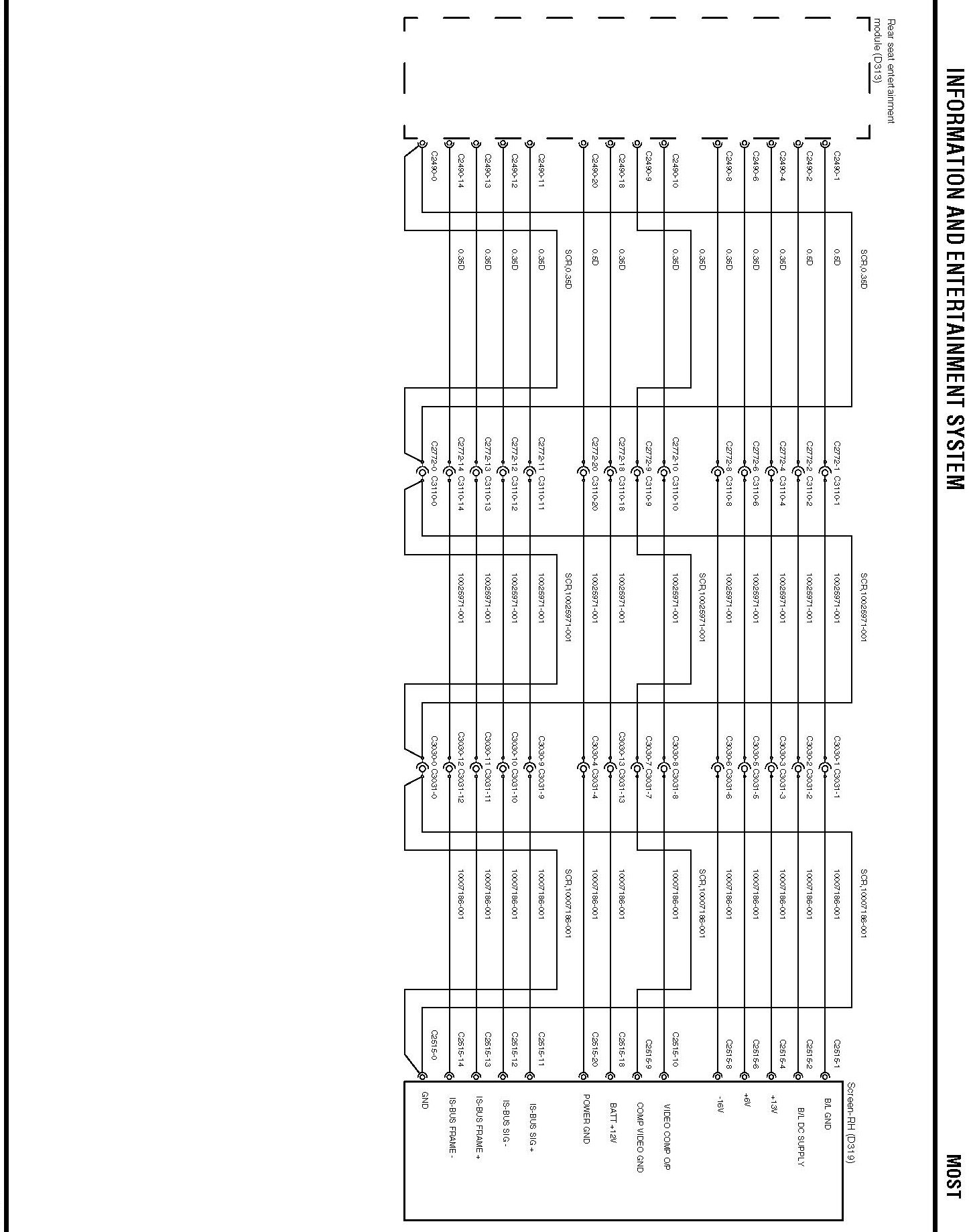

MOST (Sheet 8):

MOST (Sheet 9):

MOST (Sheet 10):

MOST (Sheet 11):

MOST (Sheet 12):

Locations: The location views for connectors and components depicted within these diagrams can be found via the connector's base number (i.e. C0570) at Vehicle/Locations/Connectors. Locations

Connector Views: The connector pin out views for connectors depicted within these diagrams can be found via the connector's base number (i.e. C0570) at Vehicle/Diagrams/Connector Views. Connector Views
