Brake Lamp: Service and Repair

Rear Lamp Assembly

Removal

CAUTION: Always protect paintwork and glass when removing exterior components.

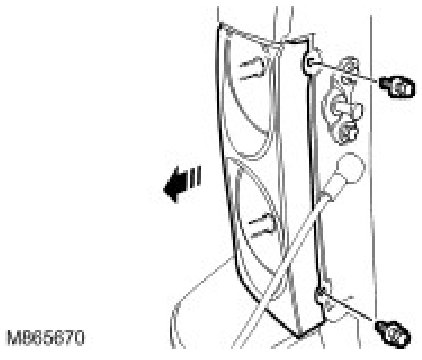

1. Remove the rear lamp assembly.
- Remove the 2 screws.
- Disconnect the electrical connector.







NOTE: Do not disassemble further if the component is removed for access only.

2. Remove the bulb holder.
- Release the 2 clips.
- Disconnect the 2 electrical connectors.







3. Remove the 3 bulbs.

Installation
1. Install the bulbs.
2. Install the bulb holder.
- Connect the electrical connectors.

3. Install the rear lamp assembly.
- Connect the electrical connector.
- Tighten the screws.
