Fog/Driving Lamp: Service and Repair

Front Fog Lamp

Removal

NOTE: Release each clip individually. Clips may fall off if care is not taken.

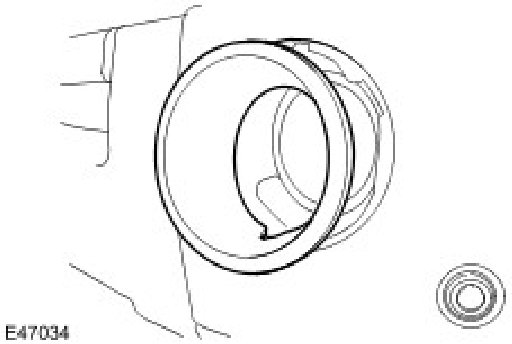

1. Remove the front fog lamp bezel.
- Release the 5 clips.

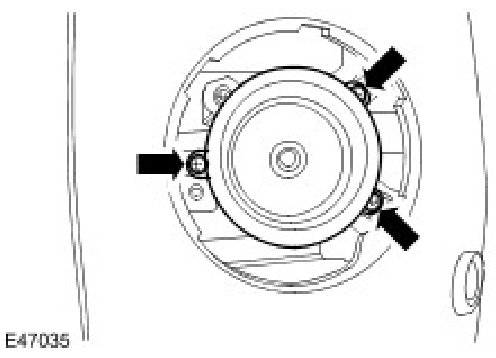

2. Release the front fog lamp.
- Remove the 3 screws.

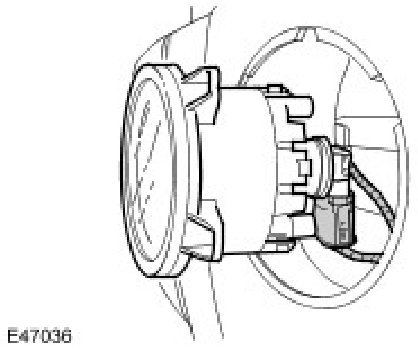

3. Remove the front fog lamp.
- Disconnect the front fog lamp electrical connector.







Installation
1. Install the front fog lamp.
- Connect the front fog lamp electrical connector.
- Tighten the screws.

2. Install the front fog lamp bezel.
3. Check the fog lamp beam alignment.
