Range Rover Sport (LS) V8-4.2L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Camshaft Position Sensor
Camshaft Position Sensor
Sensor-Camshaft-Position (CMP)-PV8SC

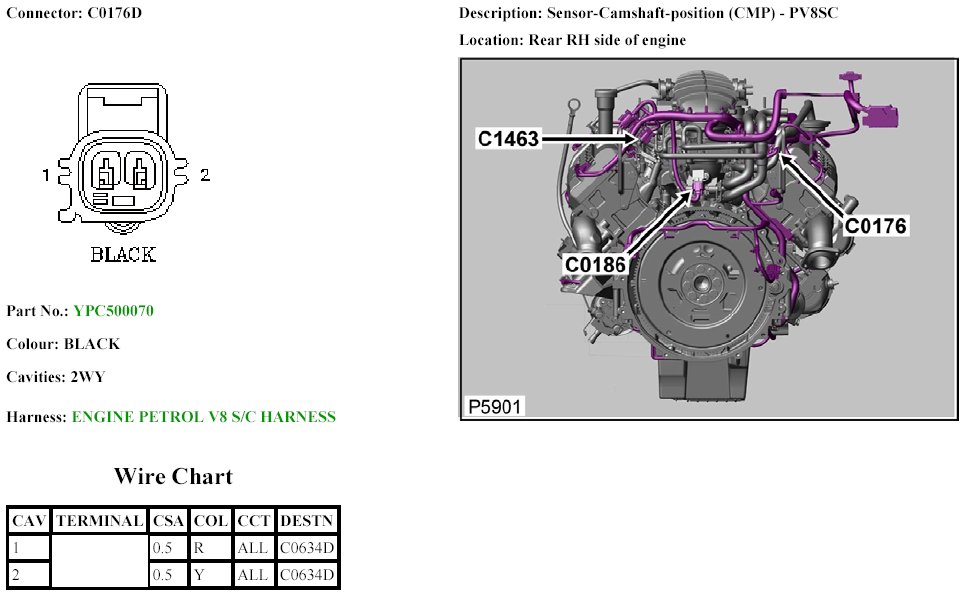

C0176D:

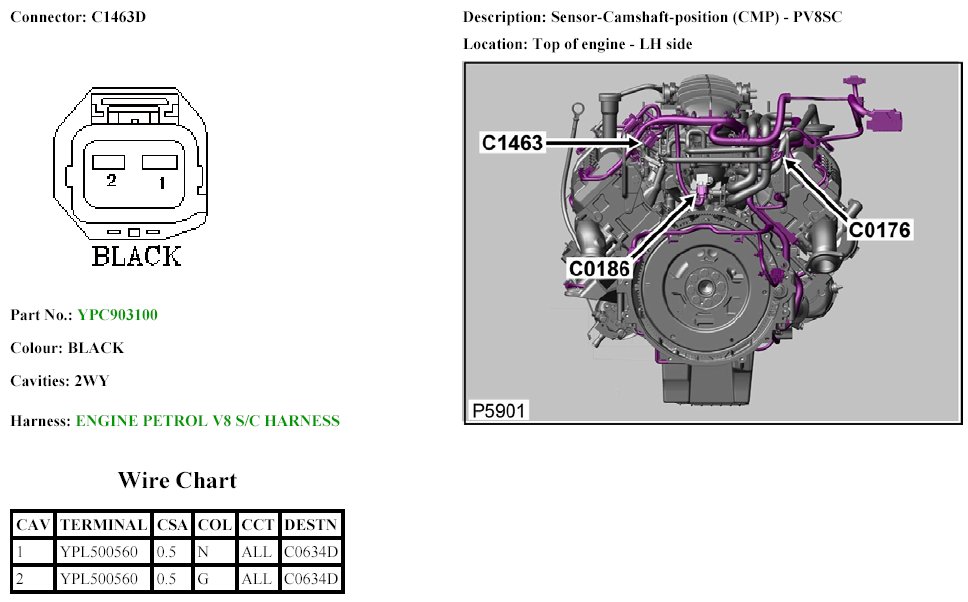

C1463D:
