Home >> Land Rover >> 2009 >> Range Rover Sport (LS) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Knock Sensor

Knock Sensor

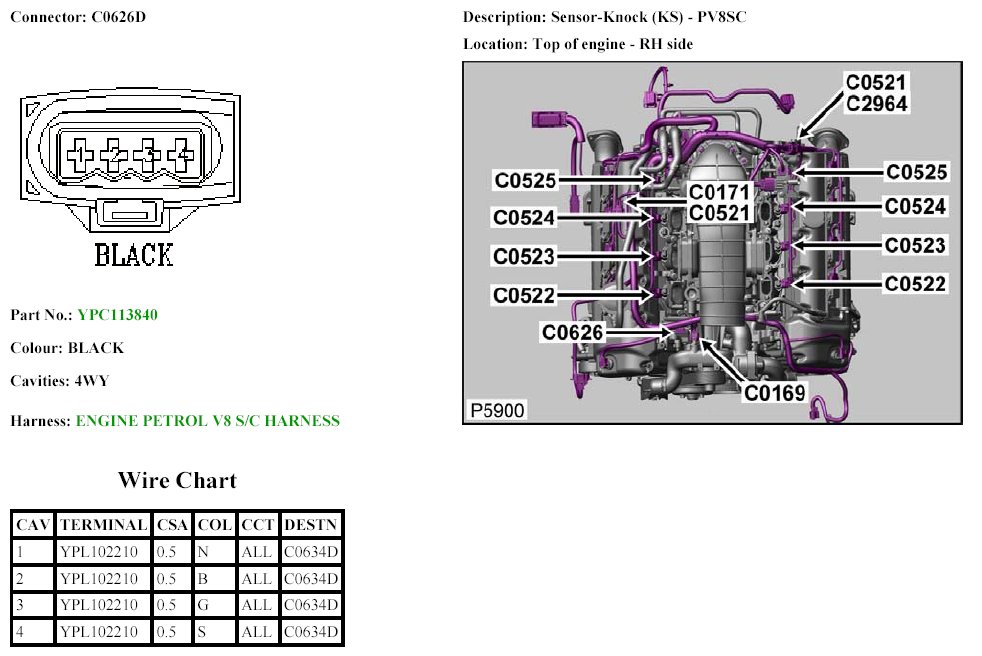

Sensor-Knock (KS)-PV8SC

C0626D:
