Air Bag Control Module
Air Bag Control Module
Restraints Control Module (RCM)
C0256 (Part 1):
C0256 (Part 2):
C0256 (Part 3):

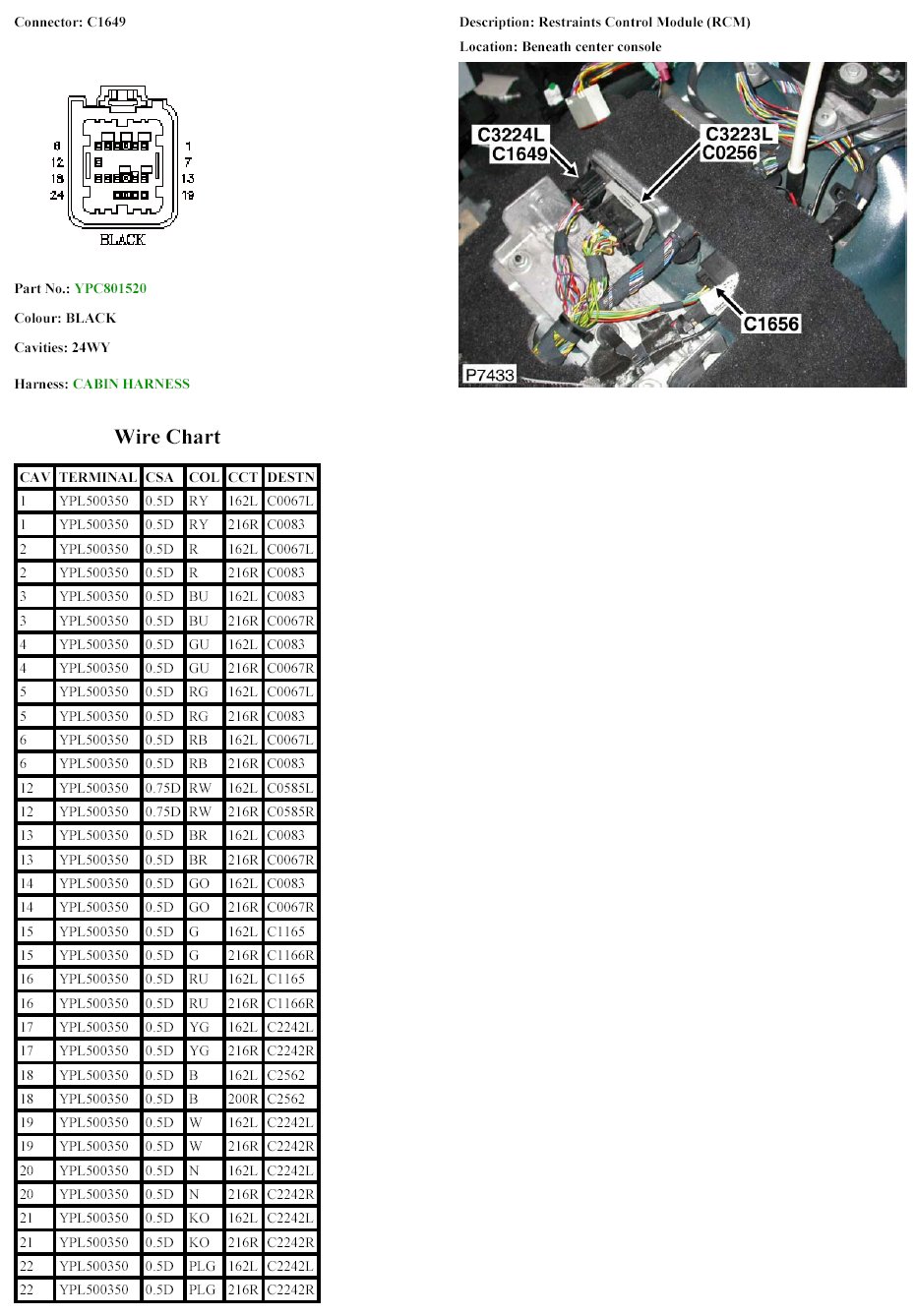

C1649:
C3223L:

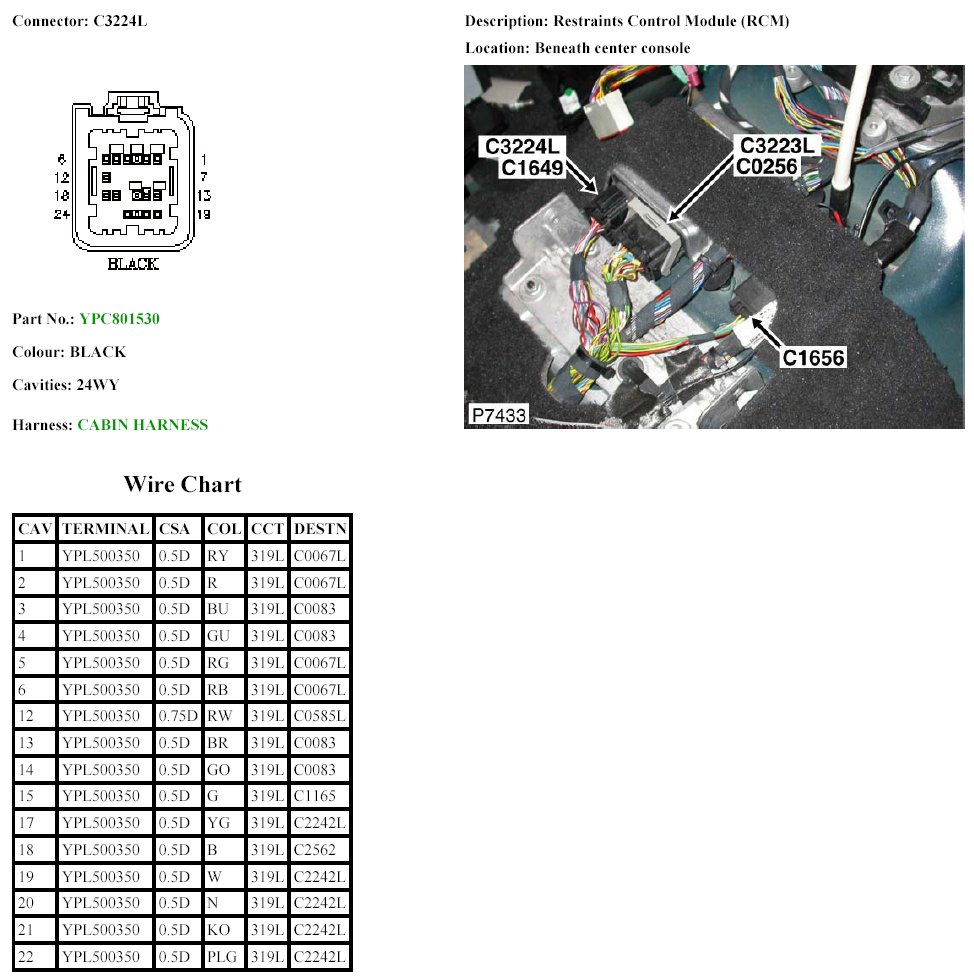

C3224L:
