Home
>>
Land Rover
>>
2009
>>
Range Rover Sport (LS) V8-4.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

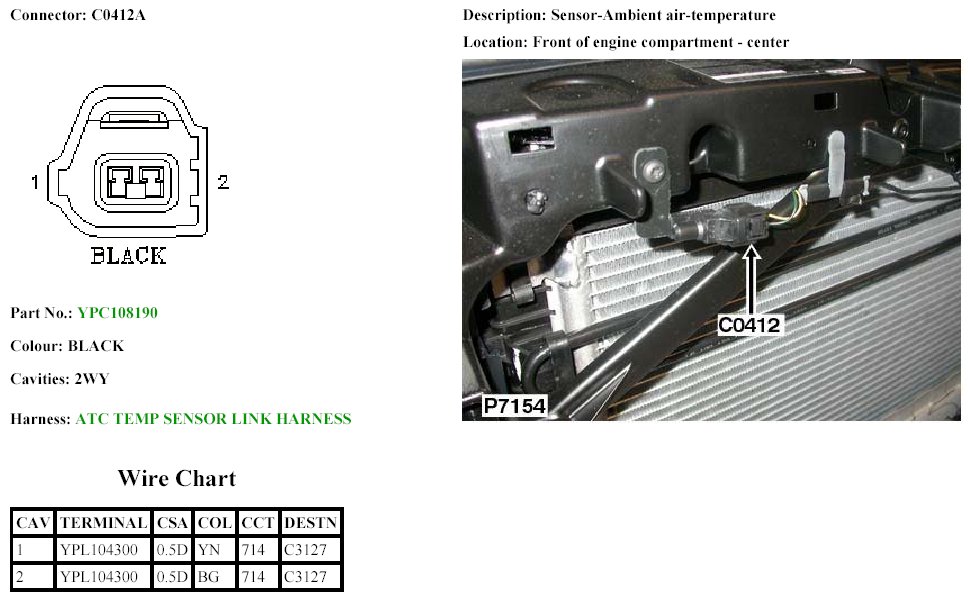

Ambient Temperature Sensor / Switch HVAC
Ambient Temperature Sensor / Switch HVAC
Sensor-Ambient Air-Temperature
C0412:
C0412A:
