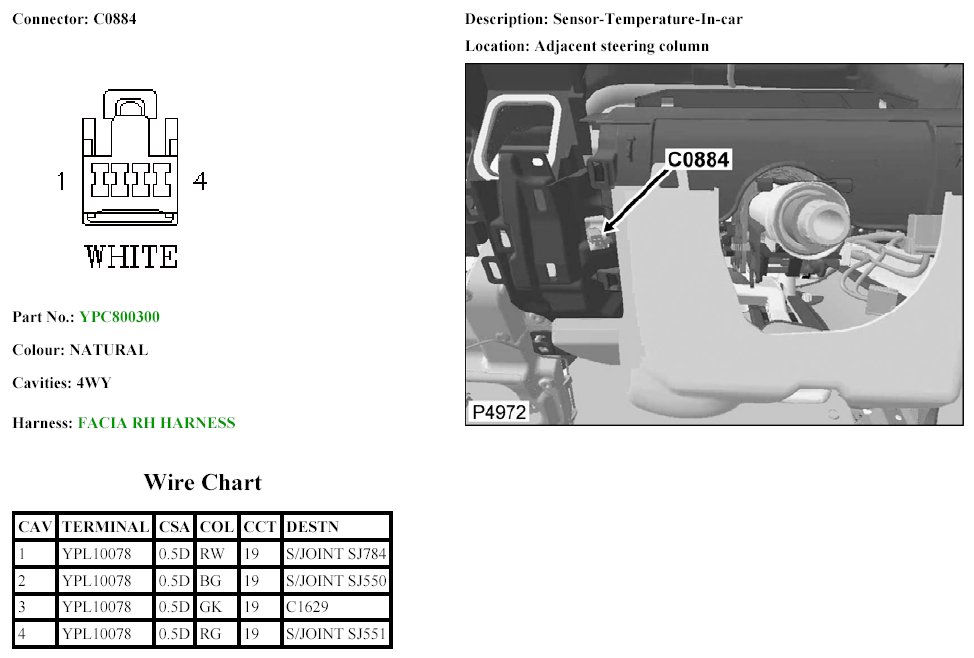

Cabin Temperature Sensor / Switch
Cabin Temperature Sensor / Switch
Sensor-Temperature-In-Car
C0884:
