Home
>>
Land Rover
>>
2009
>>
Range Rover Sport (LS) V8-4.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

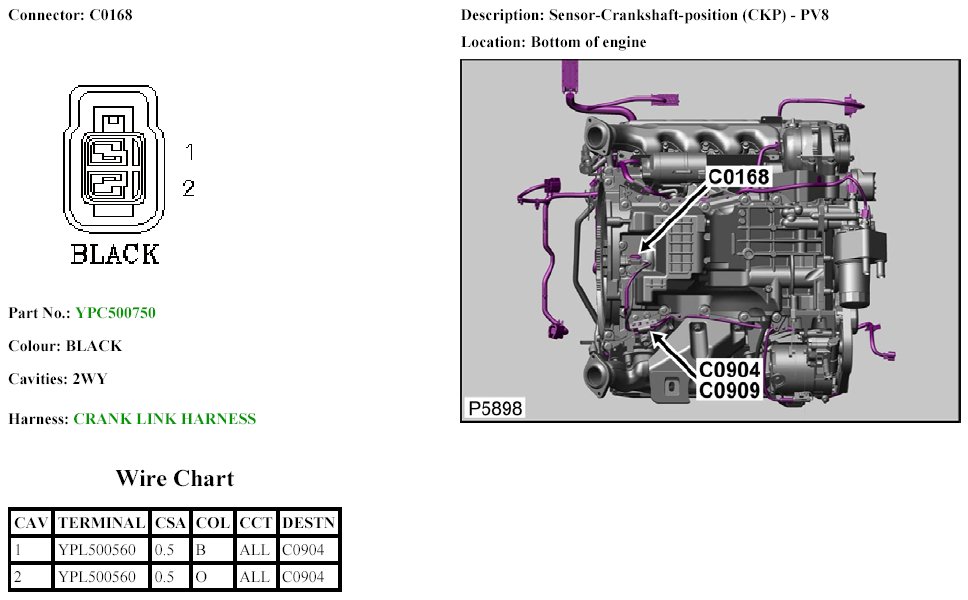

Crankshaft Position Sensor
Crankshaft Position Sensor
Sensor-Crankshaft-Position (CKP)-PV8
C0168:
