Transmission Temperature Sensor/Switch, A/T
Transmission Temperature Sensor/Switch, A/T

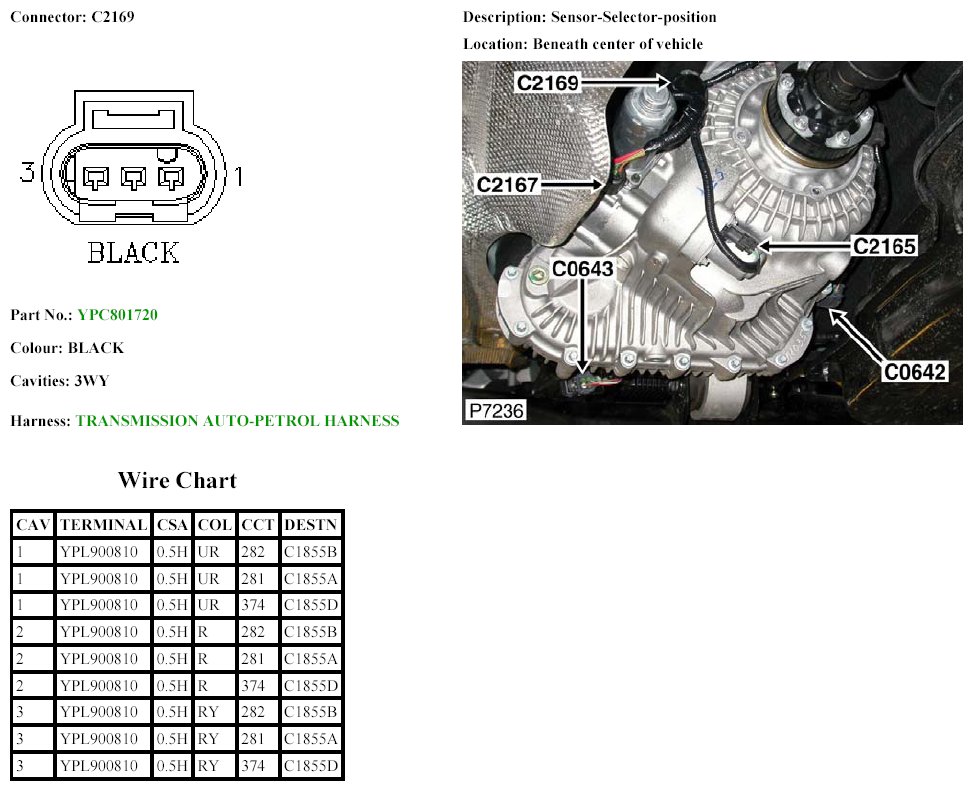

Sensor-Selector-Position
C2169:
