Body - Liftgate Latch Squeak/Rattle

LTB00424NAS1
25 JAN 2012

SECTION: 501
Liftgate Latch 'Squeak' / 'Rattle'

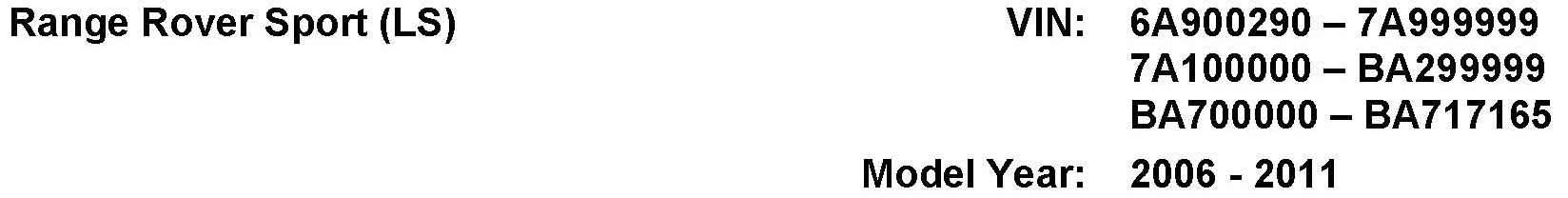

AFFECTED VEHICLE RANGE:

CONDITION SUMMARY:

Situation:
A 'squeak' or 'rattle' may be evident from the liftgate latch. This may be caused by the latch plastic-rubber buffers.

Action:
In the event of a customer concern of the above, refer to the Repair Procedure outlined below to replace the plastic buffers with rubber buffers.

PARTS:

LR036130 Rubber buffers Qty: 2

TOOLS:
Refer to Workshop Manual for any required special tools

WARRANTY:





NOTE:
Repair procedures are under constant review, and therefore times are subject to change; those quoted here must be taken as guidance only. Always refer to DDW to obtain the latest repair time.

DDW requires the use of causal part numbers. Labor only claims must show the causal part number with a quantity of zero.

Normal Warranty policies and procedures apply

REPAIR PROCEDURE

INSTALL LIFTGATE LATCH RUBBER BUFFERS

1. Open the liftgate.





2. Remove liftgate striker cover: (Figure 1) Release the two clips

NOTE:
Note the fitted position before removing.





3. Remove the two plastic-rubber buffers. (Figure 2)

4. Install two new rubber buffers. (Figure 2)

5. Install the liftgate striker cover. (Figure 1)

6. Close the liftgate.
