Windshield Washer Reservoir: Service and Repair

Windshield Washer Reservoir

Service Repair No - 84.10.03

Removal

1. Remove the front bumper.
2. Remove the windshield washer reservoir filler neck.

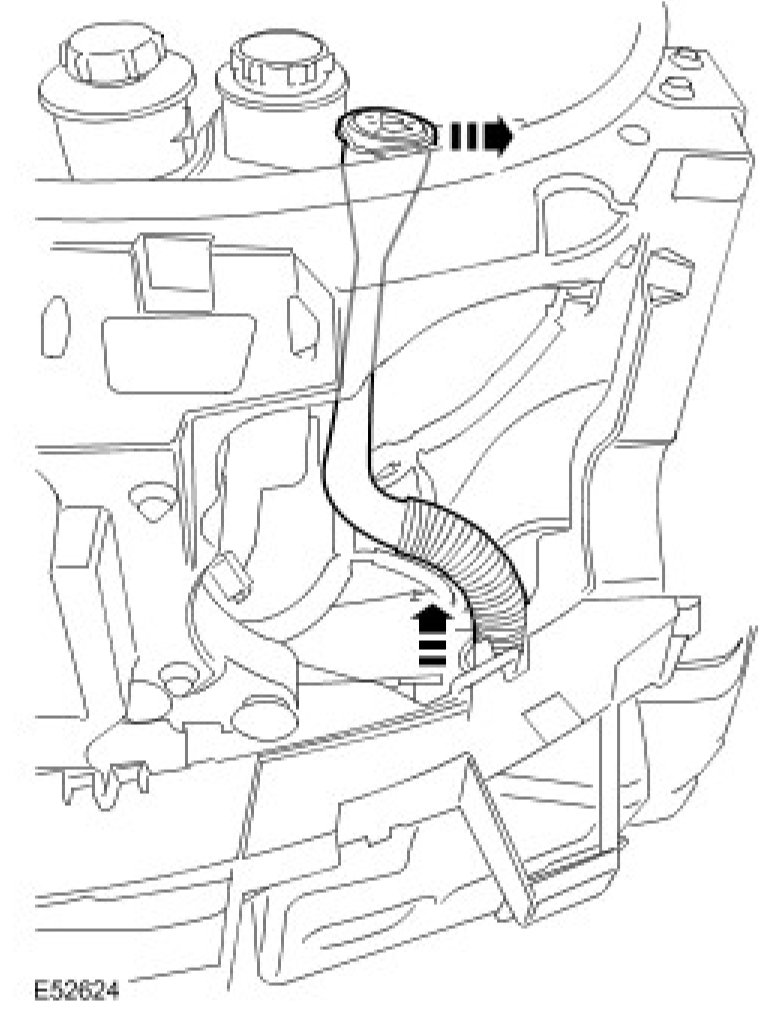

^ Release the washer reservoir filler neck from the coolant tank clip.
^ Remove and discard the seal.





NOTE: Some fluid spillage is inevitable during this operation.

3. Remove the windshield washer reservoir.

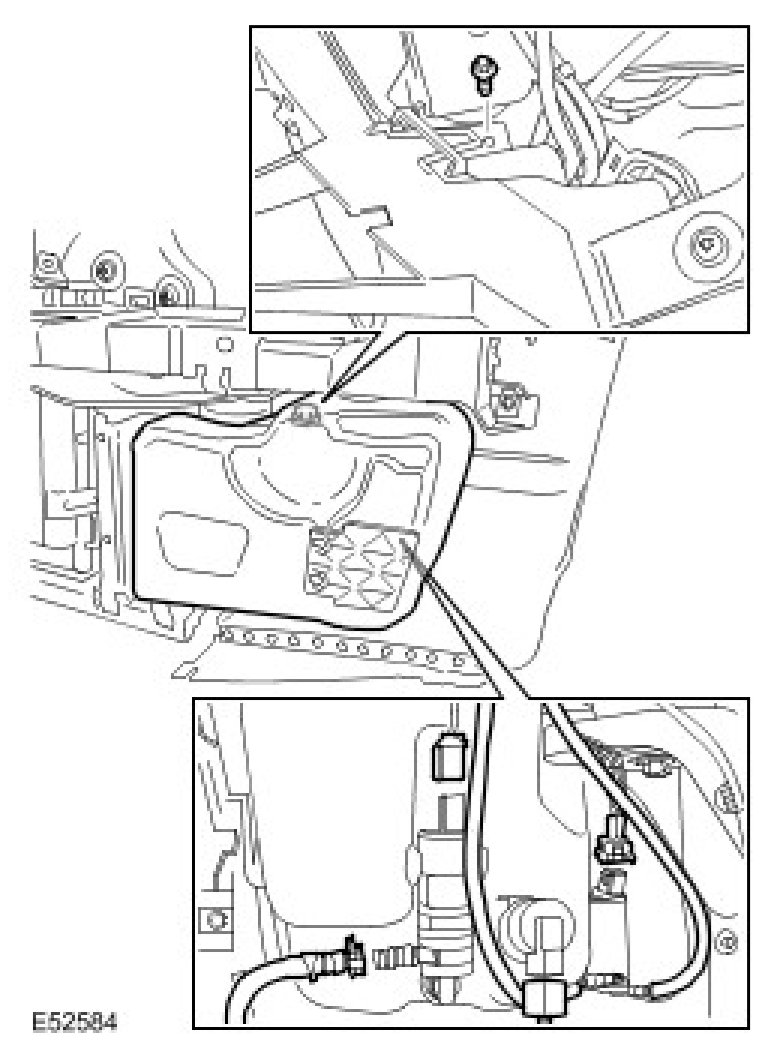

^ Remove the bolt. Drain the washer reservoir fluid.
^ Disconnect the 3 electrical connectors.
^ Disconnect the 3 hoses.





NOTE: Do not disassemble further if the component is removed for access only.

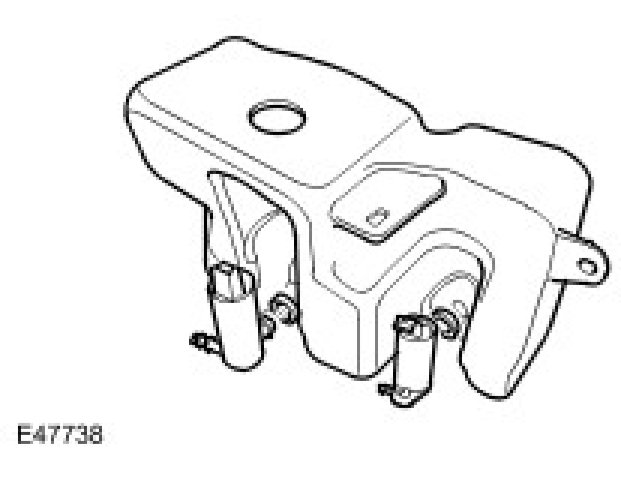

4. Remove the windshield washer pump.
^ Discard the O-ring seal.
5. Remove the headlamp washer pump.
^ Discard the O-ring seal.





Installation

1. Install the windshield washer pump.
^ Install a new O-ring seal.
2. Install the headlamp washer pump.
^ Install a new O-ring seal.
3. Install the windshield washer reservoir.
^ Connect and secure the electrical connectors.
^ Connect the hoses.
^ Install the bolt and tighten to 10 Nm (7 lb.ft).
4. Install the windshield washer reservoir filler neck.
^ Secure in the clip.
5. Install the front bumper.
