Cabin Air Filter / Purifier: Service and Repair

Pollen Filter

Removal

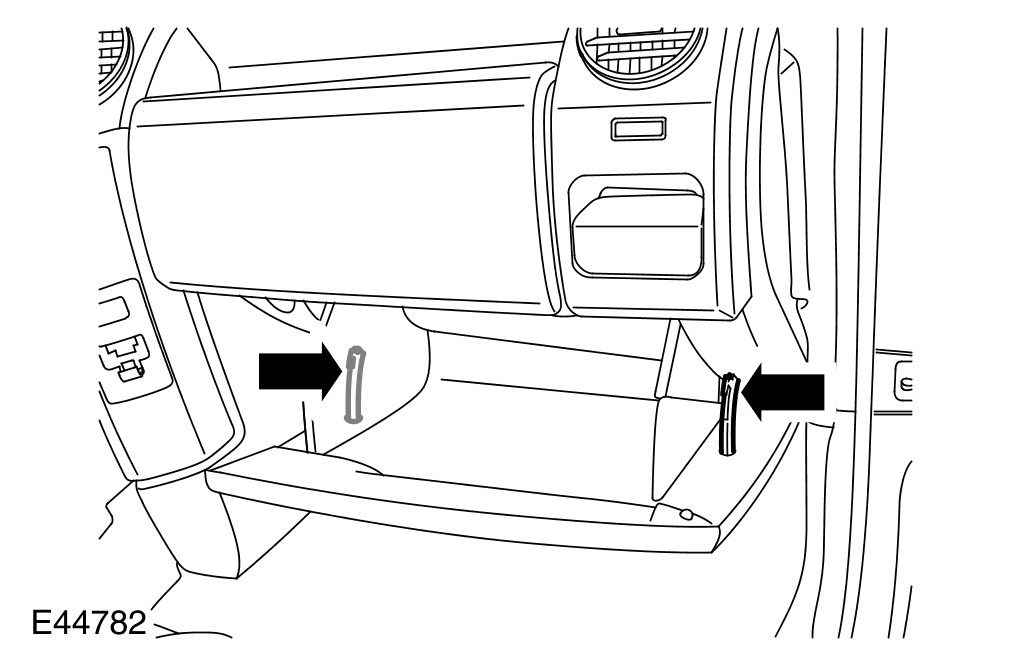

1 Open the glove compartment to the service condition.
- Release the glove compartment latch stops.




2 Remove the pollen filter housing cover.
3 Remove the pollen filter.

Installation
1 To install, reverse the removal procedure.
- Clean the component mating faces.
