Symptom Related Diagnostic Procedures

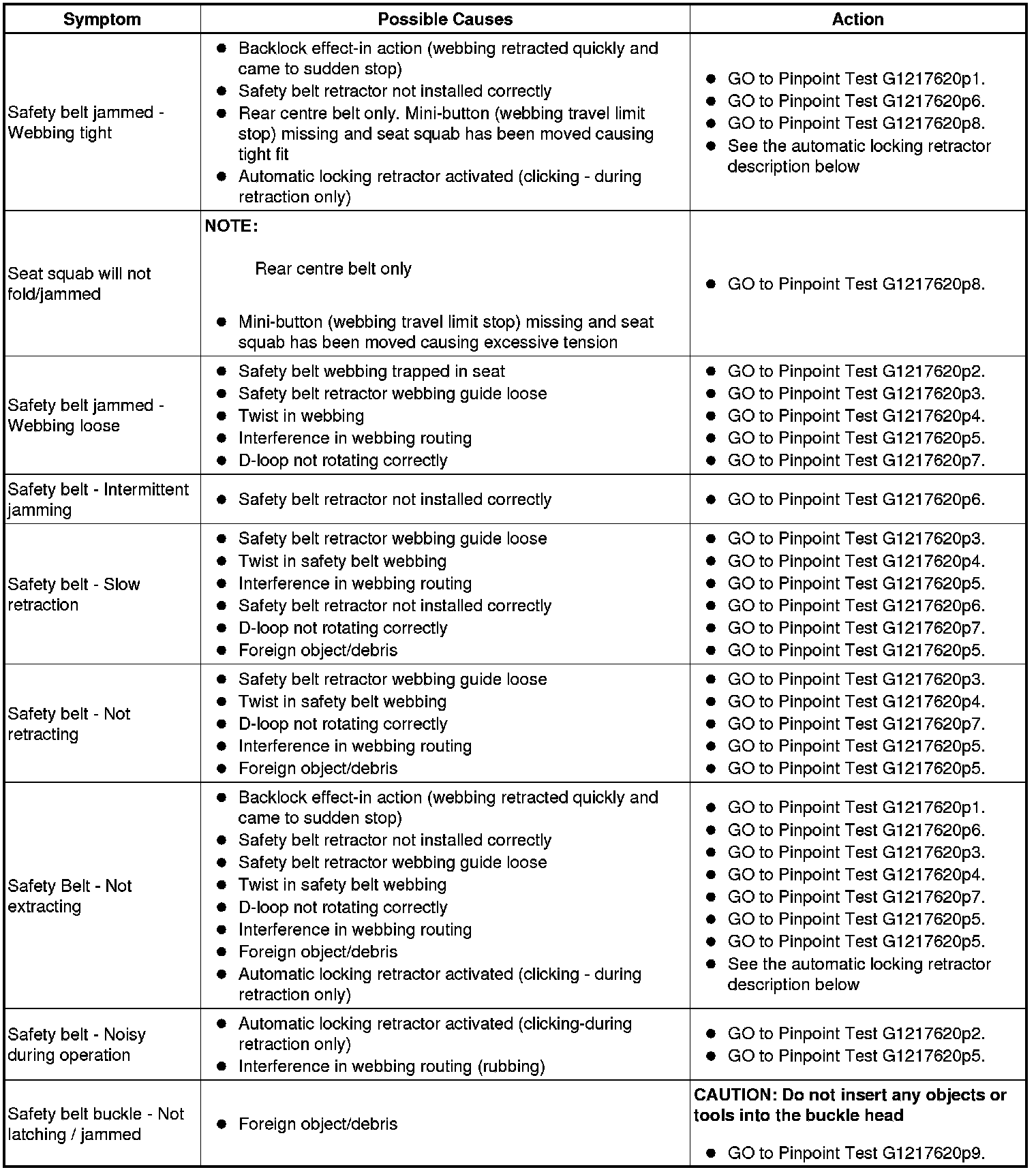

Symptom Chart for Safety Belt Rows 1, 2 and 3






DTC Index
For a list of diagnostic trouble codes that could be logged on this vehicle, please refer to A L L Diagnostic Trouble Codes (DTCs) A L L Diagnostic Trouble Codes ( DTC ). or for removal and installation/description and operation see Section Seat Belt Systems.
