Headlamp Washer Spray Nozzle: Service and Repair

Headlamp Washer Jet

Removal
1 Disconnect the battery ground cable. For additional information, refer to Specifications Service and Repair
2 Remove the front fog lamp. For additional information, refer to Front Fog Lamp Service and Repair

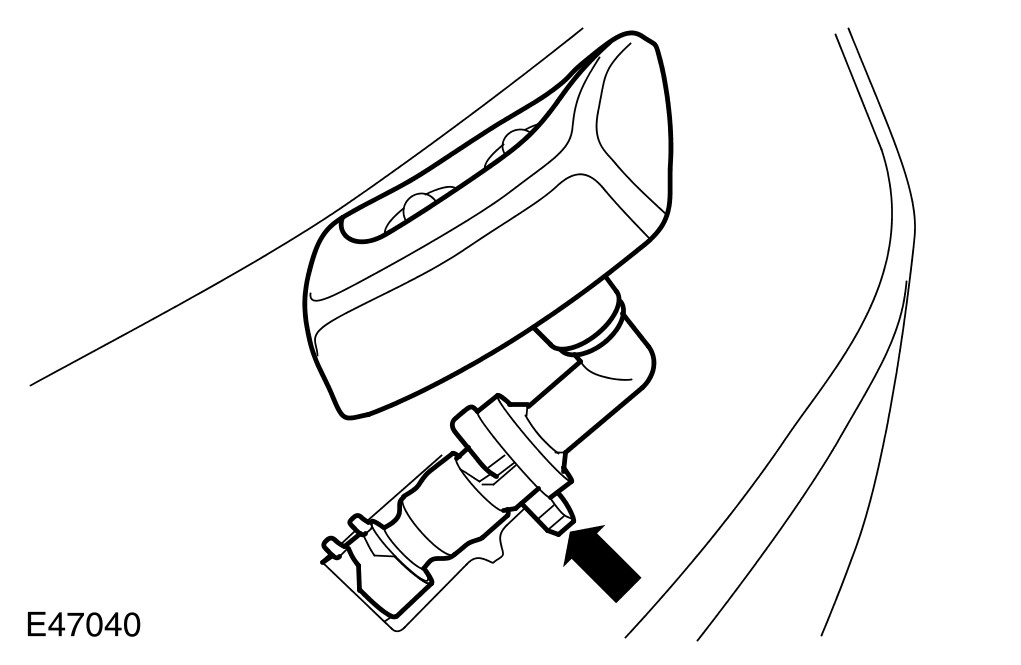

3 Release the washer jet assembly.
- Release the clip.




4 Remove the washer jet.
- Release the hose clip and disconnect the hose.

Installation
1 To install, reverse the removal procedure.
