Floor Console Stowage Compartment

Floor Console Stowage Compartment

Removal

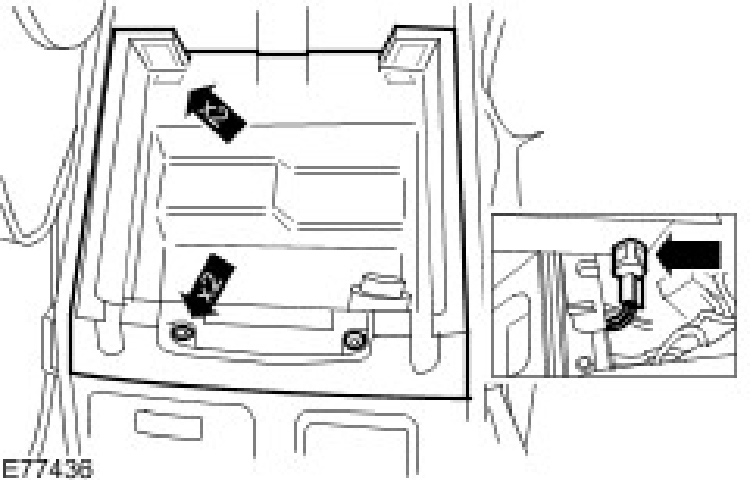

1. Remove the floor console stowage compartment.
^ Open the floor console stowage compartment lid.
^ Remove the 2 screws.
^ Using a suitable tool, carefully release the 2 clips.
^ Disconnect the cigar lighter electrical connector.





NOTE: Do not disassemble further if the component is removed for access only.

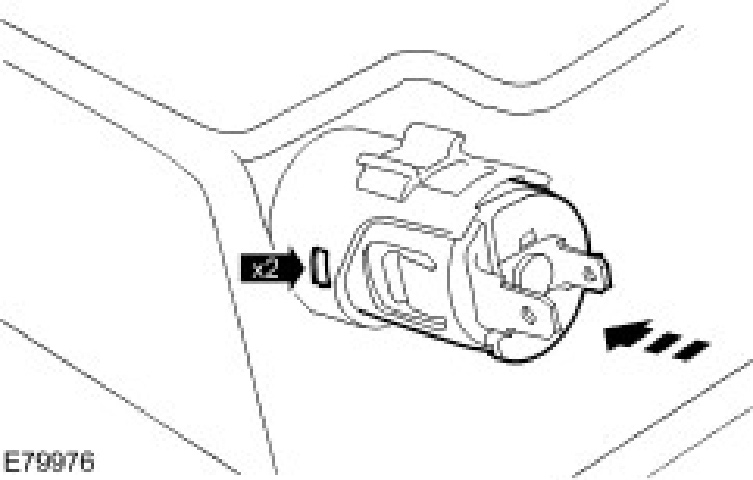

2. Remove the cigar lighter assembly.
^ Remove the cigar lighter.
^ With extreme care release the 2 clips and remove the cigar lighter inner housing.
^ Remove the cigar lighter housing.





Installation

1. Install the cigar lighter assembly.

CAUTION: Make sure the locating tangs are aligned.

2. Install the floor console stowage compartment.
^ Connect the cigar lighter electrical connector.
^ Secure the 2 clips.
^ Install the 2 screws.
^ Close the floor console stowage compartment lid.
