Land Rover
>>
2010
>>
Range Rover (LM) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
C3002 - C3394
>>

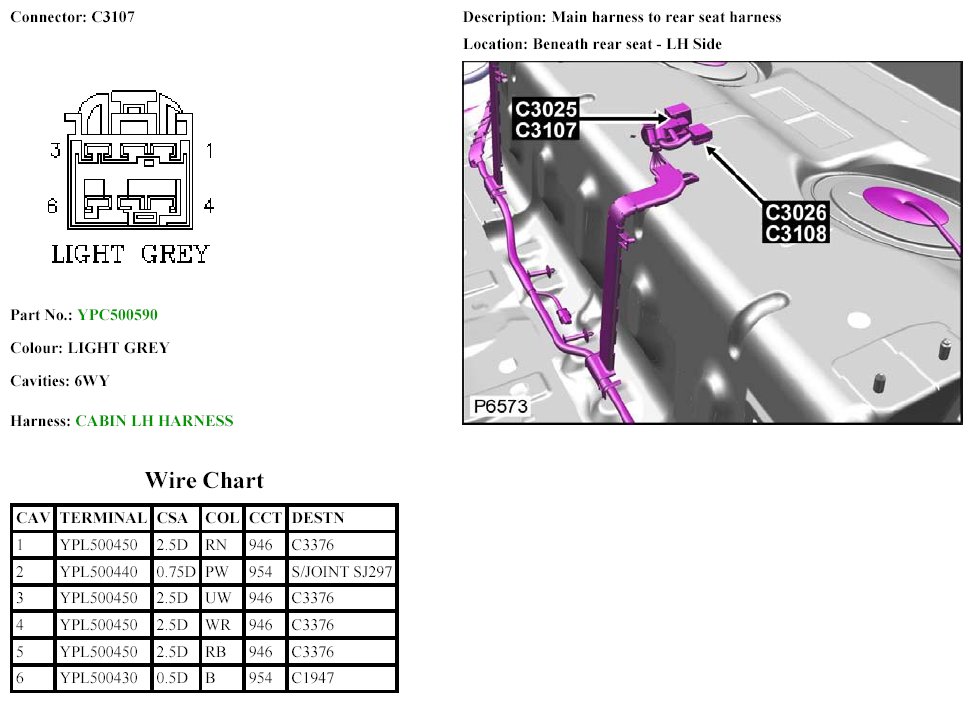

C3107
C3107
C3107
C3107:
