Symptom Related Diagnostic Procedures

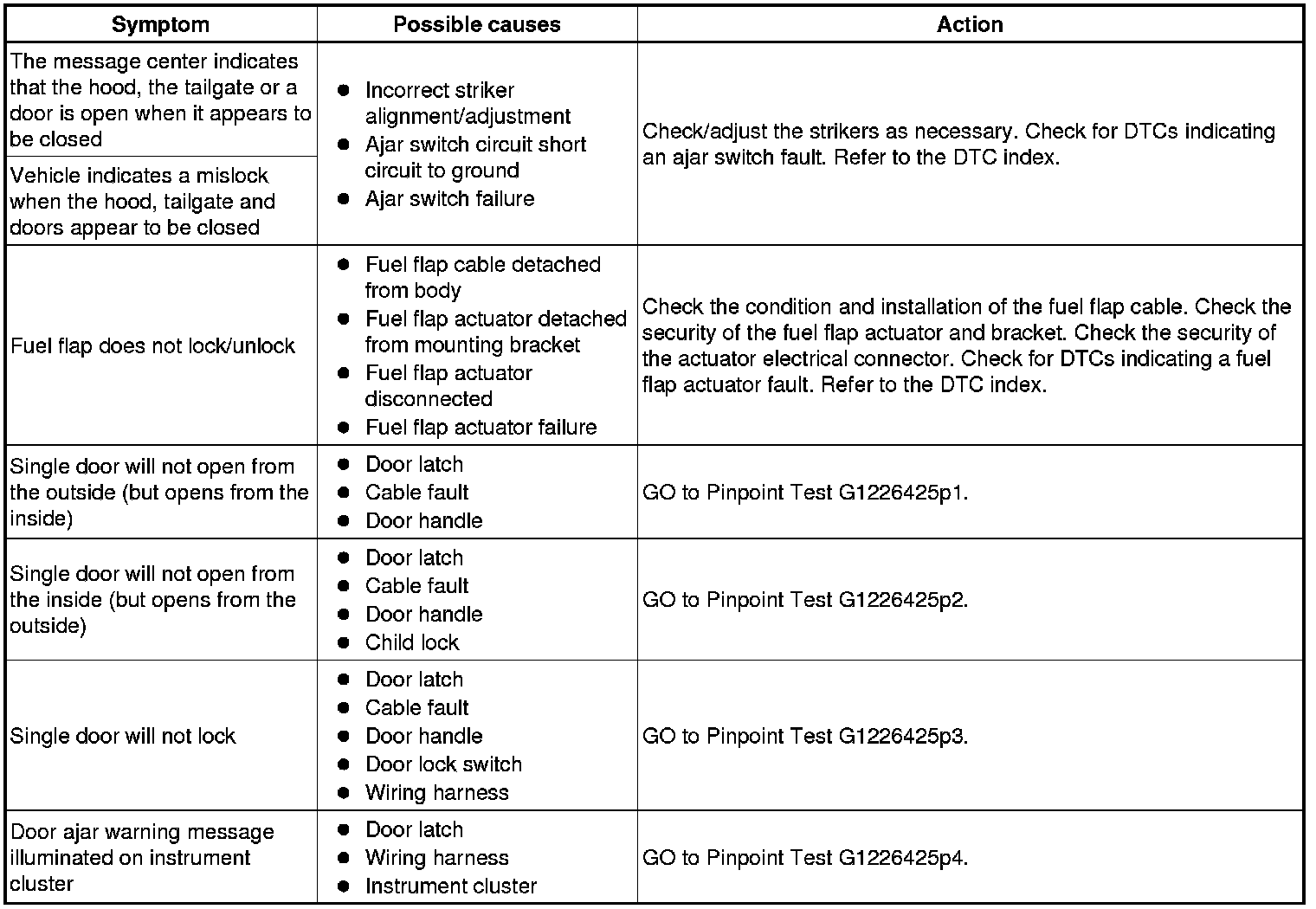

Symptom Chart






DTC Index
For a list of Diagnostic Trouble Codes (DTCs) that could be logged on this vehicle, please refer to A L L Diagnostic Trouble Codes ( DTC ) A L L Diagnostic Trouble Codes ( DTC ). For additional information, refer to Diagnostic Trouble Code (DTC) Index - DTC: Module Name: Central Junction Box Central Junction Box (CJB)
For additional information, refer to Diagnostic Trouble Code (DTC) Index - DTC: Module Name: Driver/Passenger Door Module Driver/Passenger Door Module (DDM/PDM)
For additional information, refer to Diagnostic Trouble Code (DTC) Index - DTC: Module Name: Remote Function Actuator Remote Function Actuator (RFA)
For additional information, refer to Diagnostic Trouble Code (DTC) Index - DTC: Module Name: Steering Column Lock Module Steering Column Lock Module (VIM)
