Symptom Related Diagnostic Procedures

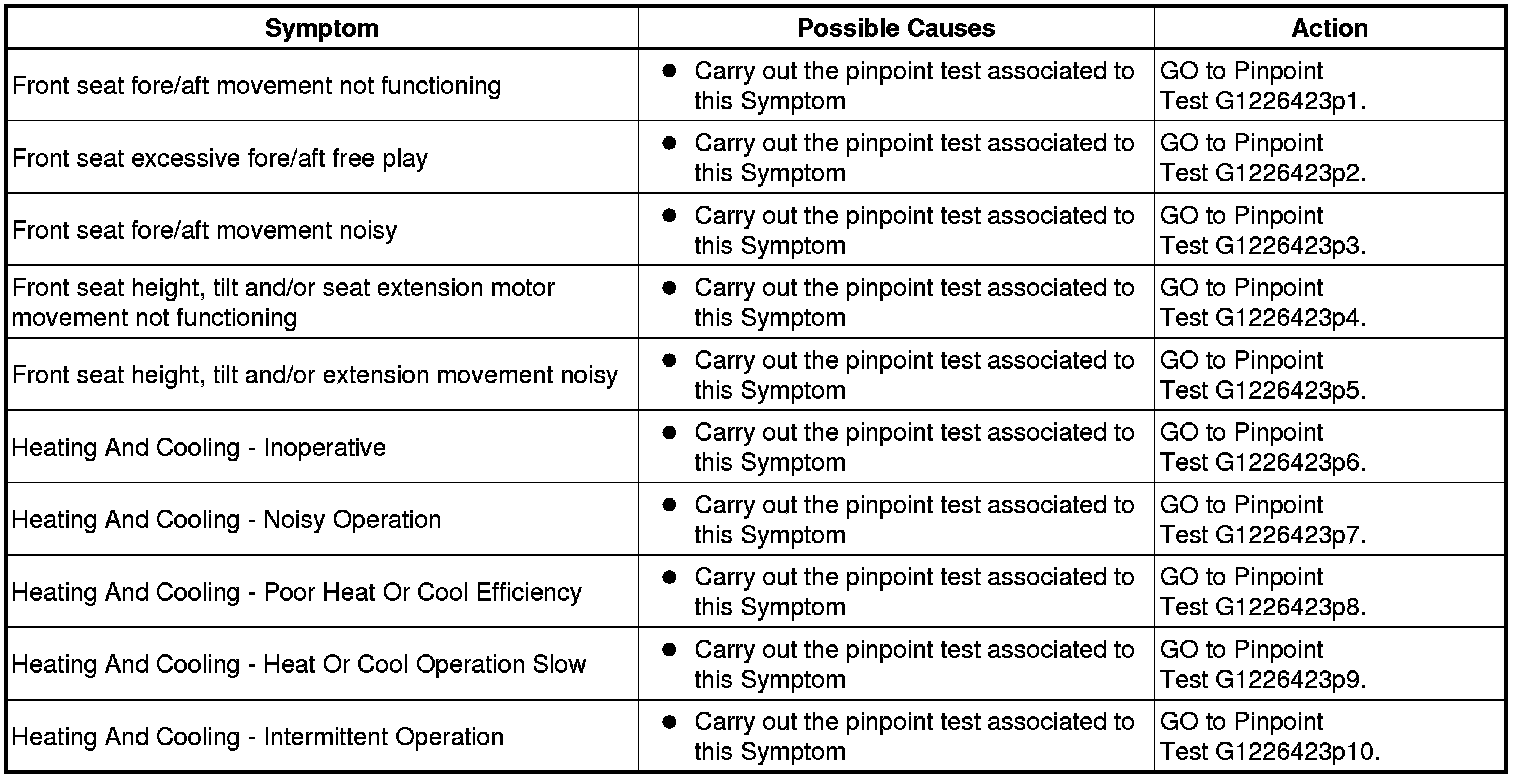

Symptom Chart







DTC Index
For a list of Diagnostic Trouble Codes (DTCs) that could be logged on this vehicle, please refer to A L L Diagnostic Trouble Codes ( DTC ) A L L Diagnostic Trouble Codes ( DTC ). For additional information, refer to Diagnostic Trouble Code (DTC) Index - DTC: Module Name: Driver/Passenger Front Seat Module Driver/Passenger Front Seat Module (DSM/PSM)
For additional information, refer to Diagnostic Trouble Code (DTC) Index - DTC: Module Name: Climate Controlled Seat Module - Front/Rear (SCME/SCMF) Module Name: Climate Controlled Seat Module - Front/Rear (SCME/SCMF)
