Operation CHARM
: Car repair manuals for everyone.
Home
>>
Land Rover
>>
2010
>>
Range Rover (LM) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
C3002 - C3394
>>

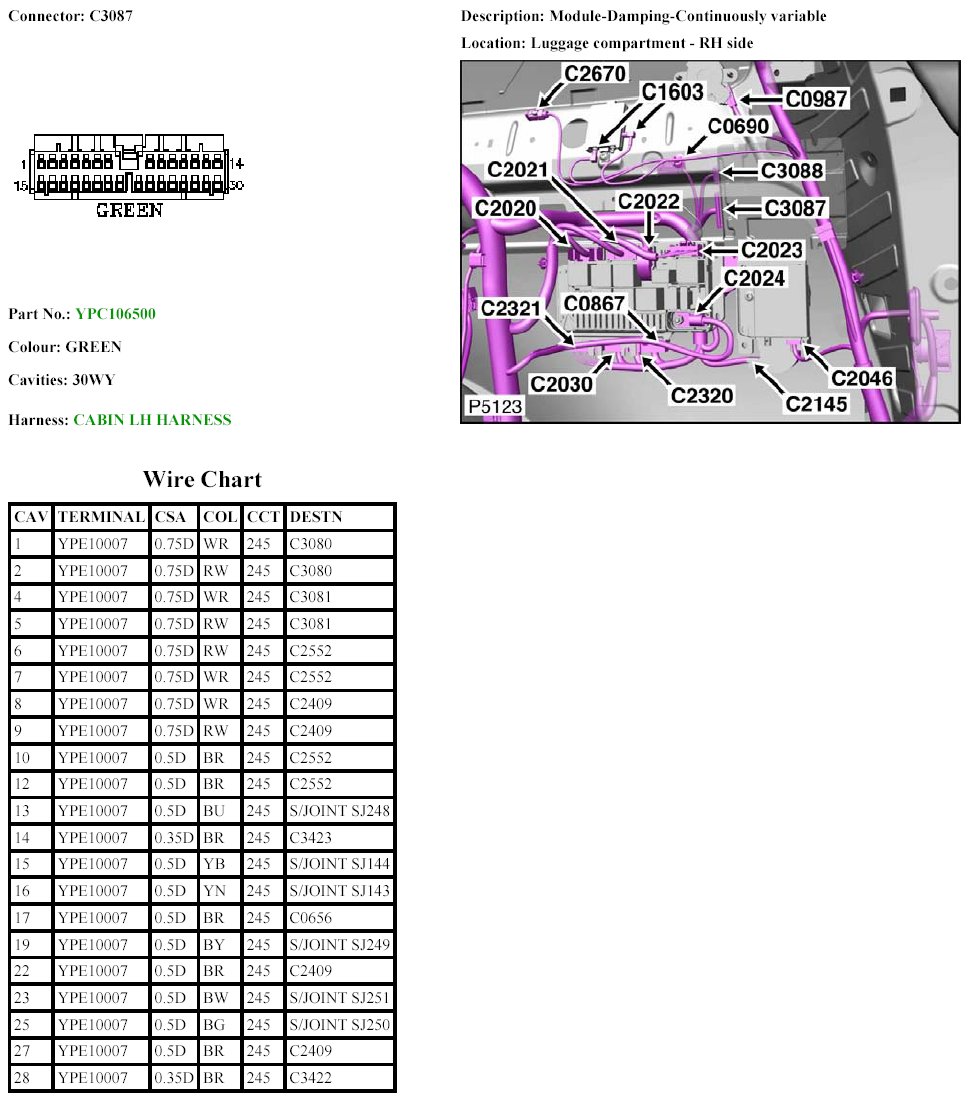

C3087
C3087
C3087
C3087:
