Operation CHARM
: Car repair manuals for everyone.
Home
>>
Land Rover
>>
2010
>>
Range Rover (LM) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
C3509 - C3594
>>
C3594
C3594
C3594

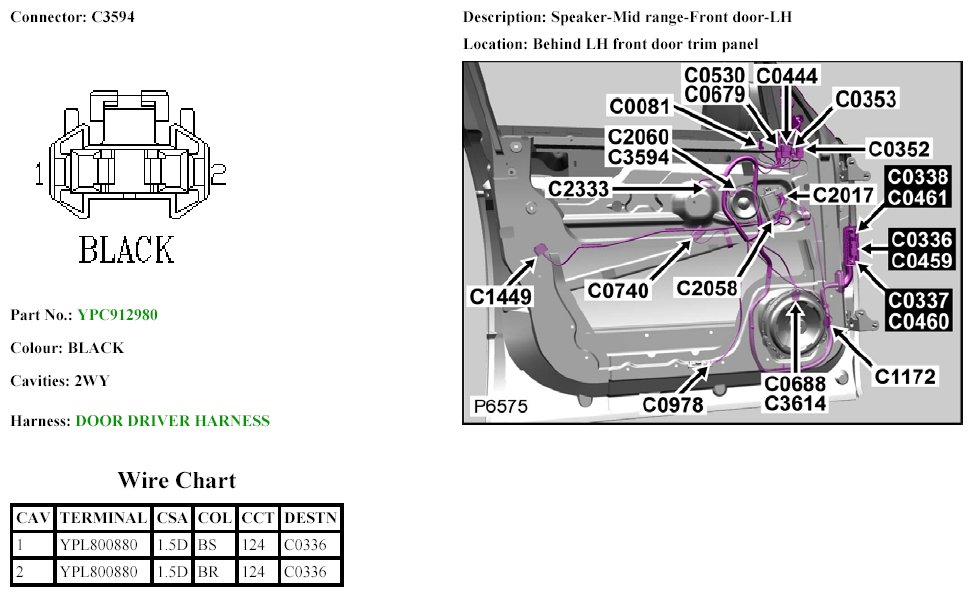

C3594:
