Includes Amplifier AUD4

Includes Amplifier AUD4

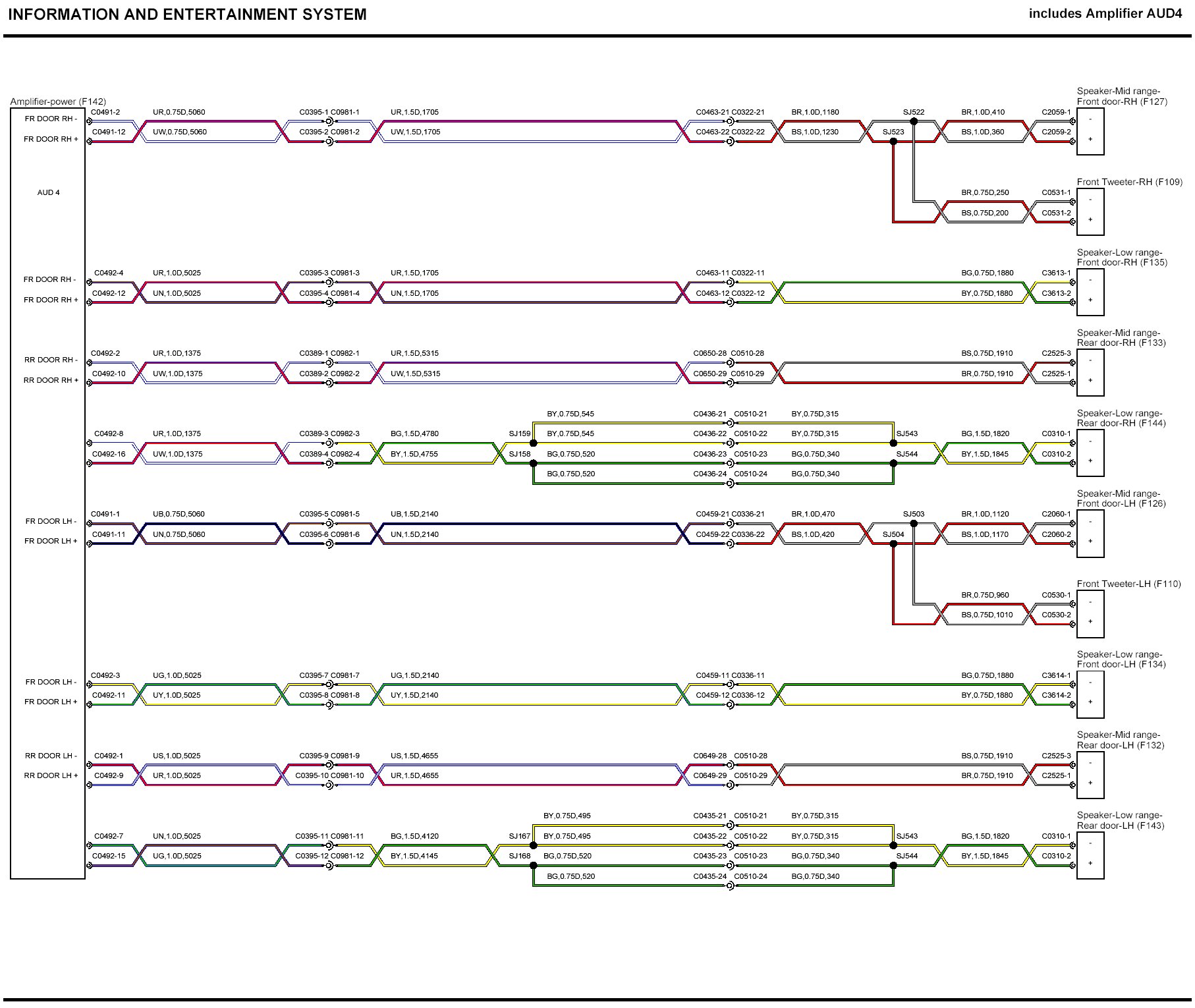

Includes Amplifier AUD4 (Sheet 1):

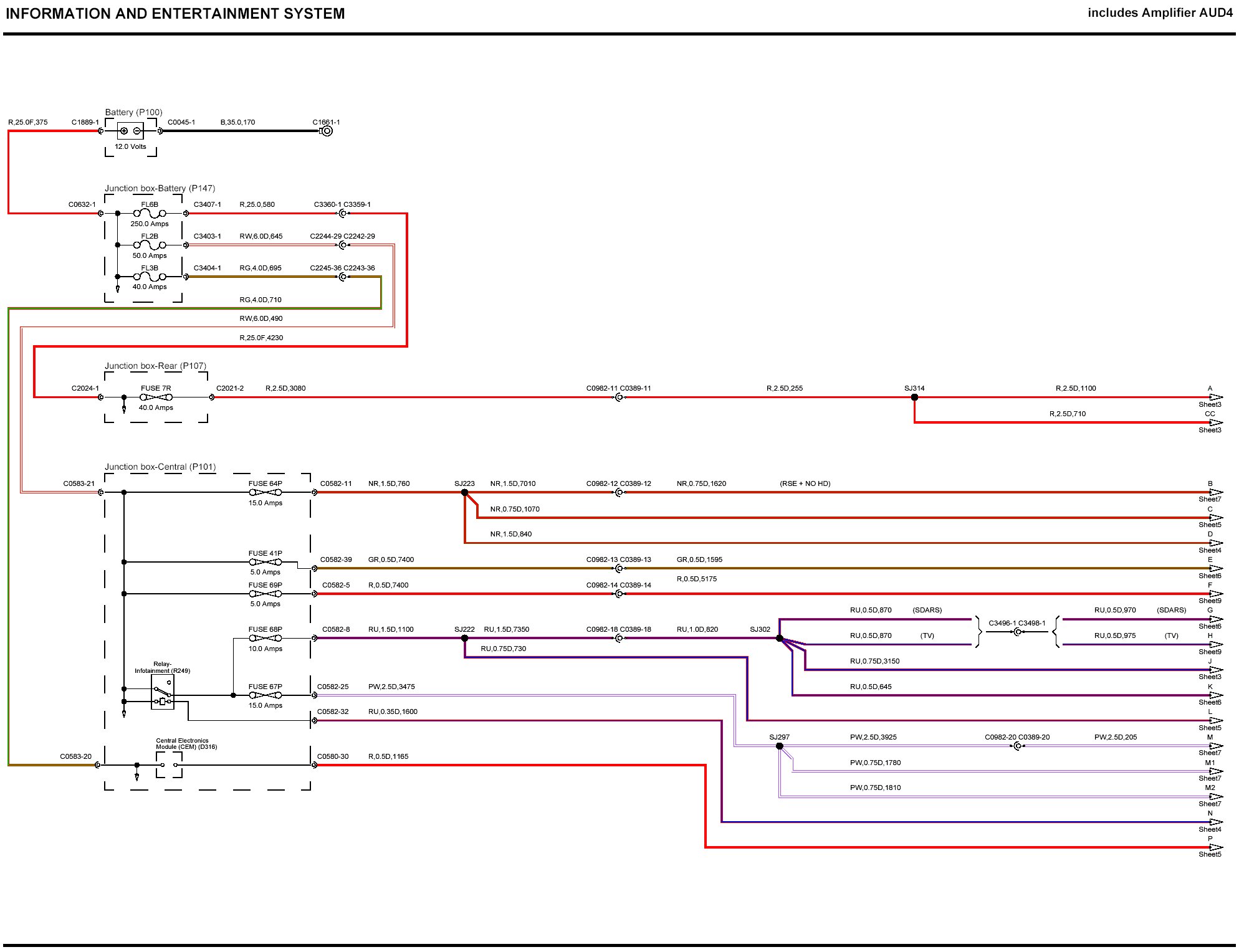

Includes Amplifier AUD4 (Sheet 2):

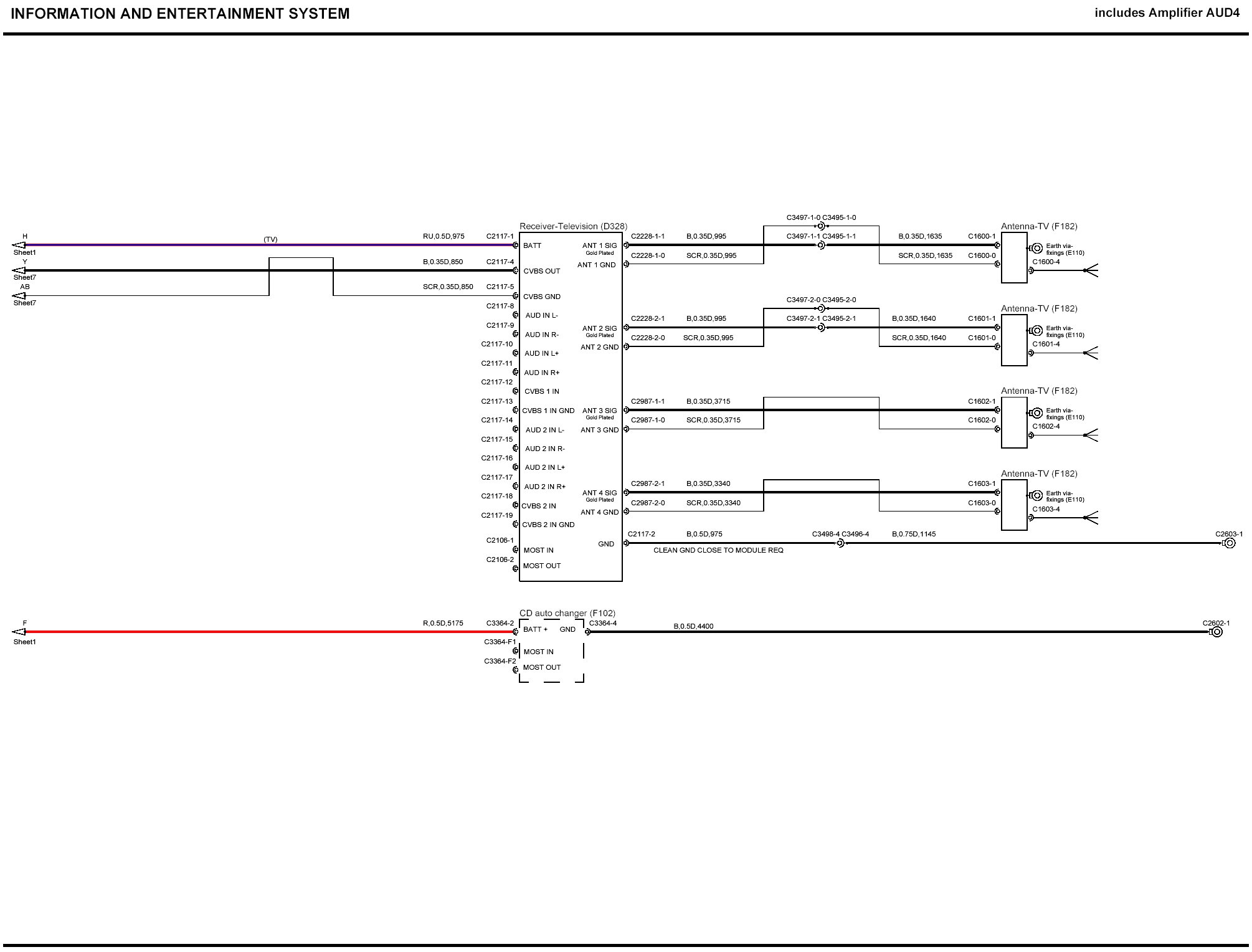

Includes Amplifier AUD4 (Sheet 3):

Includes Amplifier AUD4 (Sheet 4):

Includes Amplifier AUD4 (Sheet 5):

Includes Amplifier AUD4 (Sheet 6):

Includes Amplifier AUD4 (Sheet 7):

Includes Amplifier AUD4 (Sheet 8):

Includes Amplifier AUD4 (Sheet 9):

Locations: The location views for connectors and components depicted within these diagrams can be found via the connector's base number (i.e. C0570) at Vehicle/Locations/Connectors. Locations

Connector Views: The connector pin out views for connectors depicted within these diagrams can be found via the connector's base number (i.e. C0570) at Vehicle/Diagrams/Connector Views. Connector Views
