Seat Belt Systems: Description and Operation

Safety Belt System

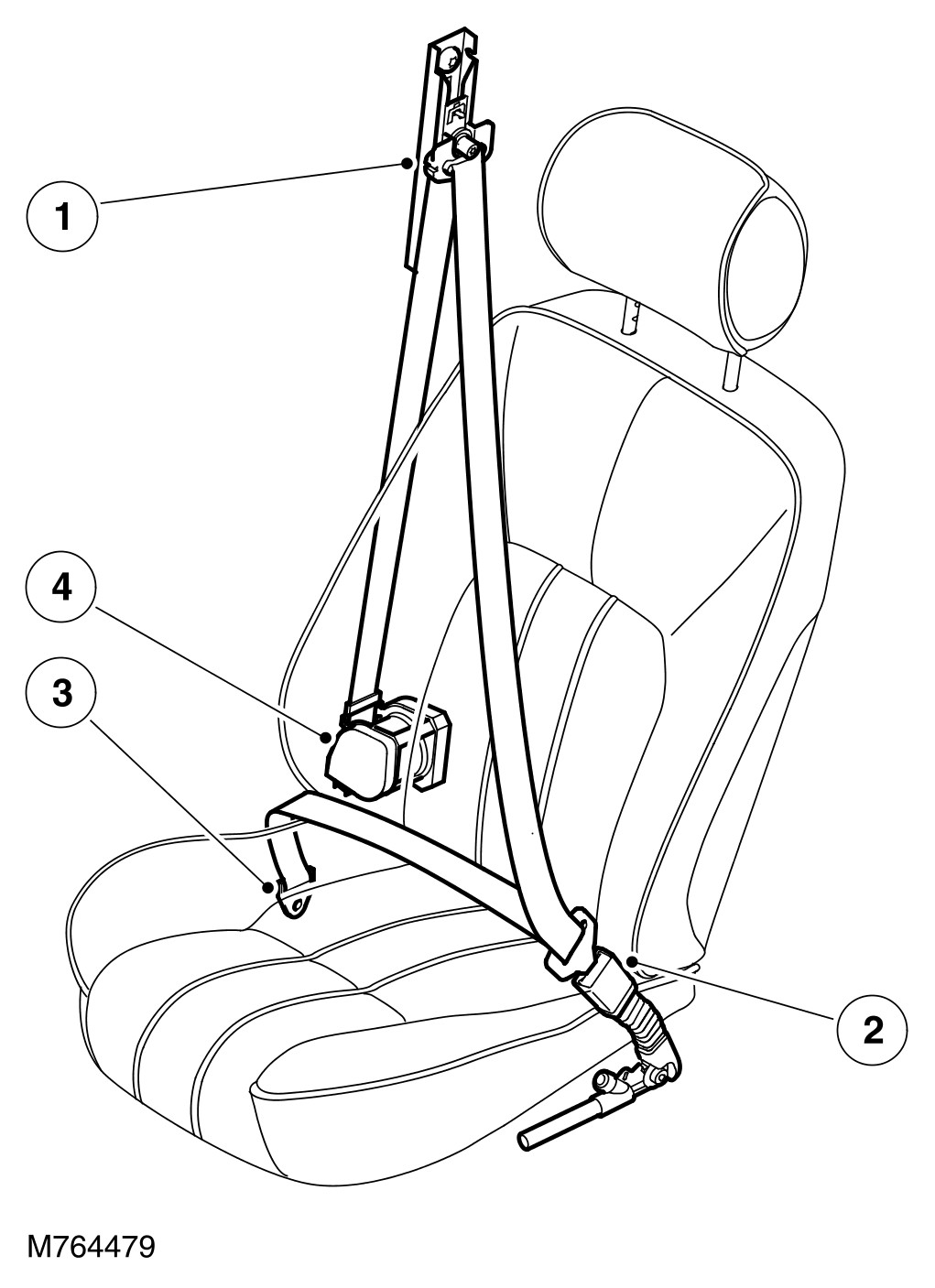

COMPONENT LOCATIONS - FRONT SAFETY BELTS









COMPONENT LOCATIONS - REAR SAFETY BELTS









GENERAL
Three point safety belts are installed at all seat positions. The front safety belts incorporate load limiters and have height adjusters on the B/C pillar. The rear outer safety belts have height adjusters on the D pillar.
On NAS vehicles, all passenger safety belts are the ALR (automatic locking retractor) type for use with child restraint systems.
A safety belt warning lamp and associated message are activated on the instrument cluster, by the LCM (lighting control module), at the beginning of each ignition cycle, as a reminder to fasten safety belts.
Child safety seat tether anchors are installed on the back of each rear outer seat.
