Removal and Replacement

Battery

Removal

NOTE:
Removal steps in this procedure may contain installation details.

NOTE:
Some variation in the illustrations may occur, but the essential information is always correct.

All vehicles
1 Secure the hood in the service position.

2
NOTE:
RHD illustration shown, LHD is similar.

3
NOTE:
RHD illustration shown, LHD is similar.

4
NOTE:
RHD illustration shown, LHD is similar.
TORQUE: 2 Nm

5
NOTE:
RHD illustration shown, LHD is similar.

6 TORQUE: 9 Nm

10 TORQUE: 9 Nm

11
NOTE:
Make sure that this component is installed to the noted removal position.

12
NOTE:
Disconnect the ground cable first.
TORQUE: 6 Nm

13
NOTE:
LHD illustration shown, RHD is similar.

Right-hand drive vehicles

14 TORQUE: 9 Nm

Left-hand drive vehicles

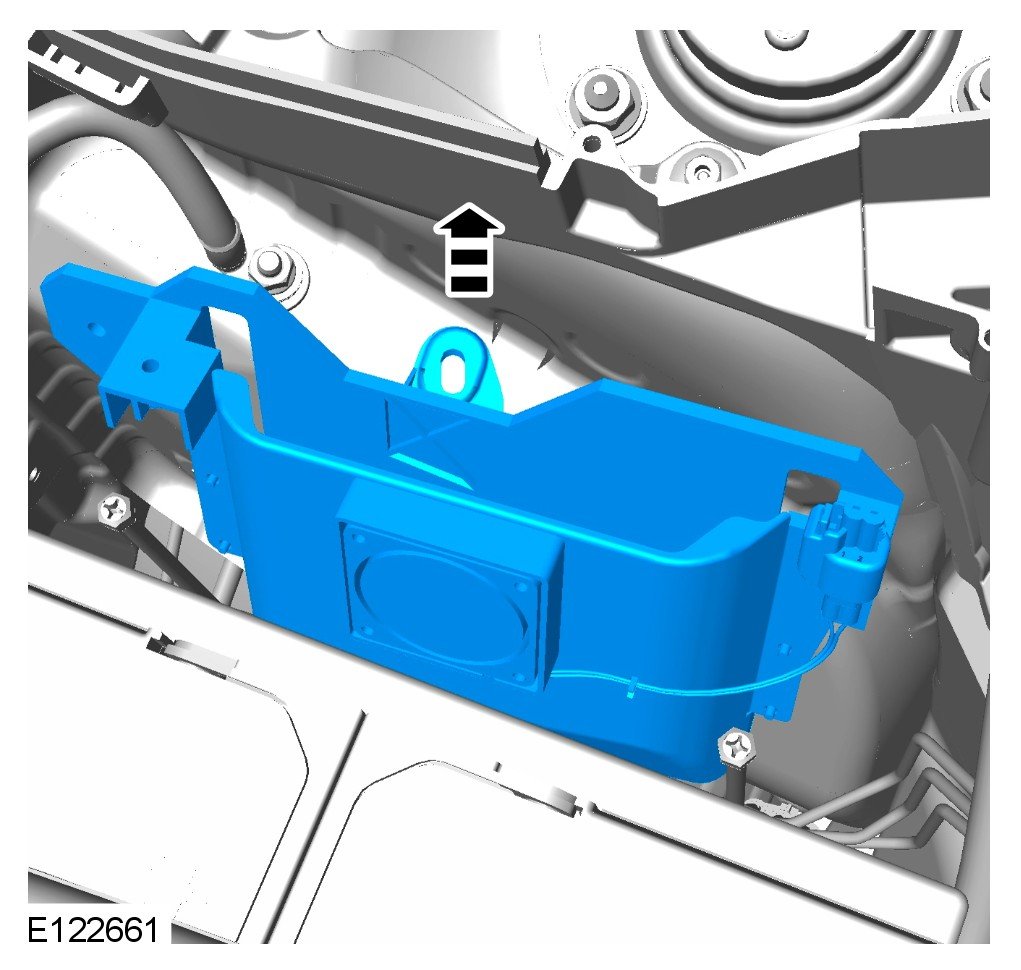

15
CAUTION: Make sure the component is aligned as shown.

All vehicles

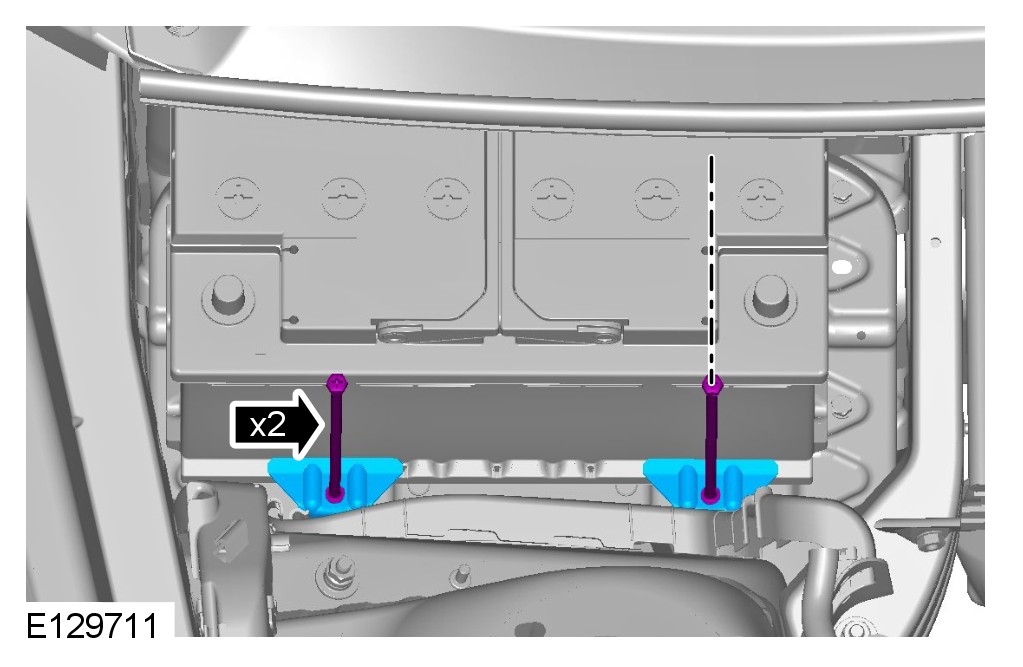

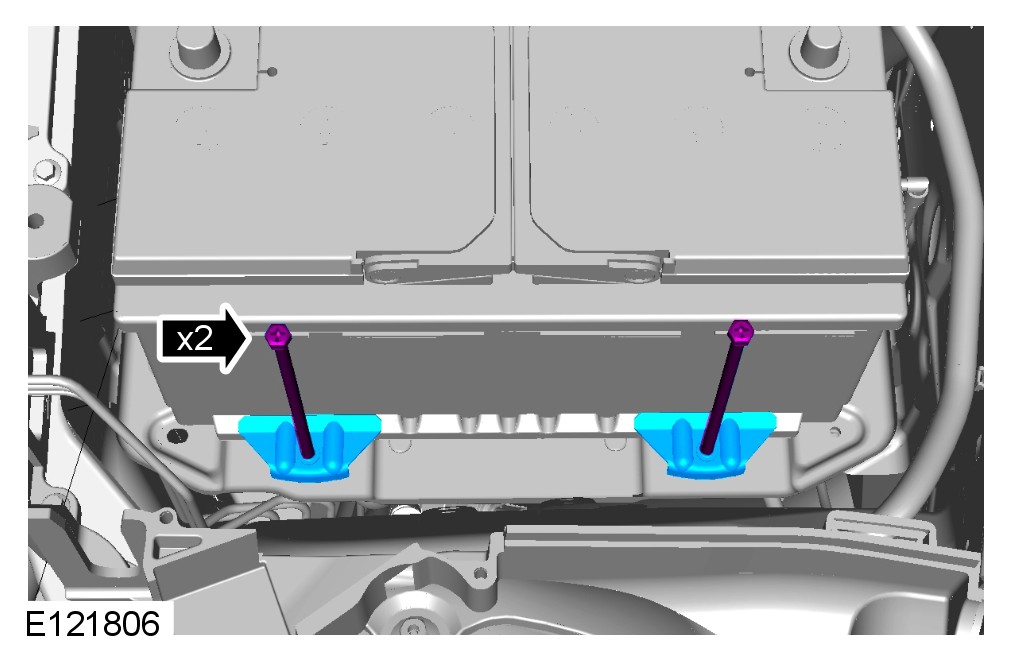

16
CAUTION: Make sure that the battery monitoring system (BMS) module wiring harness does not get caught beneath the battery securing clamp.
CAUTION: Make sure that the battery is positioned fully outboard on the battery tray and that no harnesses or hoses are trapped before securing the battery with the bolts.
NOTE:
RHD illustration shown, LHD is similar.

Installation
1 To install, reverse the removal procedure.
